Using the EK 500 G4
39
Using the EK 500 G4
These sections contain detailed information about using the EK 500 G4.
You can find information about installing the EK 500 under “Using the
EK 500 G4”.

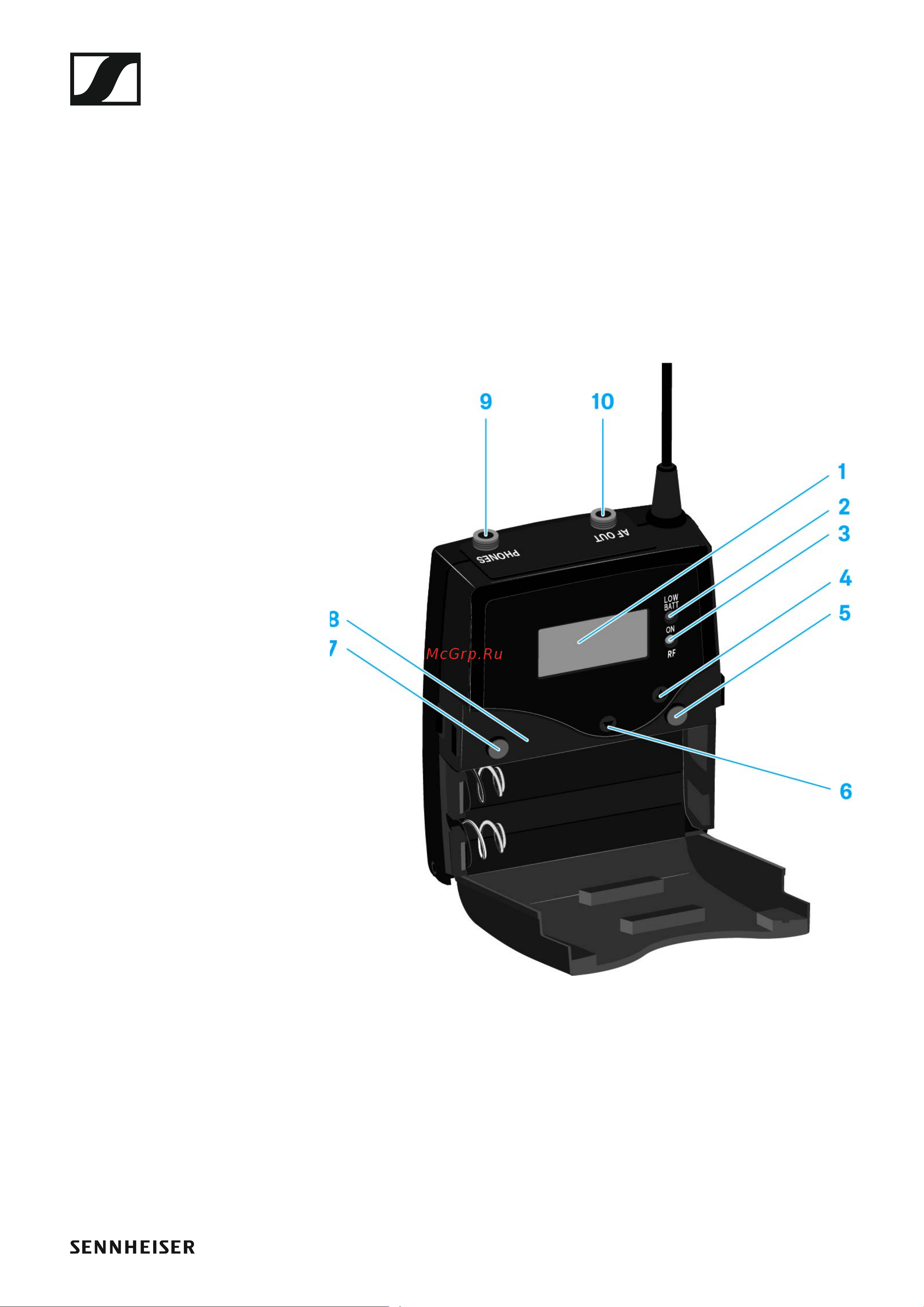

Operating elements of the EK 500 G4 diversity re-
ceiver
►
1 Display panel
• See “Displays on the EK 500 G4 display panel”
2 Operation and battery indicator, red LED
• illuminated = ON
See “Switching the EK 500 G4 on and off”
•flashing = LOW BATTERY
See “Inserting and removing the batteries/rechargeable batteries”
3 Wireless reception indicator, green LED
• illuminated = RF
