Using the SKM 500 G4
75

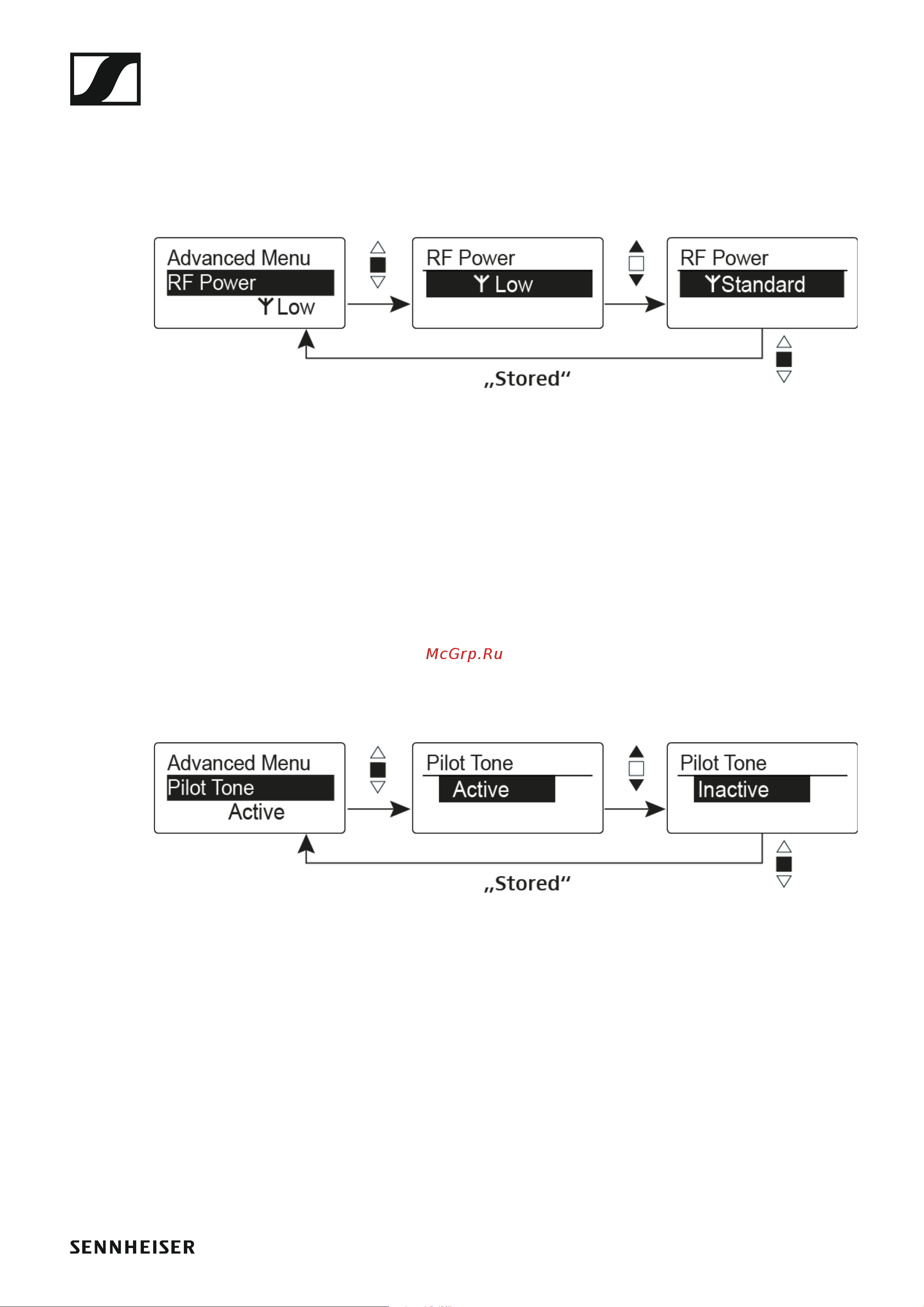

Advanced > RF Power menu item
• Configuring the transmission power
►
You can configure the transmission power in three steps in the RF Power
menu item. Please note the information at the following address:
General conditions and restrictions for the use of frequencies
Setting range:
Low: 10 mW
Standard: 30 mW
High: 50 mW
Advanced > Pilot Tone menu item
• Activating/deactivating pilot tone transmission
►
The pilot tone has an inaudible frequency that is sent from the transmitter
and evaluated by the receiver. It supports the receiver’s squelch function.
