Accessories
16
Additional accessories

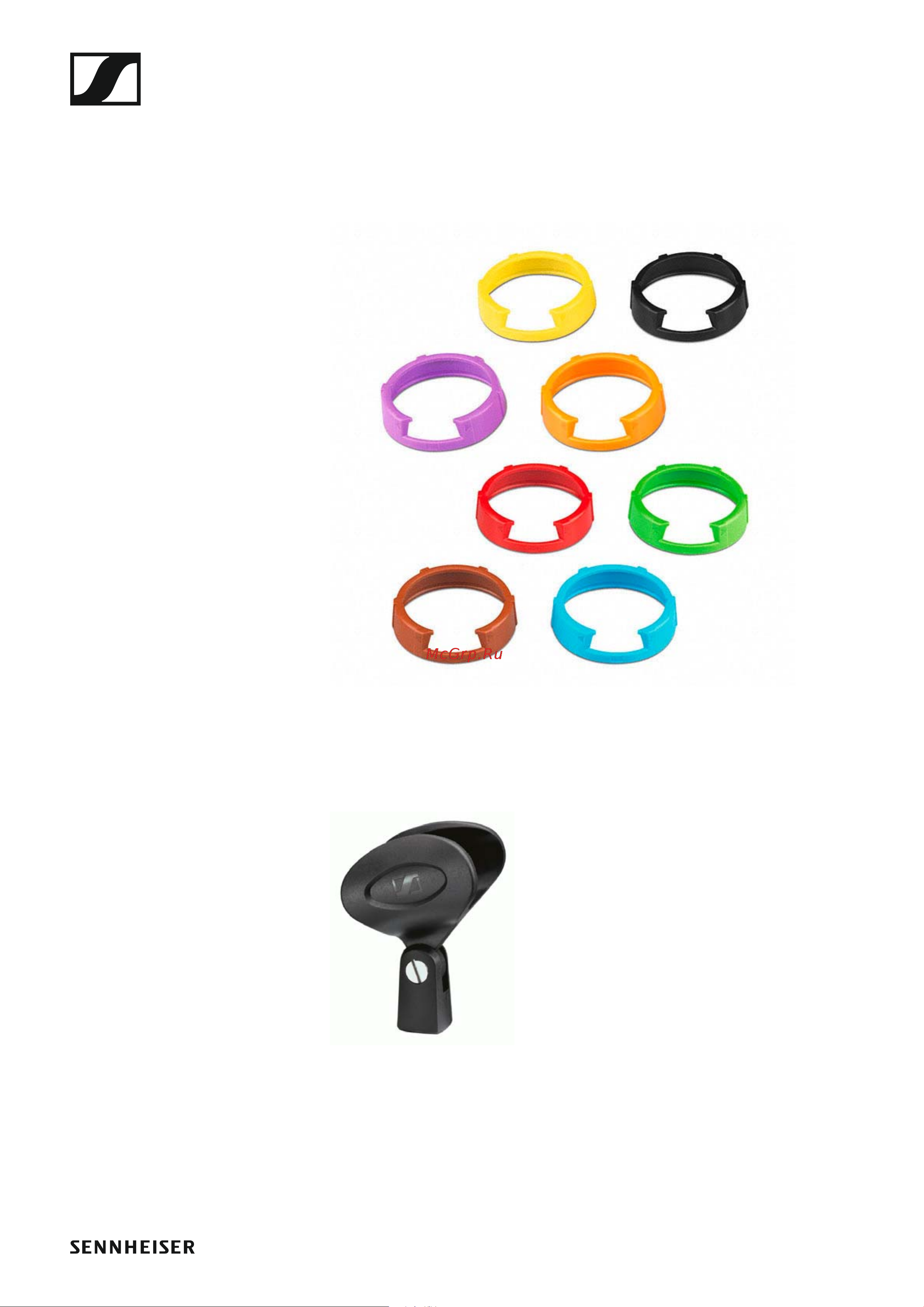

Color labeling set
• KEN 2, color labeling set for SKM handheld transmitters
Article no. 530195
►
Microphone clamp
• MZQ 1, microphone clamp for SKM handheld transmitters
Article no. 076670
►
