Using the EK 100 G4
47
Menu structure

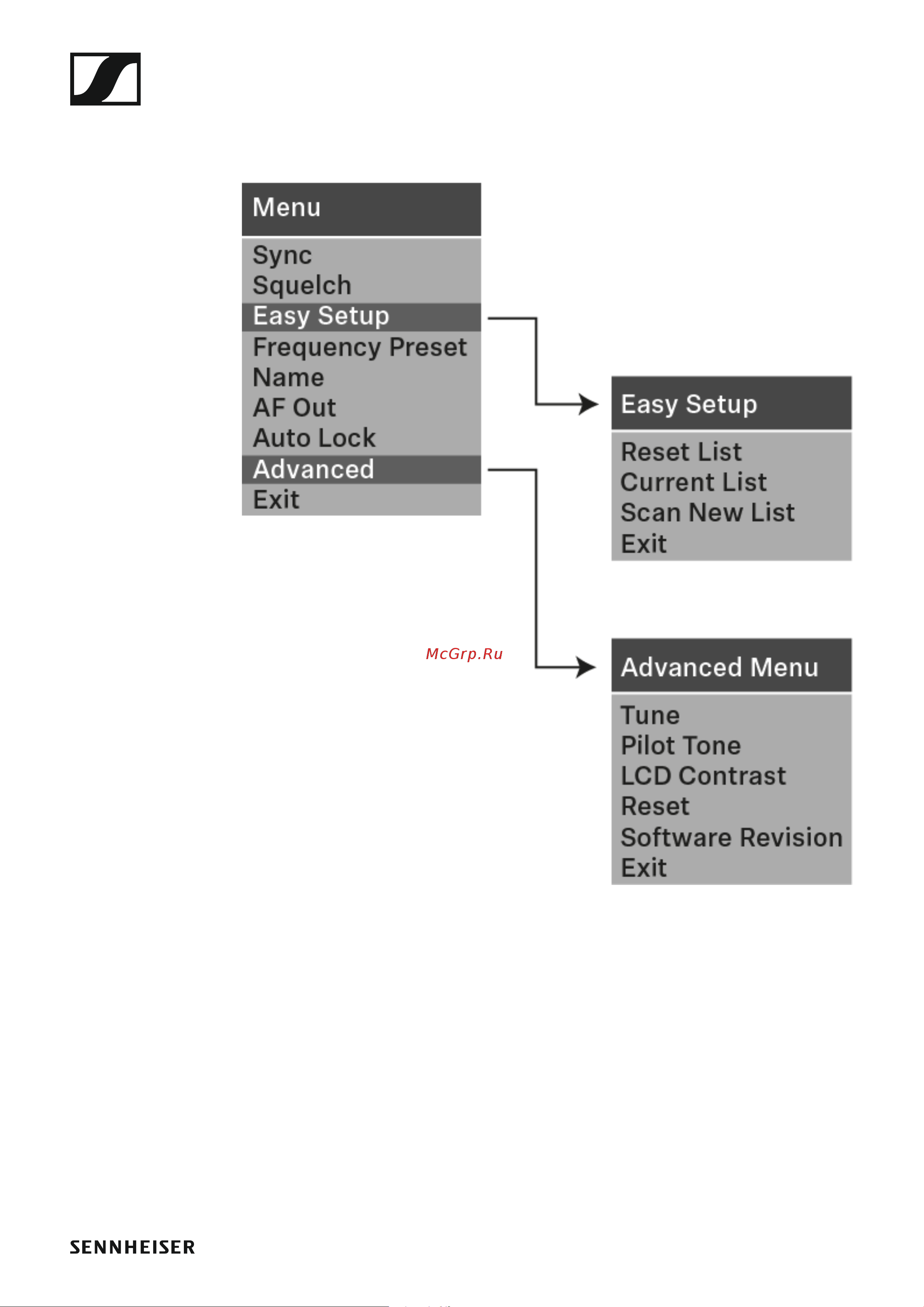

The figure shows the complete EK 100 G4 menu structure in an overview.
