Sennheiser EW 100 ENG G4-A [48/128] Menu structure
![Sennheiser EW 100 ENG G4-A [48/128] Menu structure](/views2/2008247/page48/bg30.png)
Using the EK 100 G4
47

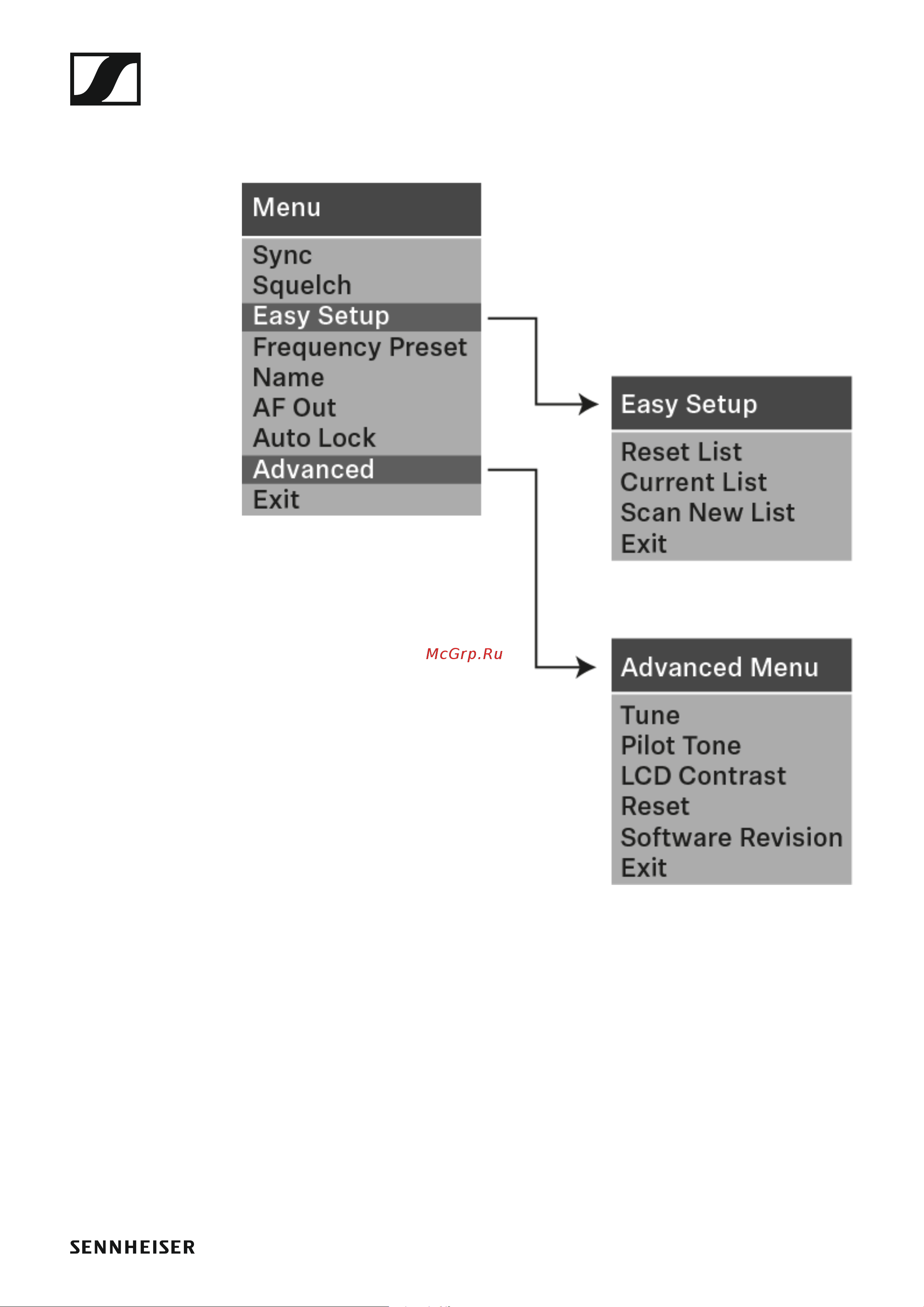

Menu structure
The figure shows the complete EK 100 G4 menu structure in an overview.
