Using the SKP 100 G4
94

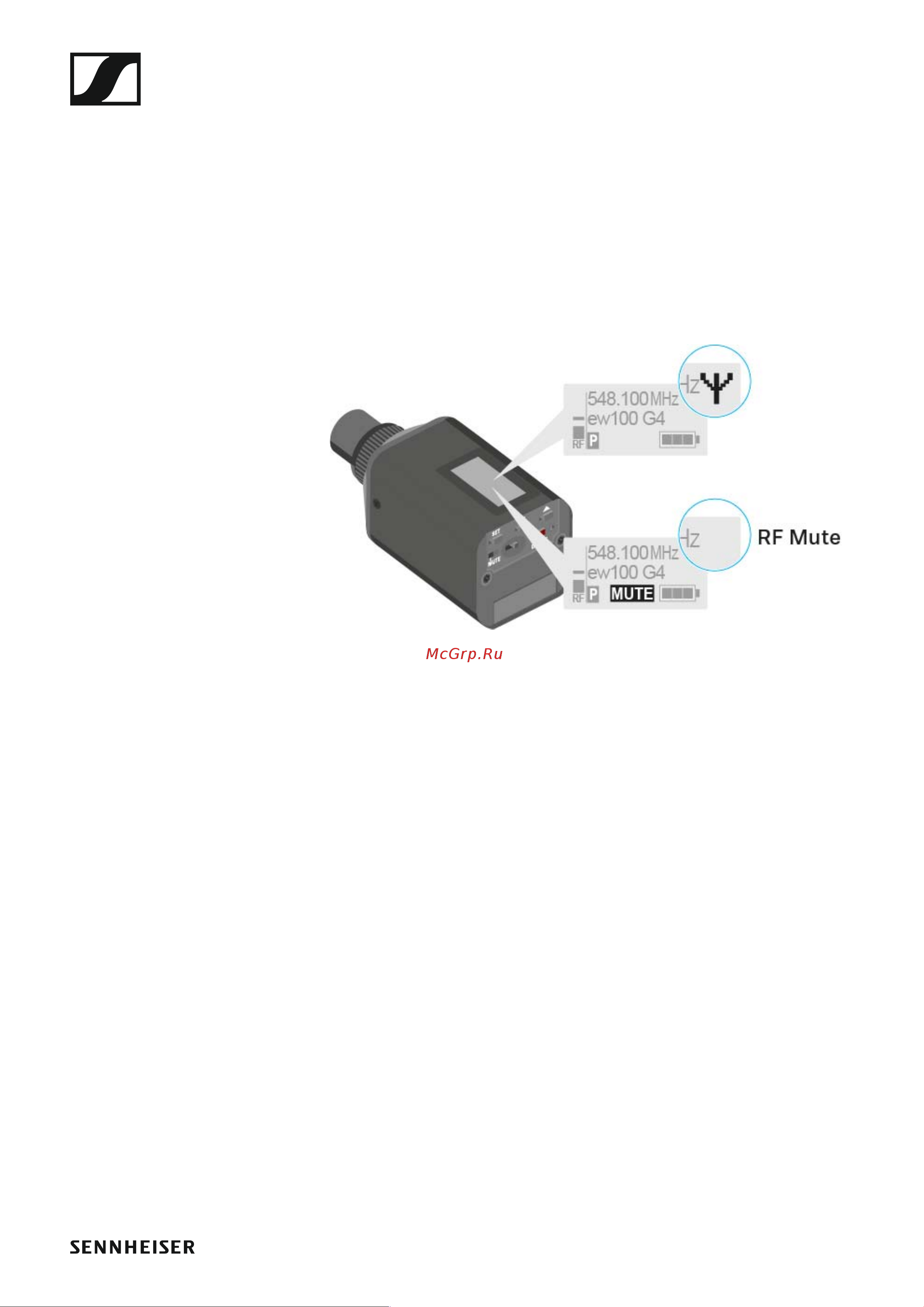

Deactivating the RF signal with the ON/OFF button
You can deactivate the RF signal with the ON/OFF button.
To deactivate the RF signal:
▷ Short-press the ON/OFF button.
RF Mute On? appears.
▷ Press the SET button.
The RF signal is deactivated. The message MUTE is shown in the dis-
play and the transmission icon no longer appears.
To activate the RF signal:
▷ Short-press the ON/OFF button.
RF Mute Off? appears.
▷ Press the SET button.
The transmission icon appears again.
