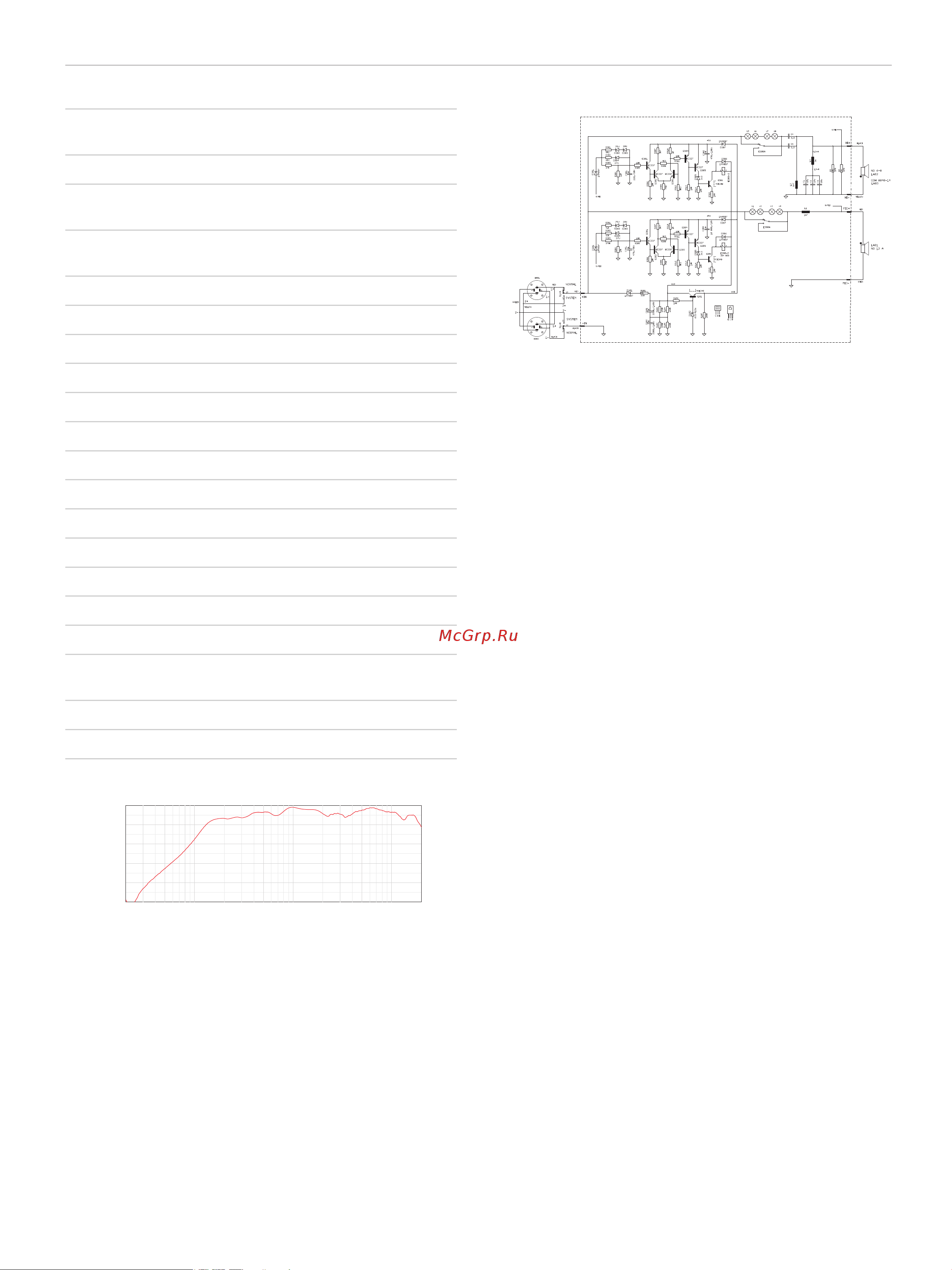

Dynacord FX12 [2/4] Circuit diagram

Coverage angle nominal, 1 kHz,

-6 dB (measured with Xa 4000)

H 80° ✕ V 40°

Crossover frequency 1000 Hz

Recommended active crossover

frequency to subwoofer

140 Hz, 18 dB/oct. Butterworth

Voice coil tracking protection Separate circuits for lo-mid and

high

Transducer

• High frequency ND6-8/CDH 8040-14

• Low-mid frequency ND12A

Audio sockets

• Model 2 ✕ NEUTRIK speakON NL4MPR

• Contacts “normal” 1+/1-

• Contacts “system” 2+/2-

Enclosure material 15 mm birch plywood

Enclosure finish Heavy-duty structured lacquer

Color Black (RAL 9005, jet black)

Grille Powder coated steel

Handles 2

Castors 4

Product dimensions (Width ✕

Height ✕ Depth)

594 ✕ 601 ✕ 808 mm

Net weight 49.5 kg

Shipping weight 54.6 kg

NEUTRIK, speakON and etherCON are registered trademarks of Neutrik AG.

20 100 1k 10k 20k

100

105

110

f / Hz

SPL / dB

Frequency Response, 1/6 Oct.

Frequency response

Circuit diagram

2 | FX12-PRO
