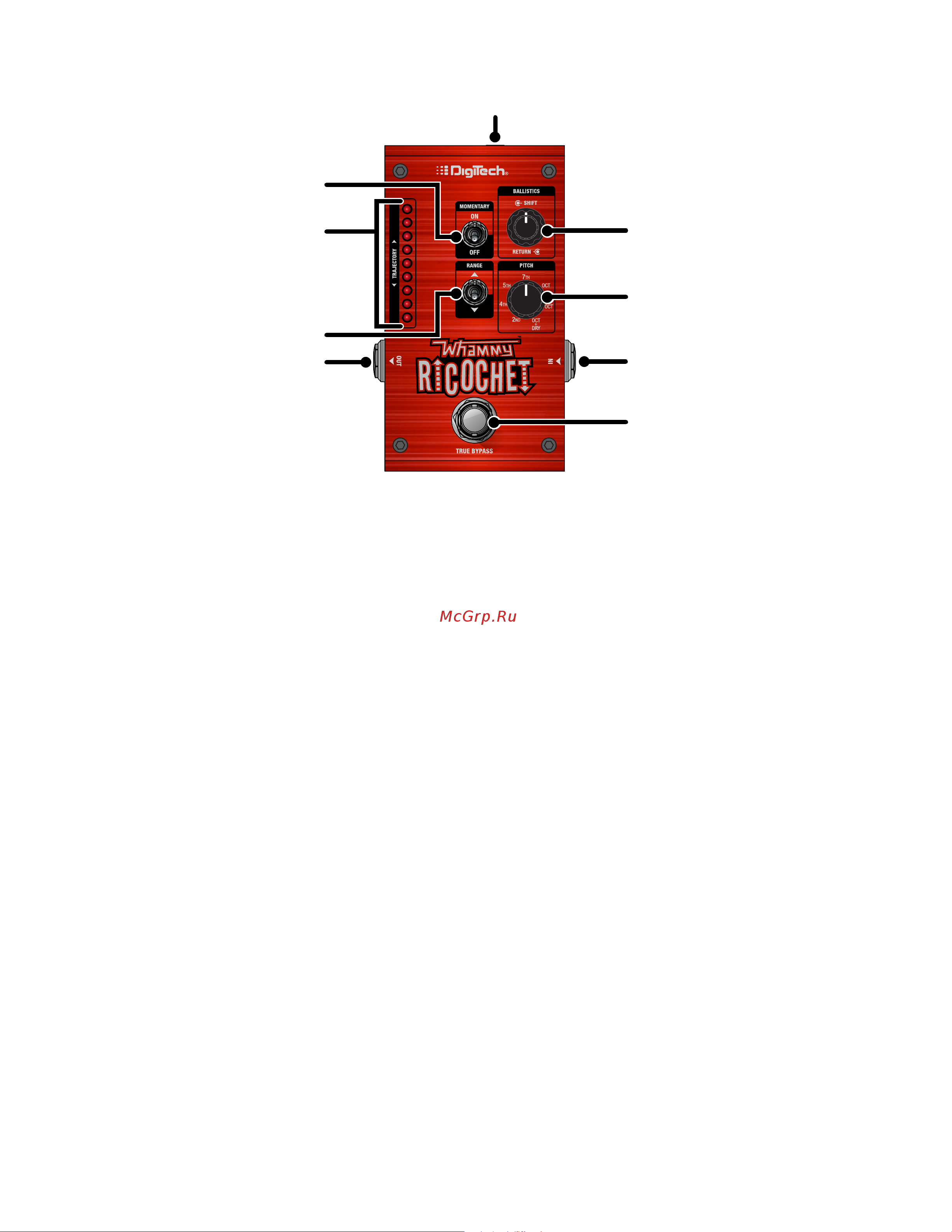

USER INTERFACE

6 4

1. Power Connector

Connect the specified HARMAN power adapter (sold separately) to this jack. Be sure to use the

proper power adapter for your area’s mains line voltage. See “Specifications” on page 7

for power adapter model information. The Ricochet can only be powered using the external

power adapter. When powering the Ricochet with a multi-pedal power adapter, ensure the power

connection provides a minimum of 300mA of current.

2. Ballistics Knobs

This concentric pot consists of two knobs, SHIFT and RETURN. The SHIFT knob sets the rate at

which the incoming note will be pitch shifted to the selected interval when the effect is enabled. The

RETURN knob sets the rate at which the incoming note will return to its normal pitch when the

effect is bypassed.

3. Pitch Knob

Sets the interval of the pitch shifted note. Pitch will be shifted up or down depending on the position

of the RANGE switch.

4. Input Jack

Connect your instrument to this jack.

5. Effect Footswitch

Turns the effect on or off. This Footswitch can be configured for momentary or latched operation

using the MOMENTARY switch.

6. Output Jack

Connect this jack to the input of an amp or the input of the next pedal on your pedalboard.
