MAKING CONNECTIONS/APPLYING POWER

To connect the Whammy Ricochet pedal to your rig:

1. Turn down the amplifier’s master volume control.

2. Make all audio connections to the Whammy Ricochet as shown below.

3. Connect the recommended HARMAN PS0913DC power adapter (not included) to the POWER

input connector and connect the other end to an available AC outlet.

4. Strum your guitar and gradually increase your amplifier’s master volume control until the desired

level is achieved.

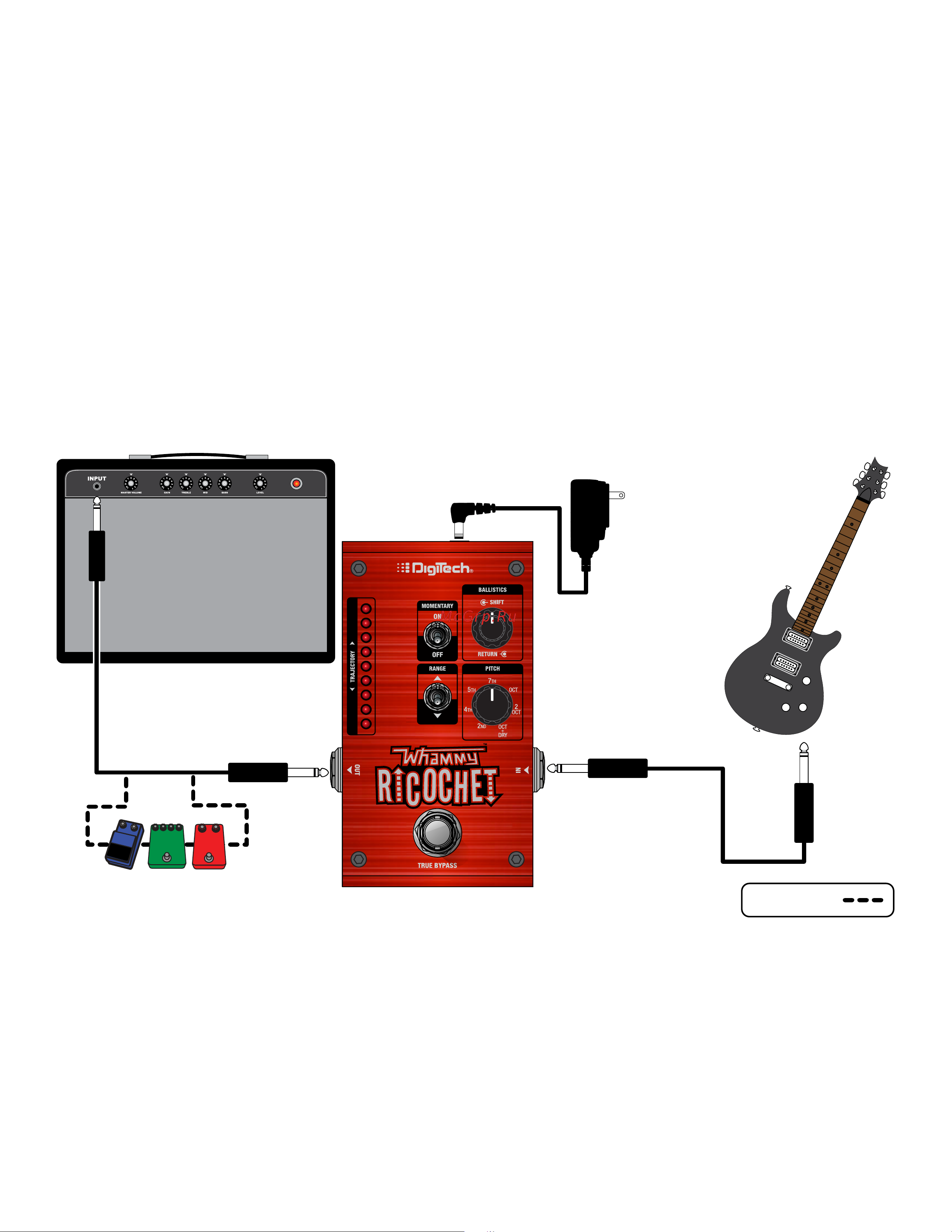

CONNECTION DIAGRAM

HARMAN PS0913DC

POWER ADAPTER

(NOT INCLUDED)

OTHER PEDALS

Use unbalanced TS instrument cables only.

NOTE: The Whammy Ricochet should be the first pedal in your effects chain. Placing any effect in front

of it may impact its pitch shifting performance.
