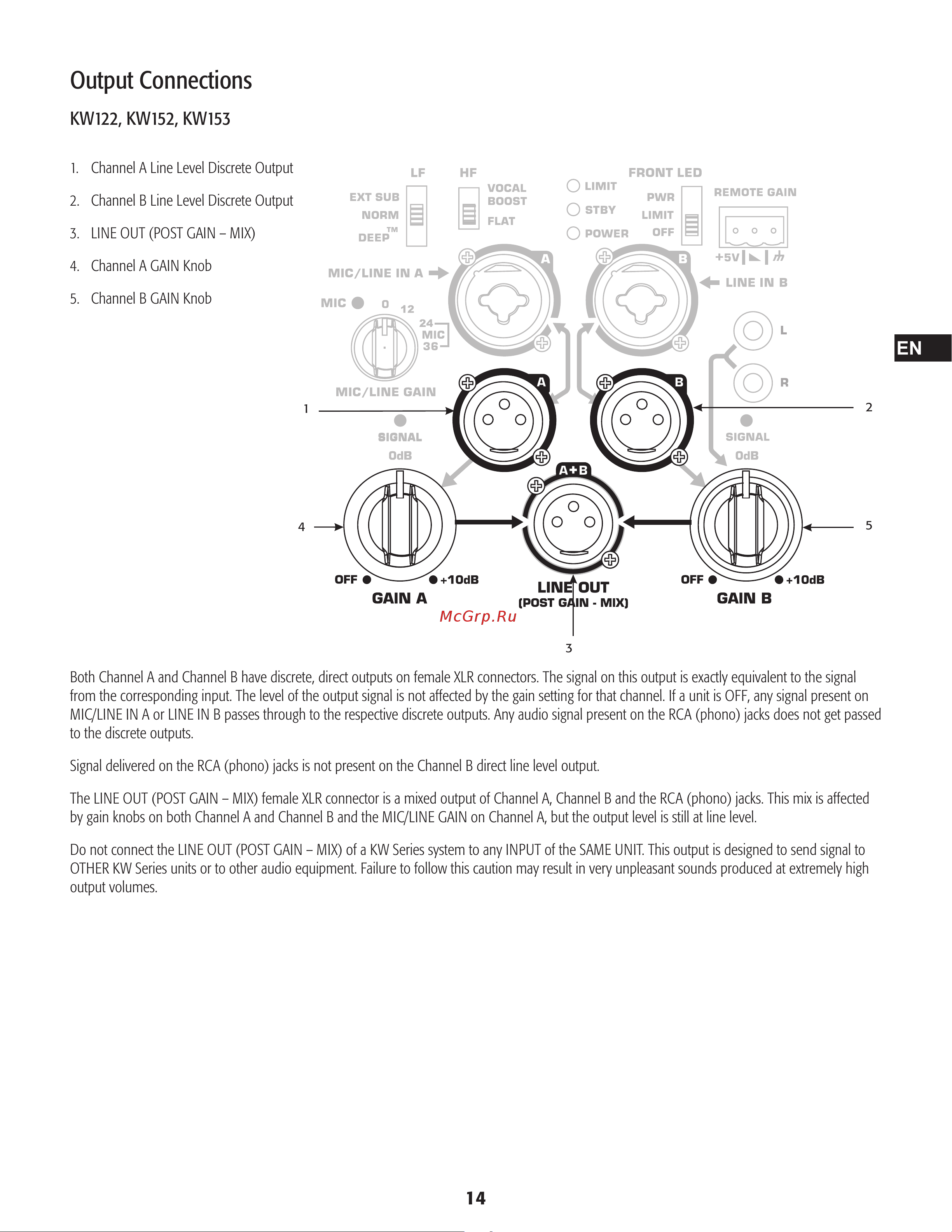

QSC KW153 [14/28] Output connections
![QSC KW153 [14/28] Output connections](/views2/2008466/page14/bge.png)
14
EN
Output Connections
KW122, KW152, KW153
Both Channel A and Channel B have discrete, direct outputs on female XLR connectors. The signal on this output is exactly equivalent to the signal
from the corresponding input. The level of the output signal is not affected by the gain setting for that channel. If a unit is OFF, any signal present on
MIC/LINE IN A or LINE IN B passes through to the respective discrete outputs. Any audio signal present on the RCA (phono) jacks does not get passed
to the discrete outputs.
Signal delivered on the RCA (phono) jacks is not present on the Channel B direct line level output.
The LINE OUT (POST GAIN – MIX) female XLR connector is a mixed output of Channel A, Channel B and the RCA (phono) jacks. This mix is affected
by gain knobs on both Channel A and Channel B and the MIC/LINE GAIN on Channel A, but the output level is still at line level.
Do not connect the LINE OUT (POST GAIN – MIX) of a KW Series system to any INPUT of the SAME UNIT. This output is designed to send signal to
OTHER KW Series units or to other audio equipment. Failure to follow this caution may result in very unpleasant sounds produced at extremely high
output volumes.
1. Channel A Line Level Discrete Output
2. Channel B Line Level Discrete Output
3. LINE OUT (POST GAIN – MIX)
4. Channel A GAIN Knob
5. Channel B GAIN Knob
1
4
3
2
5
