9
EN

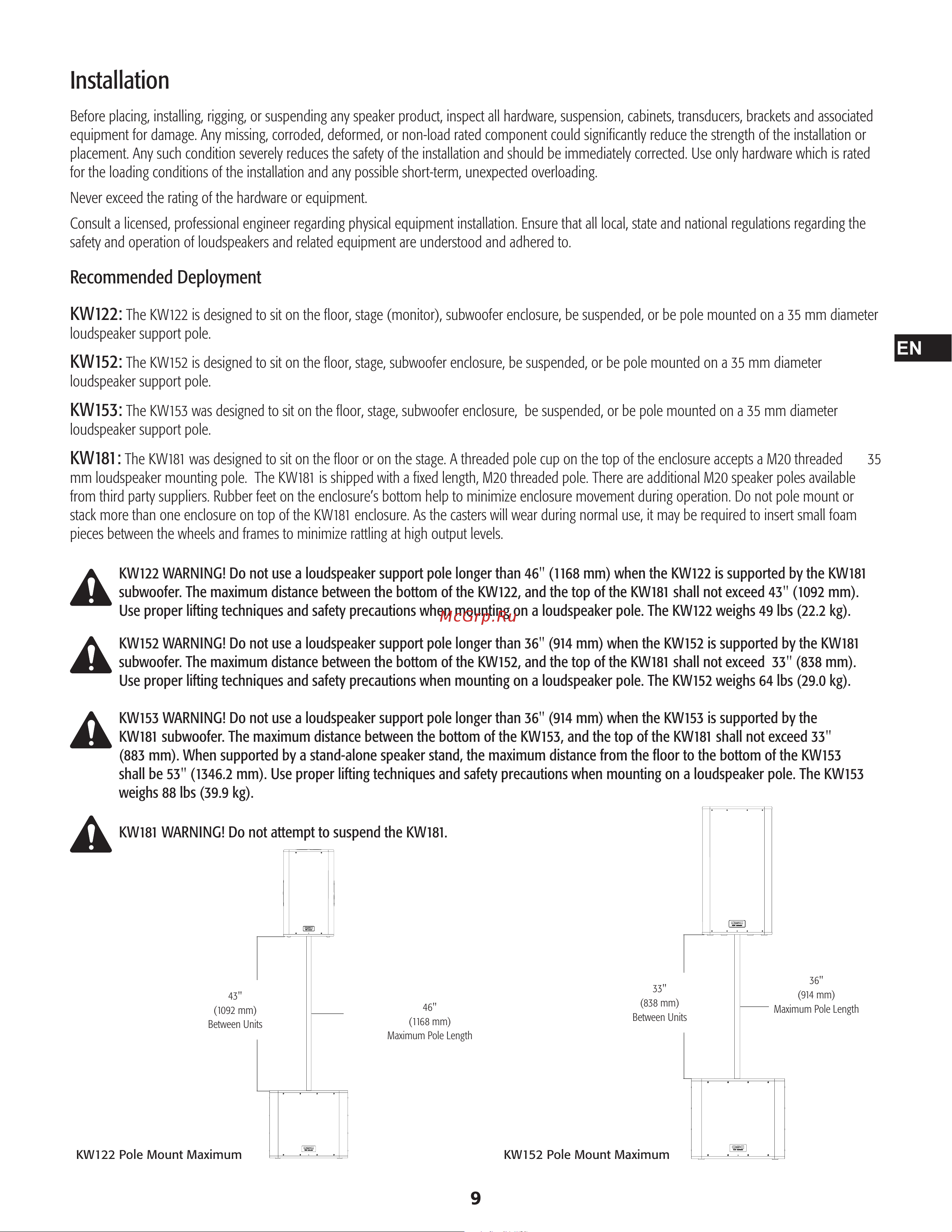

Installation
Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers, brackets and associated
equipment for damage. Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation or
placement. Any such condition severely reduces the safety of the installation and should be immediately corrected. Use only hardware which is rated
for the loading conditions of the installation and any possible short-term, unexpected overloading.
Never exceed the rating of the hardware or equipment.
Consult a licensed, professional engineer regarding physical equipment installation. Ensure that all local, state and national regulations regarding the
safety and operation of loudspeakers and related equipment are understood and adhered to.
Recommended Deployment
KW122: The KW122 is designed to sit on the floor, stage (monitor), subwoofer enclosure, be suspended, or be pole mounted on a 35 mm diameter
loudspeaker support pole.
KW152: The KW152 is designed to sit on the floor, stage, subwoofer enclosure, be suspended, or be pole mounted on a 35 mm diameter
loudspeaker support pole.
KW153: The KW153 was designed to sit on the floor, stage, subwoofer enclosure, be suspended, or be pole mounted on a 35 mm diameter
loudspeaker support pole.
KW181: The KW181 was designed to sit on the floor or on the stage. A threaded pole cup on the top of the enclosure accepts a M20 threaded 35
mm loudspeaker mounting pole. The KW181 is shipped with a fixed length, M20 threaded pole. There are additional M20 speaker poles available
from third party suppliers. Rubber feet on the enclosure’s bottom help to minimize enclosure movement during operation. Do not pole mount or
stack more than one enclosure on top of the KW181 enclosure. As the casters will wear during normal use, it may be required to insert small foam
pieces between the wheels and frames to minimize rattling at high output levels.
KW122 WARNING! Do not use a loudspeaker support pole longer than 46" (1168 mm) when the KW122 is supported by the KW181
subwoofer. The maximum distance between the bottom of the KW122, and the top of the KW181 shall not exceed 43" (1092 mm).
Use proper lifting techniques and safety precautions when mounting on a loudspeaker pole. The KW122 weighs 49 lbs (22.2 kg).
KW152 WARNING! Do not use a loudspeaker support pole longer than 36" (914 mm) when the KW152 is supported by the KW181
subwoofer. The maximum distance between the bottom of the KW152, and the top of the KW181 shall not exceed 33" (838 mm).
Use proper lifting techniques and safety precautions when mounting on a loudspeaker pole. The KW152 weighs 64 lbs (29.0 kg).
KW153 WARNING! Do not use a loudspeaker support pole longer than 36" (914 mm) when the KW153 is supported by the
KW181 subwoofer. The maximum distance between the bottom of the KW153, and the top of the KW181 shall not exceed 33"
(883 mm). When supported by a stand-alone speaker stand, the maximum distance from the floor to the bottom of the KW153
shall be 53" (1346.2 mm). Use proper lifting techniques and safety precautions when mounting on a loudspeaker pole. The KW153
weighs 88 lbs (39.9 kg).
KW181 WARNING! Do not attempt to suspend the KW181.
KW122 Pole Mount Maximum KW152 Pole Mount Maximum
46"
(1168 mm)
Maximum Pole Length
33"
(838 mm)
Between Units
36"
(914 mm)
Maximum Pole Length
43"
(1092 mm)
Between Units
