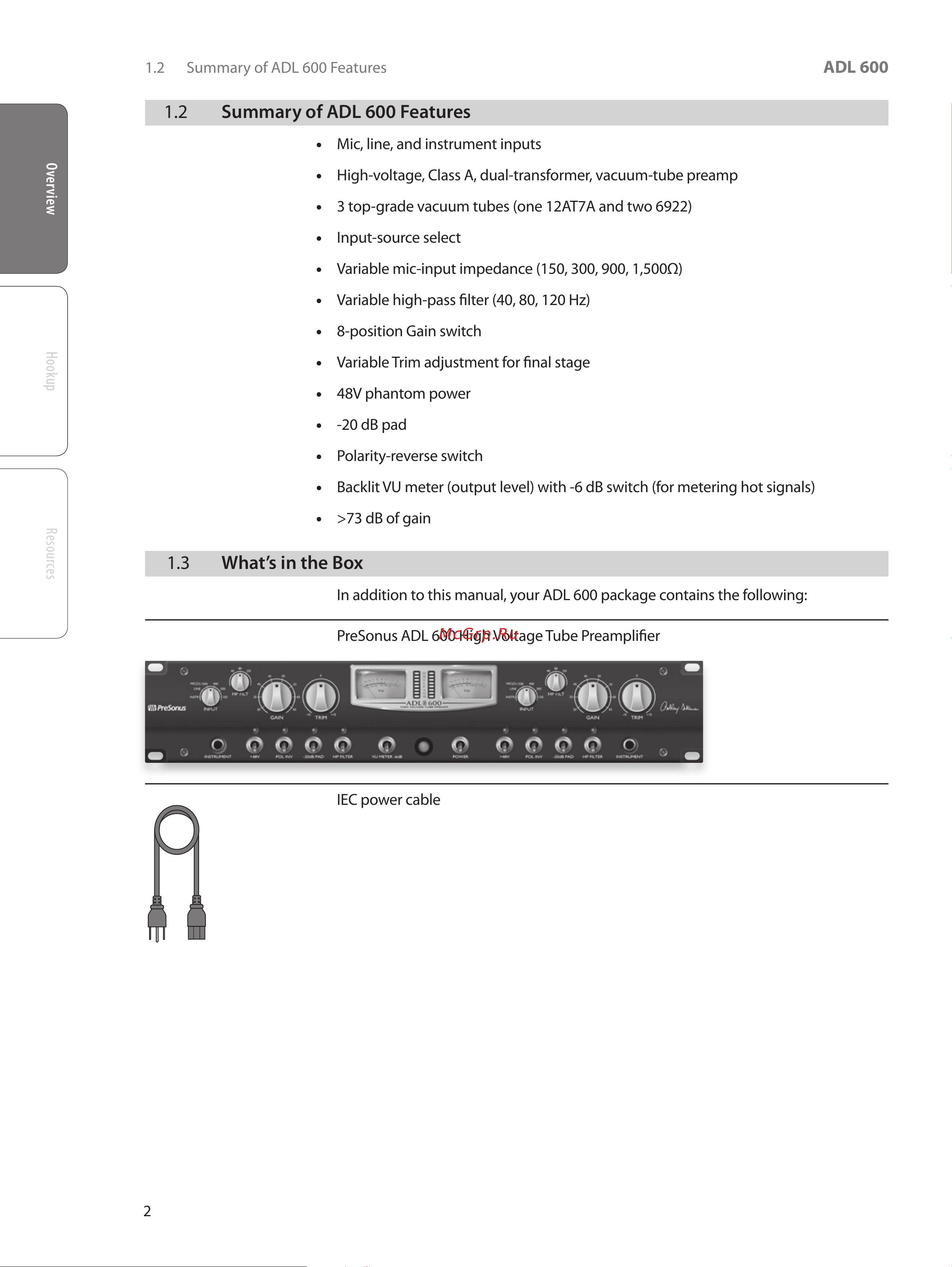

1.2 Summary of ADL 600 Features

• Mic, line, and instrument inputs

• High-voltage, Class A, dual-transformer, vacuum-tube preamp

• 3 top-grade vacuum tubes (one 12AT7A and two 6922)

• Input-source select

• Variable mic-input impedance (150, 300, 900, 1,500Ω)

• Variable high-pass ﬁlter (40, 80, 120 Hz)

• 8-position Gain switch

• Variable Trim adjustment for ﬁnal stage

• 48V phantom power

• -20 dB pad

• Polarity-reverse switch

• Backlit VU meter (output level) with -6 dB switch (for metering hot signals)

• >73 dB of gain

1.3 What’s in the Box

In addition to this manual, your ADL 600 package contains the following:

PreSonus ADL 600 High Voltage Tube Preampliﬁer

IEC power cable
