JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.

JBL STX815M REV A

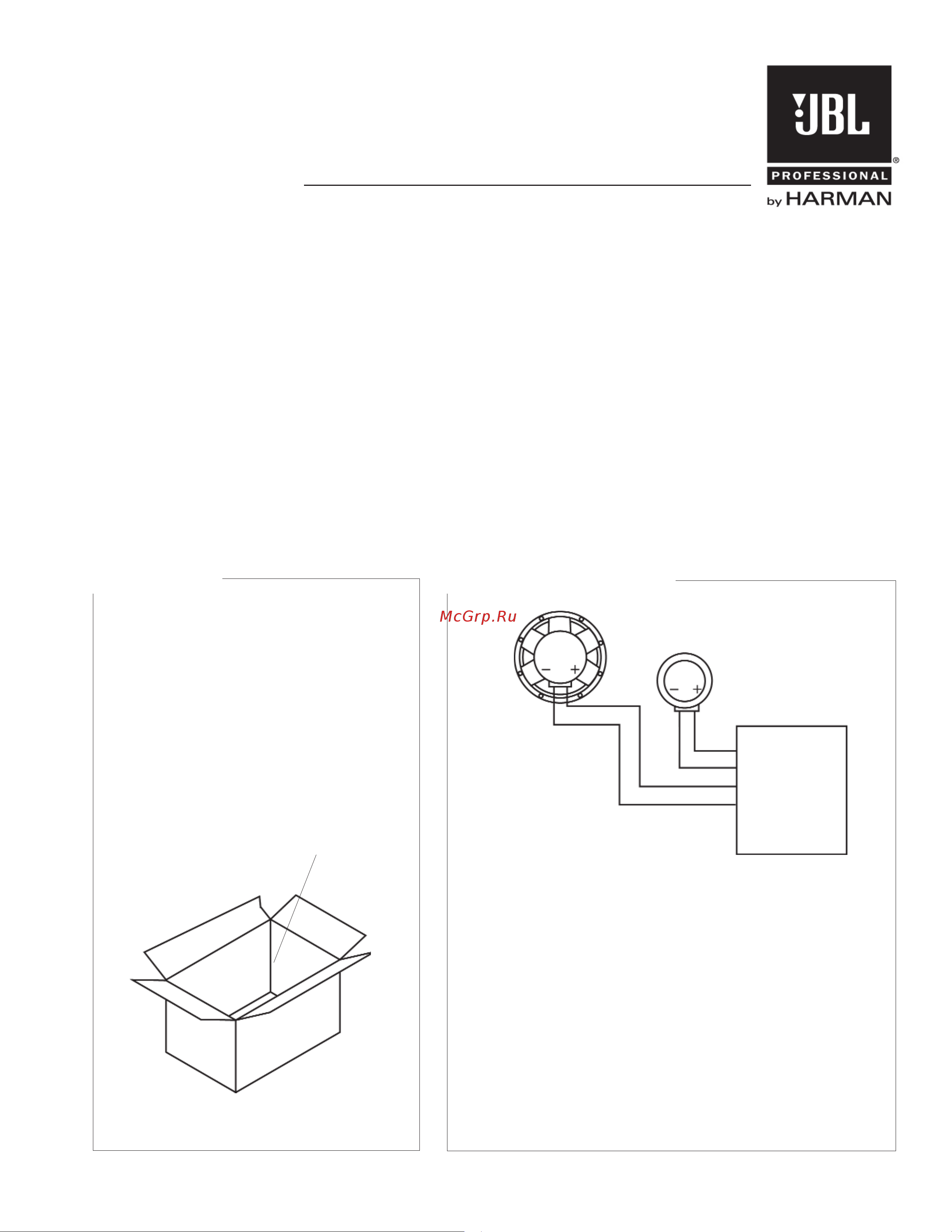

PACKAGE WIRING DIAGRAM

07-12

Technical Manual

JBL STX815M

SPECIFICATIONS

ACOUSTIC & ELECTRICAL SPECIFICATIONS:

• Nominal Impedance:

Passive: 8 Ohms

Bi-amp LF: 8 Ohms

Bi-Amp HF: 8 Ohms

• Power Rating: Continuous Pink Noise / Program / Peak:

Passive: 800W / 1600W / 3200W

Bi-amp LF: 800W / 1600W / 3200W

Bi-amp HF: 75W / 150W / 300W

• Frequency Response: 55 Hz - 20 kHz (±3 dB)

• Frequency Range: 41 Hz - 20 kHz (–10 dB)

• Maximum SPL: 131 dB SPL peak

• System Sensitivity: 96 dB SPL (passive mode)

(1 Watt@ 1 Meter)

• Crossover Freq.: 1.8 kHz

SYSTEM COMPONENTS:

• Cabinet: Enclosure (Not For Sale)

• Grille: 5013221

• Low Frequency 2226HPL, 380 mm (15 in) Vented Gap

: Transducer: Cooler

woofer

SYSTEM COMPONENTS:

CONT’D

• DC Resistance: 5.0 ohms

• High Frequency 2432H, 75 mm (3 in) neodymium-magnet

Transducer: compression driver

• DC Resistance: 4.00 ohm ± 0.2 ohm

• Crossover Network: 5014362

AURAL SWEEP TEST SPECIFICATIONS:

System Aural Sweep Test: 7

.0V Input, 10 Hz to 20 kHz

B. L.F. Aural Sweep Test: 10.0V Input, 20 Hz to 1.2 kHz

C. H.F. Aural Sweep Test: 3.0V Input, 300 Hz to 1.0 kHz

PHYSICAL SPECIFICATIONS:

• Enclosure Dimensions: 721 x 436 x 329 mm D

(28.4 x 17.2 x 13.0 in. D)

• Net Weight: 58 lb (26 kg.)

WARRANTY INFORMATION:

• Refer to Warranty Statement packed with each product.

Warranty 59660

Spec Sheet

5022490

Carton

5018296

Filler,Top

5018297

Filler, Bottom

5018298

PKG,Microfoam (8)

49790P

SEE NETWORK SCHEMATIC PAGE 2

Driver, High Freq

2432H

(365512-001X)

Diaph Repl

D8R2432

Driver, Low Freq

2226HPL

Cone Repl

C8R2226

Network

Assembly

5014362

NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.

A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.

YEL/

BLK

YEL

GRN/BLK

GRN
