JBL STX812M Руководство по эксплуатации онлайн
JBL Incorporated, 8500 Balboa Boulevard, P.O. Box 2200, Northridge, California 91329 U.S.A.
JBL STX812M REV B

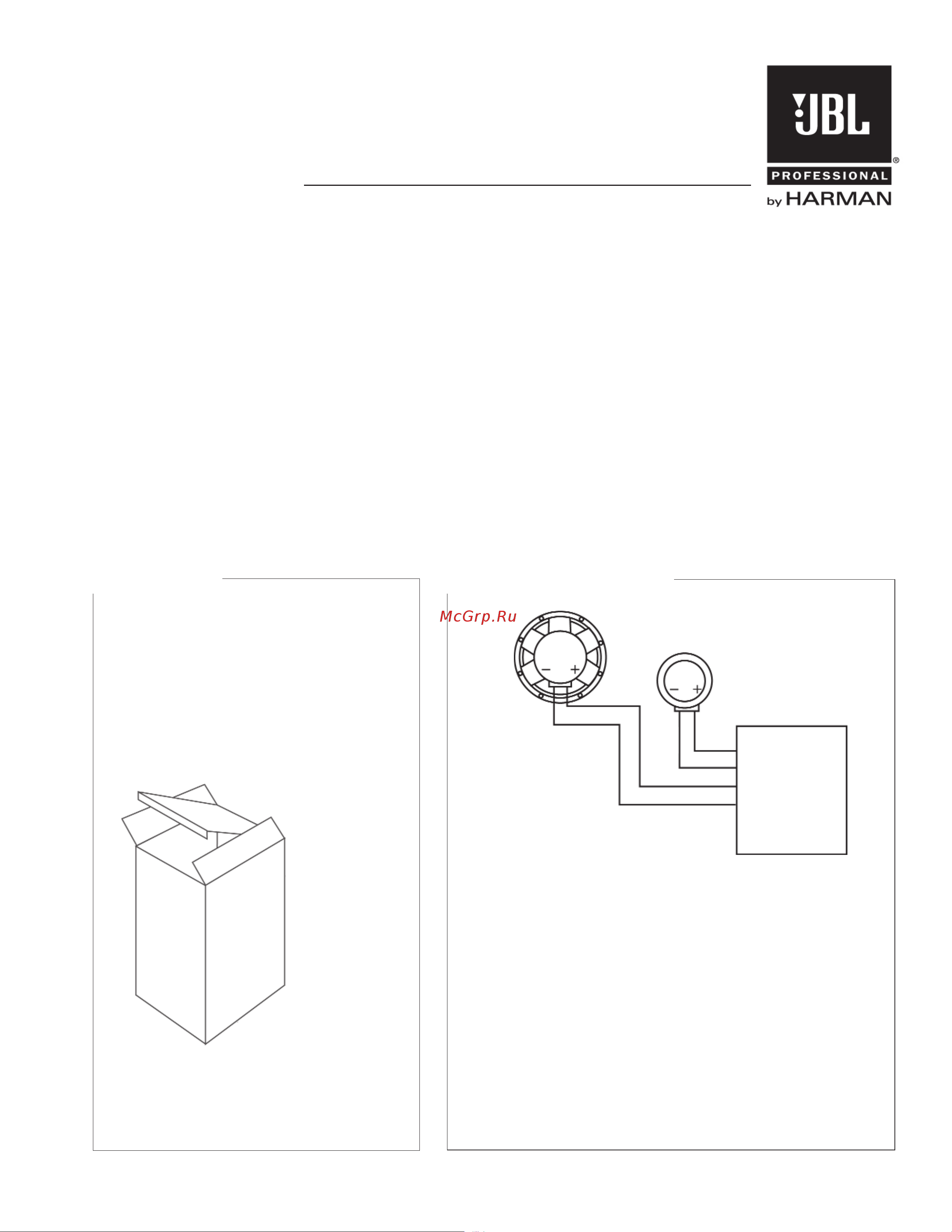

PACKAGE WIRING DIAGRAM
07-14
Technical Manual
JBL STX812M
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance:
Passive: 8 Ohms
Bi-amp LF: 8 Ohms
Bi-amp HF: 8 Ohms
• Power Rating: Continuous / Program / Peak:
Passive: 800W / 1600W / 3200W
Bi-amp LF: 800W / 1600W / 3200W
Bi-amp HF: 75W / 150W / 300 W
• Frequency Response:75 Hz - 20 kHz ((±3 dB)
• Frequency Range: 50 Hz – 20 kHz (–10 dB)
• Maximum SPL: 130 dB SPL Peak
• System Sensitivity: 95 dB SPL (passive mode)
(1 Watt@ 1 Meter)
• Crossover Freq.: 2.2 kHz
SYSTEM COMPONENTS:
• Cabinet: Enclosure (Not For Sale)
• Grille: 5013220
• Low Frequency 2206HPL, 305 mm (12 in) Vented Gap
Transducer: Cooled
TM
woofer
SYSTEM COMPONENTS:
CONTD
• DC Resistance: 5.3 ohms
• High Frequency 2432H, 75 mm (3 in) voice coil, neodymium
Transducer: compression driver
• DC Resistance: 4.00 ohm ± 0.2 ohm
• Crossover Network/Input Cup: 5014361
AURAL SWEEP TEST SPECIFICATIONS:
A.
System Aural Sweep Test: 7
.0V Input, 10 Hz to 20 kHz
B. L.F. Aural Sweep Test: 10.0V Input, 20 Hz to 1 kHz
C. H.F. Aural Sweep Test: 3.0V Input, 300 Hz to 1.0 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 571 x 355 x 264 mm D
(22.5 x 13.4 x 10.4 in. D)
• Net Weight: 42 lb (19 kg.)
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Warranty 59660
Spec Sheet
5022491
Carton
5018294
Filler (2)
5018295
PKG,Microfoam (2)
49790P
SEE NETWORK SCHEMATIC PAGE 2
Driver, High Freq
2432H
(365512-001X)
Diaph Repl
D8R2432
Driver, Low Freq
2206HPL
Cone Repl
C8R2206
Network/
Input Cup
Assembly
5014361
NOTE: INDIVIDUAL PARTS FOR THE ABOVE CROSSOVER ARE NOT AVAILABLE.
A COMPLETE REPLACEMENT ASSEMBLY SHOULD BE ORDERED.
YEL/
BLK
YEL
GRN/BLK
GRN
