Driver, Low Freq.
2206HPL
Cone Repl
C8R2206
Screw (4)
804-01110-16
10-32 x 1
FIL,PH,BLK
Gasket
339391-001
Rear 12”
Dome
71646
Pole Cup
443406-001
Gasket
364808-001
Screw (3)
806-11010-20
1/4-20 x 1 1/4
FLT,PH,UNC,BLK
ZINC,LCS
Network / Input
Cup Assembly
5015361
Screw (4)
882-51110-12
6 x 3/4
OV,PH,PTCL,
BLK ZINC, LCS
Mounting Bracket (2)
338652-001
Flat Single M10
Screw (2)
818-13714-35
M10 x 35MM
FLT,HEX,BLK ZINC
ALLOY
Screw (4)
883-41110-08
8 x 1/2
PAN,PH,PB,BLK
ZINC,LCS
Foot (8)
353445-001
Screw (8)
884-41110-12
10 x 3/4
PAN,PH,PB,BLK
ZINC,LCS
Network / Input Cup
Assembly
5014361
Screw (14)
883-41110-12
8 x 3/4
PAN,PH,PB,
BLK ZINC,LCS
Kurly-Lok (2)
925-00005-01
Driver, High Freq.
2432H
(365512-001X)
Diaph Repl
D8R2432
Stud (4)
75815
1/4-20 x 1.5” LG
Nut (4)
834-30010-00
1/4-20
KEPS,BLK ZINC
LCS,RIGHT
Horn
5006219
Gasket
351577-001
Screw (10)
804-41110-16
10-32x1
PAN,PH,BLK
Grille Assembly
5013220
Screw (4)
882-51110-12
6 x 3/4
OV,PH,PTCL
BLK ZINC,LCS
Grille Badge
5014533

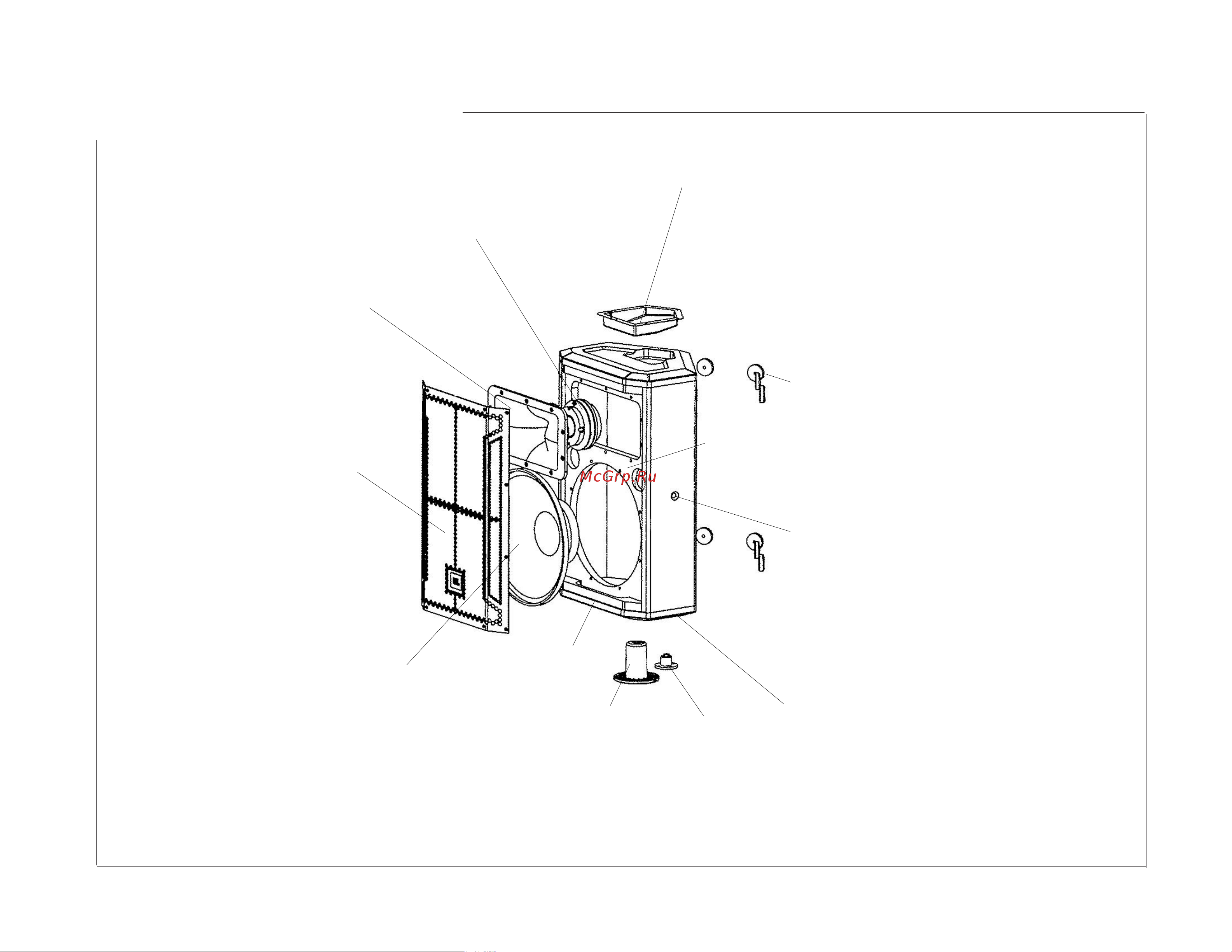

COMPONENT EXPLODED VIEW
JBL STX812M
JBL STX812M
Grille Support (2)
5014288
T-Nut (14)
61861
10-32
(front baffle)
T-Nut (3)
804-90003-00
1/4-20 Short
(located on the
bottom panel)
Enclosure Assembly
STX812M
(Not Available for Sale)
