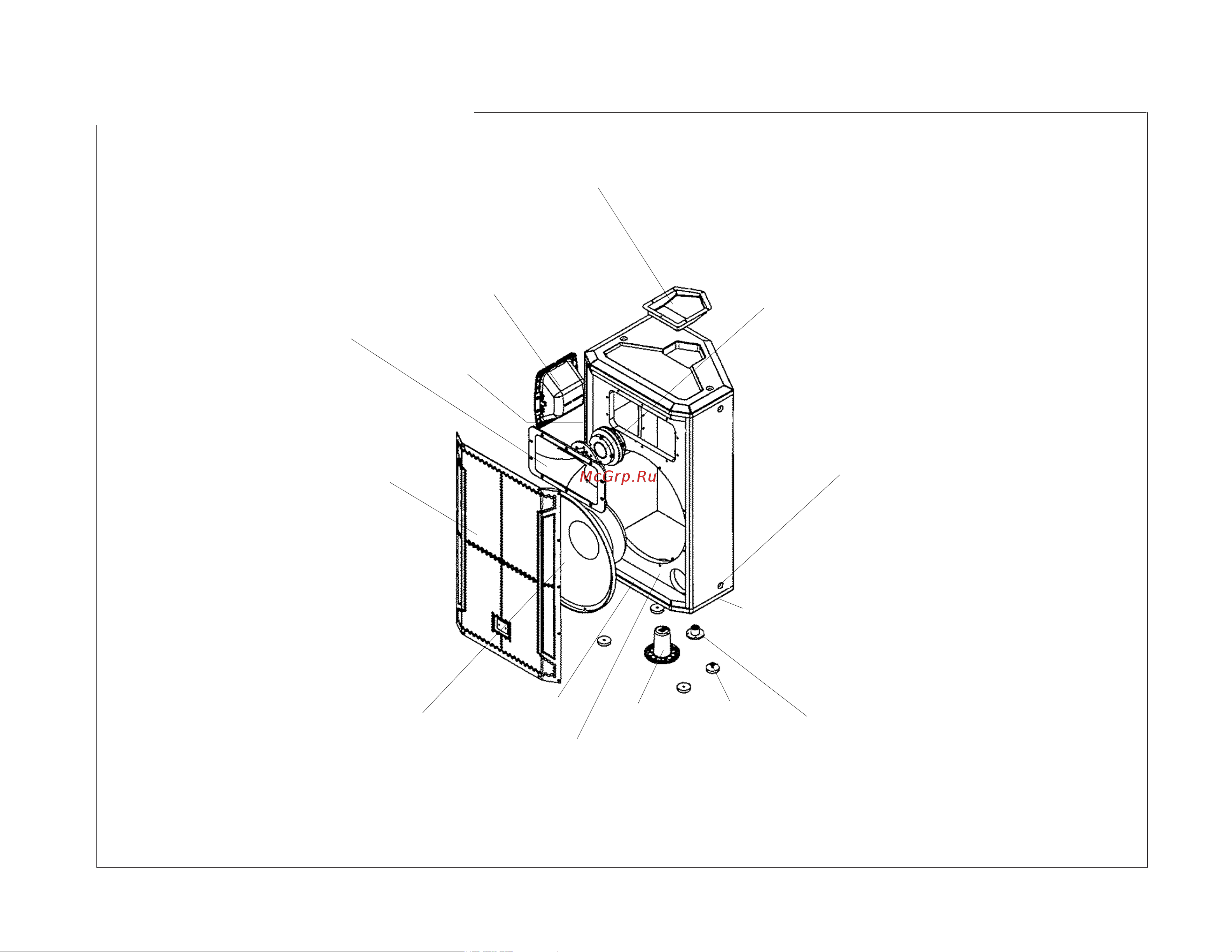

COMPONENT EXPLODED VIEW
JBL STX815M
JBL STX815M
Network Assembly
5014362
Screw (14)
882-41110-12
8 x 3/4
PAN,PH,BLK
ZINC,LCS
Kurly-Lok (2)
925-00005-01
Handle
5015324
Gasket
445327-001
Screw (8
446376-001
“SONY Head”
Horn
5006219
Gasket
351577-001
Screw (10)
804-41110-16
10-32x1
PAN,PH,BLK
Grille Assembly
5013221
Screw (14)
882-51110-12
6 x 3/4
OV,PH,PTCL,
BLK ZINC,LCS
Grille Badge
5014533
Driver, Low Freq
2226HPL
Cone Repl
C8R2226
Screw (8)
804-01110-16
10-32 x 1
FIL,PH,BLK
Gasket
360-70002-01
Rear 15”
Dome
71646
Pole Cup
443406-001
Gasket
364808-001
Screw (3)
806-111010-20
1/4-20 x 1 1/4
FLT,PH,UNC
ZINC BLK, LCS
Foot (8)
353445-001
Screw (8)
884-41110-12
10 X 3/4
PAN,PH,PB, BLK
ZINC,LCS
Network Assembly
5014362
Screw (4)
882-51110-12
6 x 3/4
OV,PH,PTCL,
BLK ZINC,LCS
Mounting Support (4)
381-00023-01
90 Degrees 2x M10
Screw (12)
818-13714-35
M10 x 35MM
FLT,HEX,BLK ZINC,
ALLOY
Screw (8)
883-41110-08
8 x 1/2
PAN,PH,PB,
BLK ZINC,LCS
Driver, High Freq.
2432H
(365512-001X)
Diaph Repl
D8R2432
Stud (4)
75815
1/4-20 x 1.5”LG
Nut (4)
834-30010-00
1/4-20
KEPS, BLK
ZINC,LCS,RIGHT
Grille Support (2)
5014295
T-Nut (18)
61861
10-32
(front baffle)
T-Nut (3)
804-90003-00
1/4-20 Short
(located on
bottom panel)
Enclosure Assembly
STX815
(Not Available for Sale)
T-Nut (8)
61860
8-32x11/32
(located on
L/R side panel)
