properly. Please note the starting address depends upon which controller is being used. Only use a

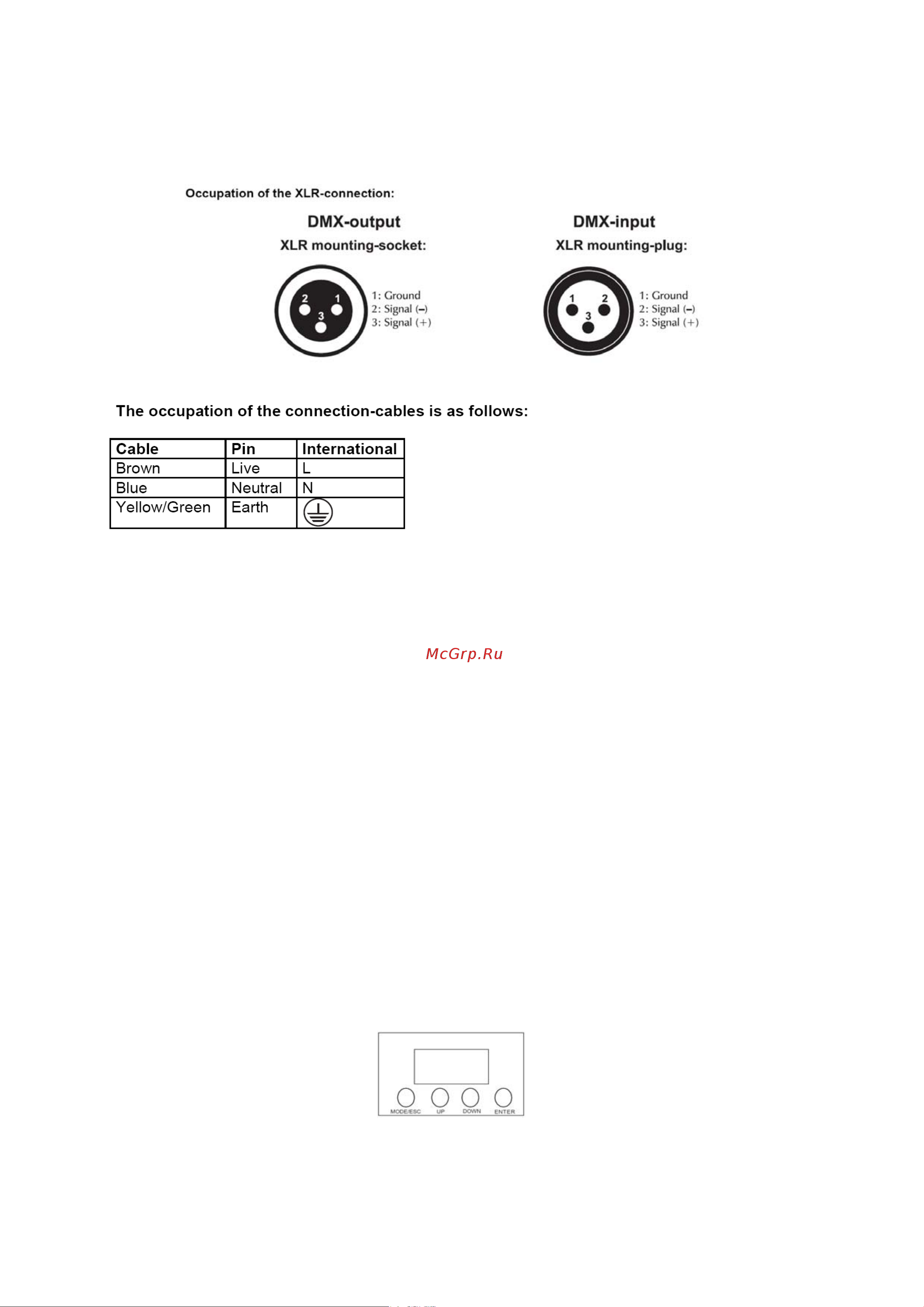

DMX cable and 3-pin XLR-plugs and connectors in order to connect the controller with the fixture or one

fixture to another

Connection with the mains.

The earth has to be connected. The device must only be connected with an electric installation carried

out in compliance with IEC standards.

OPERATION

After you connected the effect to the mains, The fixture starts running

Stand Alone operation

In the stand alone mode, the fixture can be use without controller

Master/slave-operation

The master/slave-operation enables that several devices can be synchronized and controlled by one

master-device

DMX controlled operation

You can control the projectors individually via your DMX-controller

Addressing

The control board allows you to assign the DMX starting address,

Note;it’s necessary to insert the XLR termination plug (with 120ohm) in the last device in the link in order

to ensure proper transmission on the DMX data link.

CONTROL BOARD

The control board offer several features :you can simple set the starting address, run the

pre-programmed program or make a reset

he main menu is accessed by pressing the Mode/Esc-button, Browse through the submenu by pressing

Up or Down .Press the Enter-button in order to select the desired menu. You can change the selection

by pressing Up or Down, Confirm every selection by pressing the Enter-button. You can leave every
