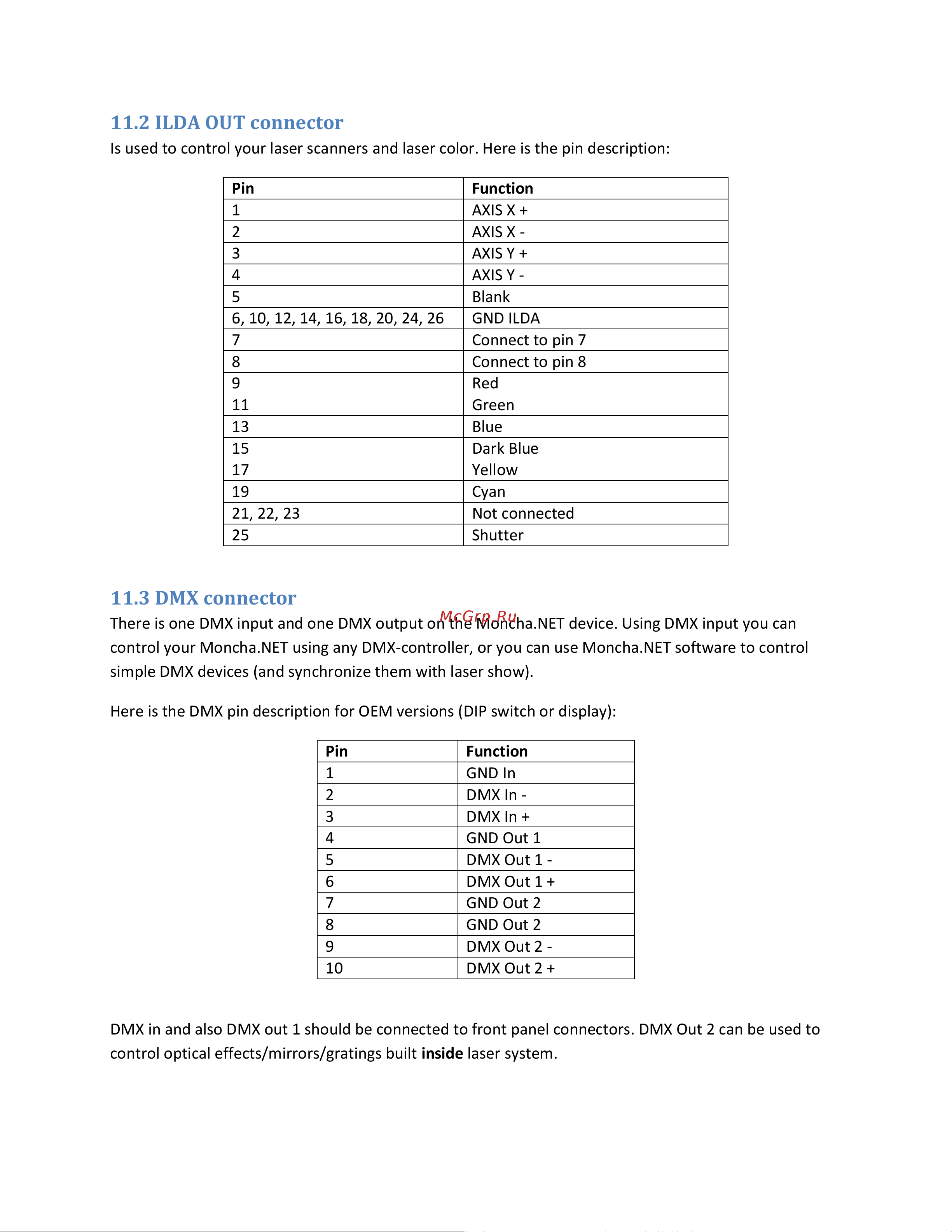

11.2 ILDA OUT connector

Is used to control your laser scanners and laser color. Here is the pin description:

Function

AXIS X +

AXIS X -

AXIS Y +

AXIS Y -

Blank

6, 10, 12, 14, 16, 18, 20, 24, 26

GND ILDA

Connect to pin 7

Connect to pin 8

Red

Green

Blue

Dark Blue

Yellow

Cyan

21, 22, 23

Not connected

Shutter

11.3 DMX connector

There is one DMX input and one DMX output on the Moncha.NET device. Using DMX input you can

control your Moncha.NET using any DMX-controller, or you can use Moncha.NET software to control

simple DMX devices (and synchronize them with laser show).

Here is the DMX pin description for OEM versions (DIP switch or display):

Function

GND In

DMX In -

DMX In +

GND Out 1

DMX Out 1 -

DMX Out 1 +

GND Out 2

DMX Out 2 -

DMX Out 2 +

DMX in and also DMX out 1 should be connected to front panel connectors. DMX Out 2 can be used to

control optical effects/mirrors/gratings built inside laser system.
