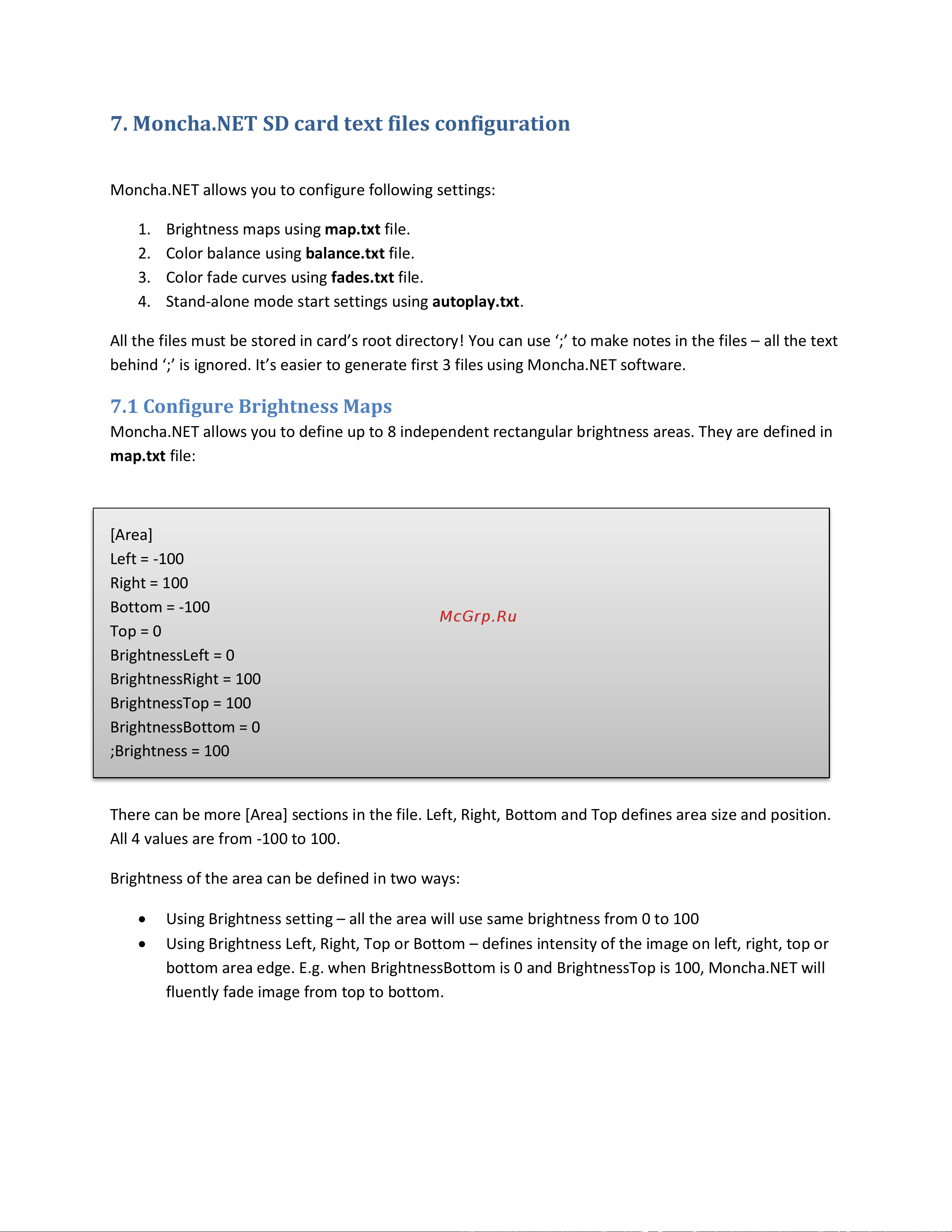

7. Moncha.NET SD card text files configuration

Moncha.NET allows you to configure following settings:

1. Brightness maps using map.txt file.

2. Color balance using balance.txt file.

3. Color fade curves using fades.txt file.

4. Stand-alone mode start settings using autoplay.txt.

All the files must be stored in card’s root directory! You can use ‘;’ to make notes in the files – all the text

behind ‘;’ is ignored. It’s easier to generate first 3 files using Moncha.NET software.

7.1 Configure Brightness Maps

Moncha.NET allows you to define up to 8 independent rectangular brightness areas. They are defined in

map.txt file:

[Area]

Left = -100

Right = 100

Bottom = -100

Top = 0

BrightnessLeft = 0

BrightnessRight = 100

BrightnessTop = 100

BrightnessBottom = 0

;Brightness = 100

There can be more [Area] sections in the file. Left, Right, Bottom and Top defines area size and position.

All 4 values are from -100 to 100.

Brightness of the area can be defined in two ways:

 Using Brightness setting – all the area will use same brightness from 0 to 100

 Using Brightness Left, Right, Top or Bottom – defines intensity of the image on left, right, top or

bottom area edge. E.g. when BrightnessBottom is 0 and BrightnessTop is 100, Moncha.NET will

fluently fade image from top to bottom.
