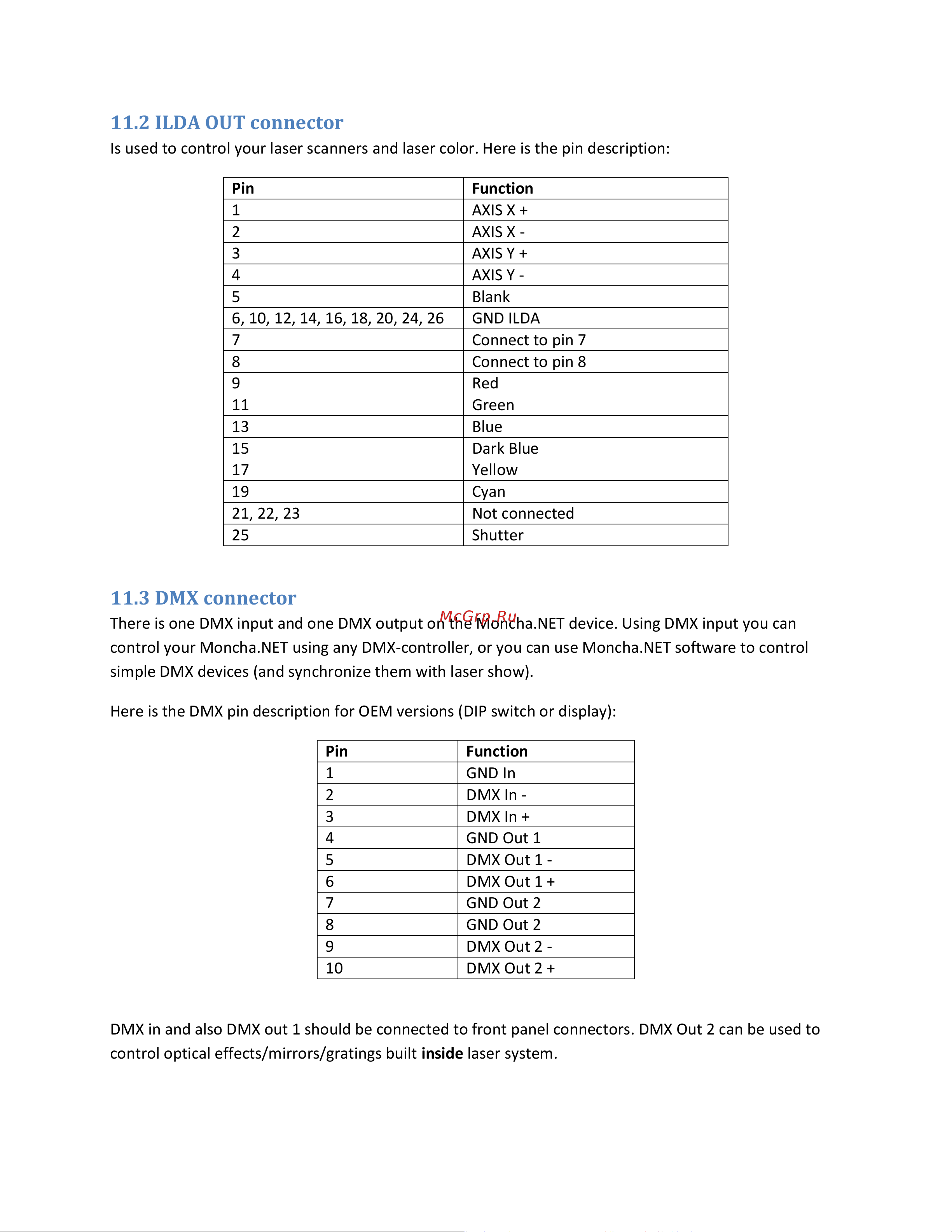

11.2 ILDA OUT connector
Is used to control your laser scanners and laser color. Here is the pin description:
Pin
Function
1
AXIS X +
2
AXIS X -
3
AXIS Y +
4
AXIS Y -
5
Blank
6, 10, 12, 14, 16, 18, 20, 24, 26
GND ILDA
7
Connect to pin 7
8
Connect to pin 8
9
Red
11
Green
13
Blue
15
Dark Blue
17
Yellow
19
Cyan
21, 22, 23
Not connected
25
Shutter
11.3 DMX connector
There is one DMX input and one DMX output on the Moncha.NET device. Using DMX input you can
control your Moncha.NET using any DMX-controller, or you can use Moncha.NET software to control
simple DMX devices (and synchronize them with laser show).
Here is the DMX pin description for OEM versions (DIP switch or display):
Pin
Function
1
GND In
2
DMX In -
3
DMX In +
4
GND Out 1
5
DMX Out 1 -
6
DMX Out 1 +
7
GND Out 2
8
GND Out 2
9
DMX Out 2 -
10
DMX Out 2 +
DMX in and also DMX out 1 should be connected to front panel connectors. DMX Out 2 can be used to
control optical effects/mirrors/gratings built inside laser system.
