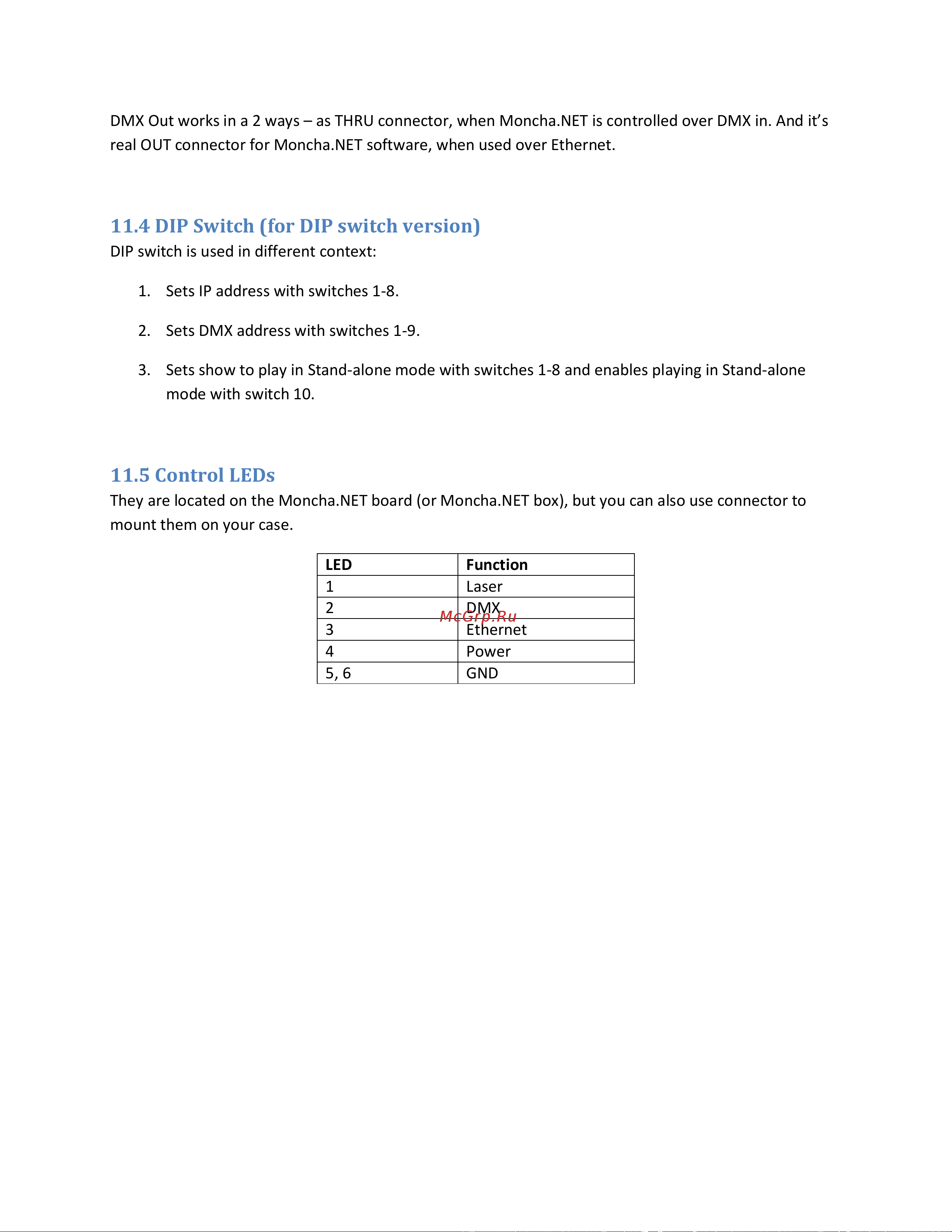

DMX Out works in a 2 ways – as THRU connector, when Moncha.NET is controlled over DMX in. And it’s

real OUT connector for Moncha.NET software, when used over Ethernet.

11.4 DIP Switch (for DIP switch version)

DIP switch is used in different context:

1. Sets IP address with switches 1-8.

2. Sets DMX address with switches 1-9.

3. Sets show to play in Stand-alone mode with switches 1-8 and enables playing in Stand-alone

mode with switch 10.

11.5 Control LEDs

They are located on the Moncha.NET board (or Moncha.NET box), but you can also use connector to

mount them on your case.

LED

Function

Laser

DMX

Ethernet

Power

5, 6

GND
