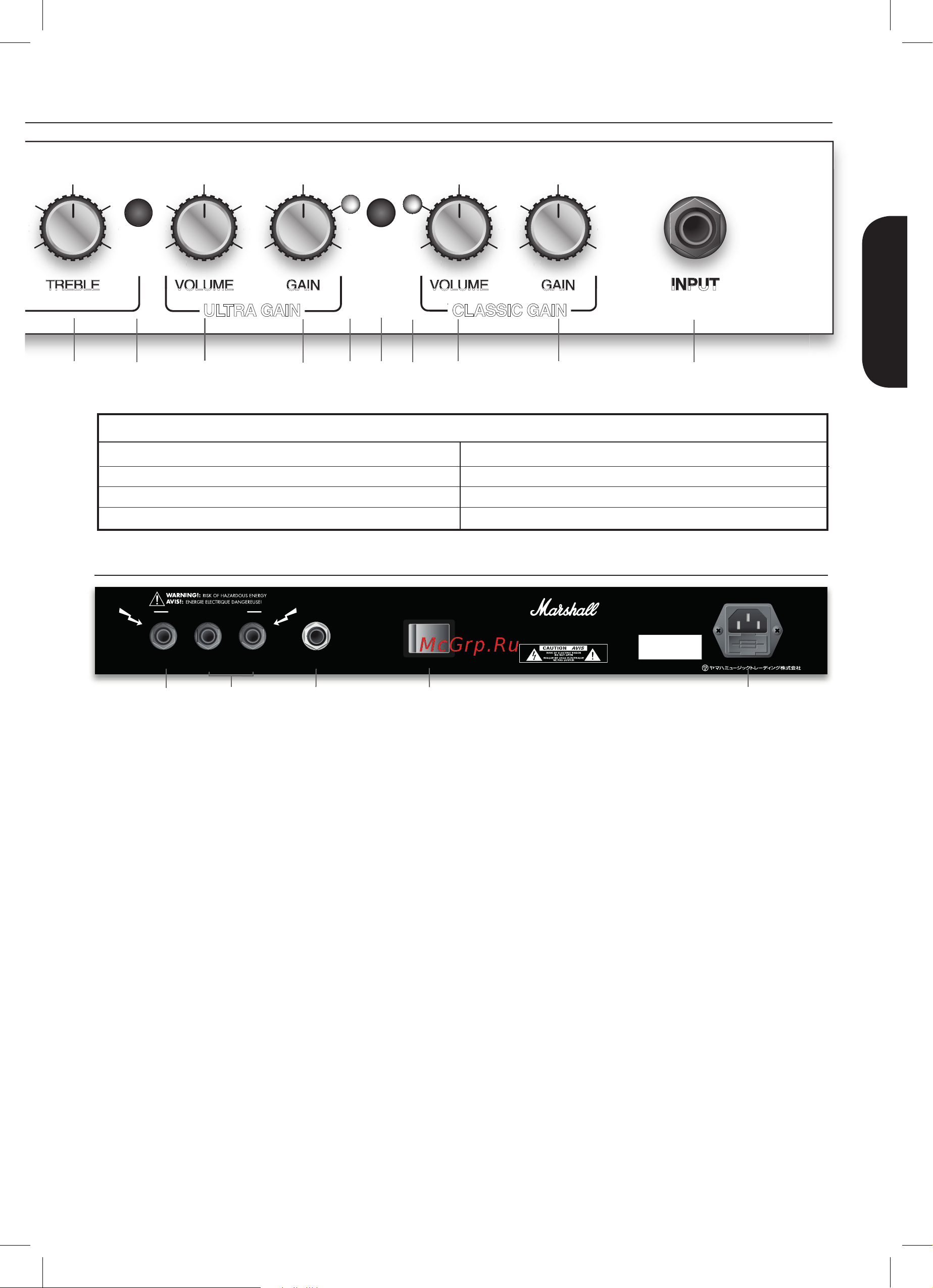

DSL15H Rear Panel Features (from Left to Right)
LOUDSPEAKERS
FOOTSWI TCH
MAINS INPUT
230V ~ 50Hz
100 WATTS
FUSE
230V - T1AE250V
100-120V - T2AE250V
Designed, Engineered & Quality Controlled by:
Marshall Amplification plc
Bletchley, Milton Keynes, England
Made in Vietnam
MODEL:
DSL15H
PENTODE
(Full Power)
TRIODE
(Half Power)
8 OHM
8 OHM
16 OHM
CONNECT SPEAKERS BEFORE USE
OUTPUT: 15 WATTS RMS
4
5
1 2 & 3
LOUDSPEAKER OUTPUTS
–––––––––––––––––––––––
IMPORTANT OPERATIONAL NOTE: With all-valve
amplifiers it is imperative that the amp is connected
to a load whilst in operation and that the impedance
output on the amp matches the total impedance of the
speaker cabinet being used. Failure to comply with
these points will result in damage to the amplifier.
The DSL15H features three outputs, a dedicated
16Ω output and two 8Ω outputs.
The DSL15H must not be run into an impedance of
less than 8Ω.
1. 16Ω SPEAKER OUTPUT
For the connection of a 16Ω speaker cabinet. It
should be noted that when this Speaker Output is
in use the remaining Speaker Outputs (2 & 3), are
not operational.
2. & 3. 8Ω SPEAKER OUTPUTS
For use when the total impedance of the speaker
cabinet(s) being used is 8Ω. That is, when using
either a single 8Ω cab or two 16Ω cabs.
FOOTSWITCH
–––––––––––––––––––––––––––––––––––
4. FOOTSWITCH JACK
For the connection of the supplied footswitch. This
allows you to switch between the Classic Gain and
Ultra Gain channels.
6
DSL15H Technical Specification
Power (RMS) 15W
C hannels 2
Weight (kg) 10.2
Valves 4 x ECC83 + 2 x 6V6
Size (mm)
W 500
H 240
D 235
PRESENCE
6
4
2
0
10
8
BASS
MIDDLE
TREBLE VOLUME GAIN VOLUME GAIN
Deep
Tone
Shift
Channel
Select
INPUT
POWER
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
EQUALISATION
ULTRA GAIN
CLASSIC GAIN
PRESENCE
p
6
4
2
0
1
0
6
4
2
0
1
0
8
BASS
MIDDLE
6
4
2
0
1
0
8
TREBLE
6
4
2
0
10
8
VOLUME
6
4
2
0
10
8
GAIN
6
4
2
0
10
8
VOLU
ME
6
4
2
0
1
0
8
GAIN
6
4
2
0
10
8
INPUT
POWER
DSL
15H
6
7
8
9
11
12
10
13
14
15
NOTE: The footswitch overrides the front panel
Channel switch.
OUTPUT POWER SELECTION
––––––––––––––––––––
5. PENTODE/TRIODE SWITCH
When Pentode (full power) is selected the amp’s
output capability is the full 15-Watts. When Triode
mode (half power) is selected, the amp’s output is
halved to 7.5 -Watts. Triode mode also produces a
smoother, less aggressive sound.
IMPORTANT OPERATIONAL NOTE: The amp
should always be off before switching between
Triode and Pentode.
6. MAINS INPUT SOCKET WITH FUSE
Your amp is provided with a detachable mains
(power) lead, which is connected here. The specific
mains input voltage rating that your amplifier has
been manufactured for is indicated on the rear
panel. Before connecting for the first time, please
ensure that your amplifier is compatible with your
electricity supply. If you have any doubt, please
seek advice from a qualified technician. Your
Marshall dealer will help you in this respect.
