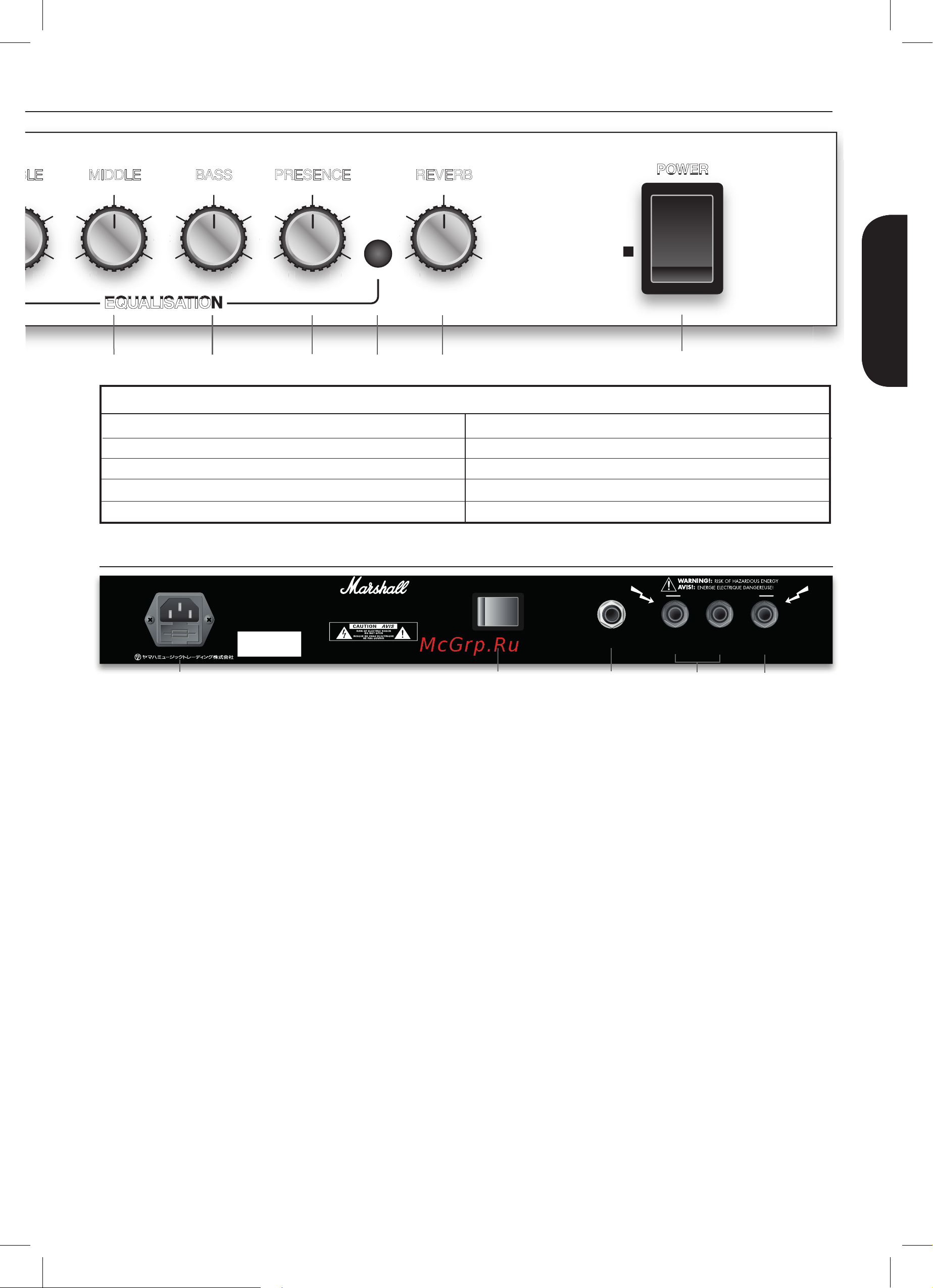

DSL15C Rear Panel Features (from Left to Right)
PENTODE
(Full Power)
TRIODE
(Half Power)
FOOTSWITCH
MAINS INPUT
230V ~ 50Hz
100 WATTS
FUSE
230V - T1AE250V
100-120V - T2AE250V
DSL15C
8 OHM
8 OHM
16 OHM
Designed, Engineered & Quality Controlled by:
Marshall Amplification plc
Bletchley, Milton Keynes, England
Made in Vietnam
LOUDSPEAKERS
CONNECT SPEAKERS BEFORE USE
OUTPUT: 15 WATTS RMS
MODEL:
2 3
6
4 & 5
GAIN
6
4
2
0
10
8
VOLUME
6
4
2
0
10
8
GAIN
6
4
2
0
10
8
VOLUME
6
4
2
0
10
8
TREBLE
6
4
2
0
10
8
MIDDLE
6
4
2
0
10
8
6
4
2
0
10
8
BASS
PRESENCE
6
4
2
0
10
8
REVERB
6
4
2
0
10
8
POWER
Channel
Select
Tone
Shift
Deep
INPUT
CLASSIC GAIN ULTRA GAIN
EQUALISATION
DSL
15C
6
4
2
0
1
0
8
CLASSI
6
4
0
10
8
C GAIN
SI
6
4
2
0
1
0
8
ULTRA
6
4
2
0
1
0
8
A GAIN
A
6
4
2
0
1
0
8
6
4
2
0
1
0
8
EQUALI
6
4
2
0
1
0
8
SATION
I
S
6
4
2
0
1
0
8
6
4
2
0
1
0
8
POWER
10
11
12 13
15
16
14
1. MAINS INPUT SOCKET WITH MAINS FUSE
Your amp is provided with a detachable mains
(power) lead, which is connected here. The specific
mains input voltage rating that your amplifier has
been manufactured for is indicated on the rear panel.
Before connecting for the first time, please ensure
that your amplifier is compatible with your electricity
supply. If you have any doubt, please seek advice
from a qualified technician. Your Marshall dealer will
help you in this respect.
OUTPUT POWER SELECTION
–––––––––––––––––––––
2. PENTODE/TRIODE SWITCH
When Pentode (full power) is selected the amp’s
output capability is the full 15-Watts. When Triode
mode (half power) is selected, the amp’s output is
halved to 7.5 -Watts. Triode mode also produces a
smoother, less aggressive sound.
IMPORTANT OPERATIONAL NOTE: The amp must
always be off before switching between Triode and
Pentode.
FOOTSWITCH
––––––––––––––––––––––––––––––––––––
3. FOOTSWITCH JACK
For the connection of the supplied footswitch. This
allows you to switch between the Classic Gain and
Ultra Gain channels.
1
DSL15C Technical Specification
Power (RMS) 15W
C hannels 2
Speaker 1x12"
Weight (kg) 16.8
Valves 4 x ECC83 + 2 x 6V6
Size (mm)
W 505
H 475
D 255
NOTE: The footswitch overrides the front panel
Channel switch.
LOUDSPEAKER OUTPUTS
–––––––––––––––––––––––
IMPORTANT OPERATIONAL NOTE: With all-valve
amplifiers it is imperative that the amp is connected
to a load whilst in operation and that the impedance
output(s) on the amp matches the total impedance
of the speaker cabinet(s) being used. Failure to
comply with these points will result in damage to
the amplifier.
The DSL15C features three outputs, a dedicated
16Ω output and two 8Ω outputs.
The DSL15C must not be run into an impedance
less than 8Ω.
IMPORTANT OPERATIONAL NOTE: The internal
speaker is 16Ω.
4. & 5. 8Ω SPEAKER OUTPUTS
For use when the total impedance of the speaker
cabinet(s) being used is 8Ω. That is, when using
either a single 8Ω cab or two 16Ω cabs.
6. 16Ω SPEAKER OUTPUT
For the connection of a 16Ω speaker cabinet. It
should be noted that when this Speaker Output is in
use the remaining Speaker Outputs (4 & 5) are not
operational.
