6
15. Pair LED: This LED will illuminate when DN-410X is paired with a Bluetooth audio device.
16. LED Meters: Displays the audio signal level of the main outputs.
17. Master Fader: Adjusts the speaker’s Main Out volume, which includes the Mic/Line
Inputs, Ext. In, and the audio of a paired Bluetooth device.
18. Stereo Aux Return: Controls the signal level returning from the Aux Inputs.
19. Phones/Monitor Knob: Adjusts the signal level sent to the Monitor Out and the Phones
Output.
20. Phones Output: Connect headphones to this stereo 1/4” (6.35mm) output.

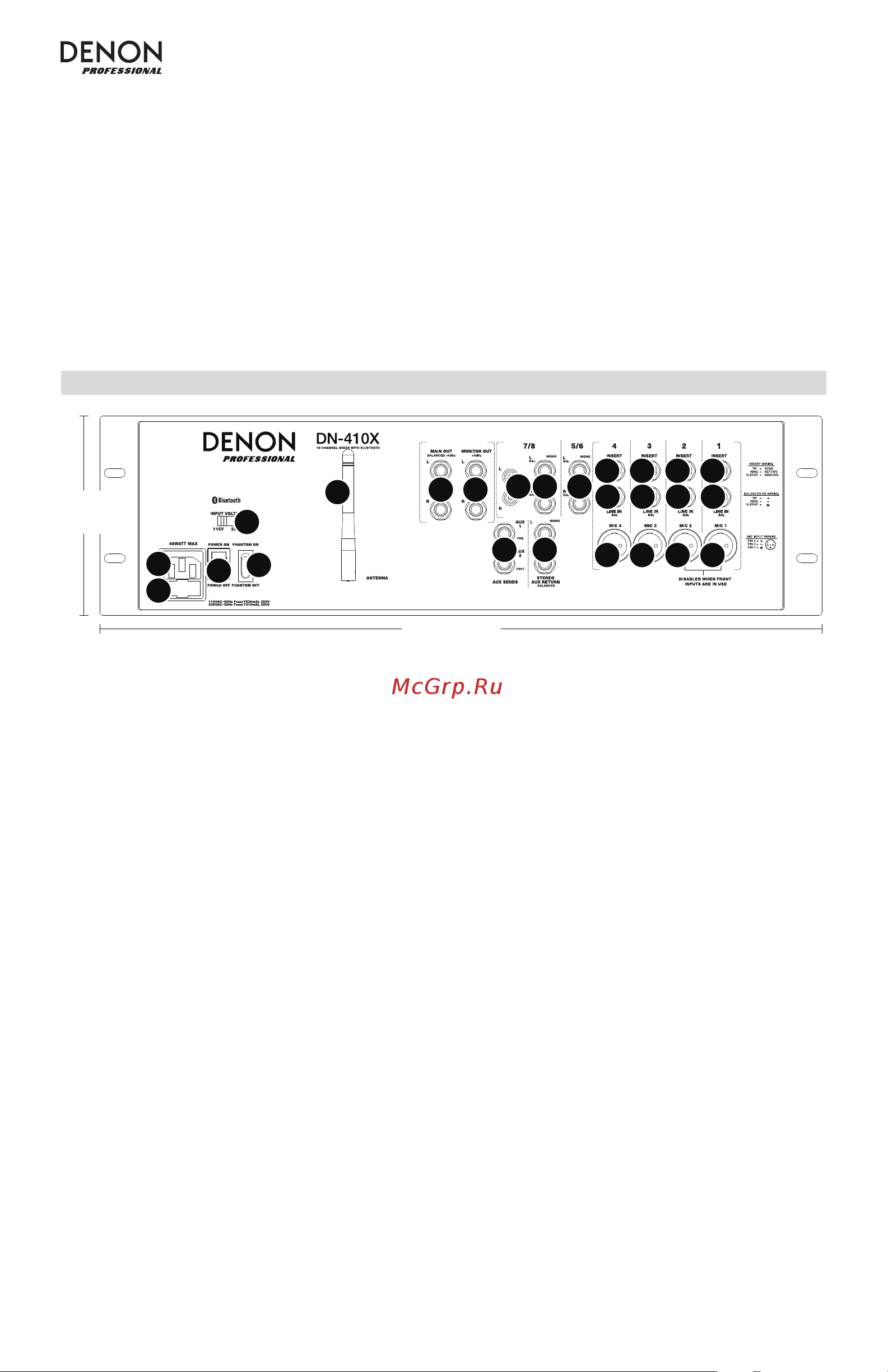

Rear Panel
8
6
5
4
3
1
2
9
7
10
12 12
13 13 13 13
13 13 13 13
14 14 14 14
11
1. Power Input: Insert the included power cable here.
2. Fuse: If the unit’s fuse is broken, lift this tab to replace the fuse. Replace it with a fuse
with an appropriate rating (printed under the unit’s power cable input). Using a fuse with
an incorrect rating can damage the unit and/or fuse.
3. Voltage Selector: Change this voltage selector setting only when necessary (e.g., when
traveling to a country or region with a different voltage). Selecting an improper voltage
setting can damage the unit.
4. Power On/Off Switch: Turns DN-410X’s power on or off.
5. Phantom Power Switch: Provides phantom power (+48V) for condenser microphones.
Phantom power is applied to the XLR Mic Inputs.
6. Antenna: Adjusts the reception of the signal that is being received from a Bluetooth
source such as a PC, Mac, iOS device, Android, etc.). DN-410X has a transmission range
up to 100 feet (30.5 meters).
7. Main Out: Use standard 1/4” (6.35mm) TRS cables to connect this output to the house
speaker, recorder, or amplifier system. Control the level of this output using the Master
Fader.
8. Monitor Out: Use standard 1/4” (6.35mm) TS cables to connect this output to your
monitor speaker or amplifier system. Control the level of this output using the
Phones/Monitor knob.
9. Aux Sends: Two mono 1/4” (6.35mm) TRS auxiliary sends allow you to connect effects
that can be blended in with the source (or “dry”) signals. One typical example is to use
one aux send for a reverb unit and the other for a monitor mix for the musicians.
5.25”
(13.3cm)
19”
(
48.3 cm
)
