Involight LED MH100 [5/12] Operation

LEDMH100 MOVING HEAD

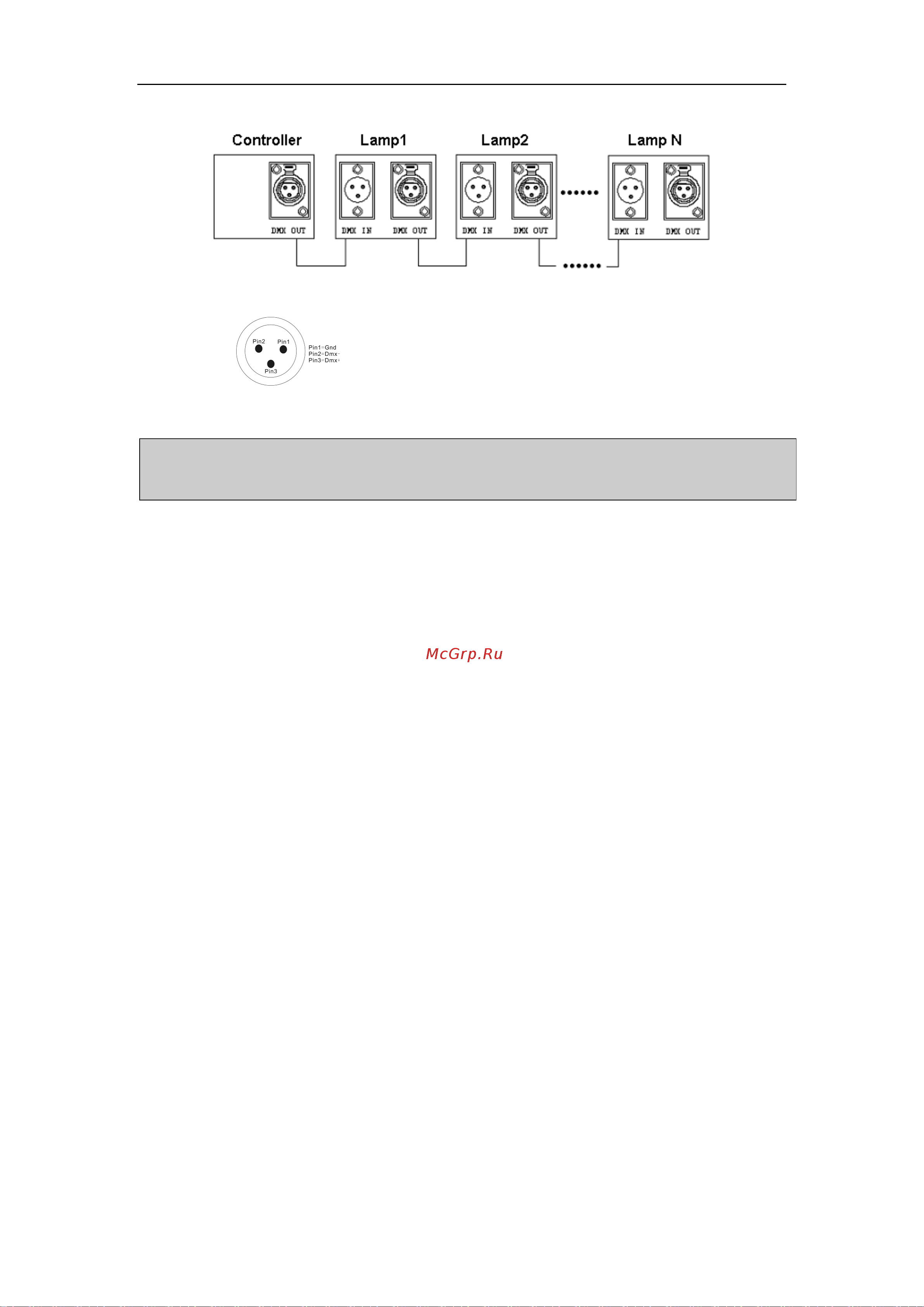

The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive

(S+).

2. LAMP BODY INSTALLATION

Notes: do not install it nearby the curtain or flammable materials.

Only for indoor use.

OPERATION

1.SET DIPSWITCHES

■Each fixture occupies 11 DMX channels.

■DMX 512 signal can control multi-fixtures together, however you must set DMX address of

each lamp first. Different DMX address will lead to different movements.

■You can set DMX address from 1~501 on the multi-function display panel.

■Switch on power supply and after finishing resetting, the panel will show 001,that is to say

DMX address is 1 and the first lamp has been controlled by 1~11channels.In turn the

second fixture has been controlled by 12~22 channels. (When panel shows 001,press

UP button until it shows 012.Then just press ENTER button). In the same way, the third

fixture has been controlled by 23~33 channels and the panel shows023.

■Through this method, you can control multi-fixtures to perform different movements.
