32
MSR250 Owner’s Manual
■

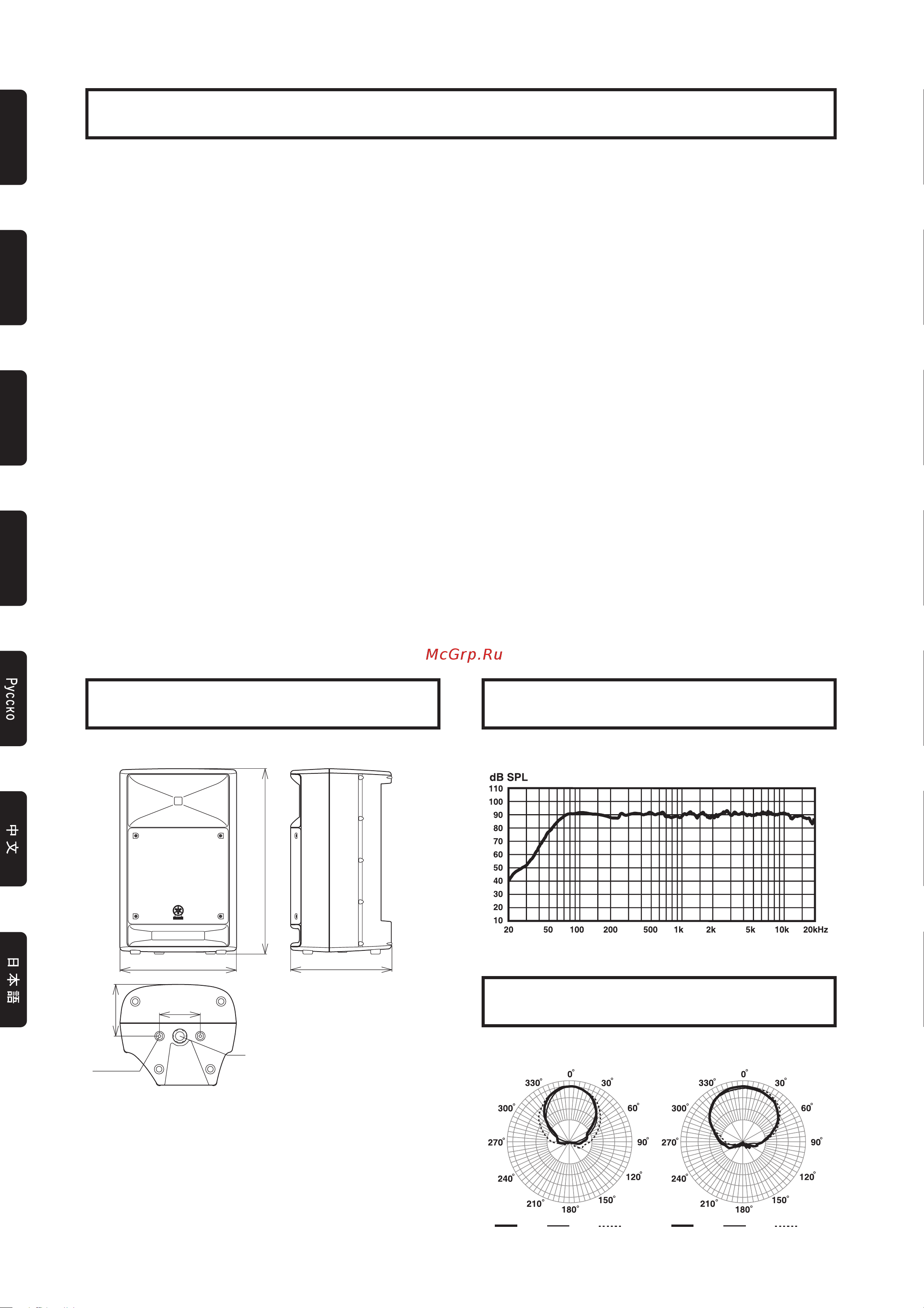

General Specifications
Type ............................................ 2-way Bass Reflex Powered
Speaker
Speaker Unit
LF: ........................................... 10” (25cm) Cone
HF: .......................................... 1” (2.54cm) Compression
Driver
Frequency Range ......................... 55 Hz–20 kHz (–10 dB)
Maximum Output Level ............... 116 dB (1m on Axis)
Directional Angle ......................... 90° (H)/40° (V)
Dimension (W
×
H
×
D)................ 342
×
544.5
×
298 mm
Weight......................................... 14.1 kg
Color ........................................... Black
Tripod Pole Diameter ................... 35–36 mm
Included Accessories .................... Power cord (AC inlet type,
2.5 m), Owner’s Manual
■
Amp. Unit
Maximum Output Power ............. 200 W at 1 kHz, THD=1%,
RL=4
Ω
Crossover Frequency.................... 4.0 kHz (LF: 12dB/oct,
HF: 12dB/oct.)
Input Sensitivity
INPUT 1 (XLR): ........................ –60 dBu*(MIC),
–30 dBu* (LINE)
(Phone): .................... –50 dBu*(MIC),
–20 dBu* (LINE)
INPUT 2/3 (Phone/RCA-pin): ... –20 dBu*
Input Impedance
INPUT 1: ................................. 6 k
Ω
(XLR), 2 k
Ω
(Phone)
INPUT 2/3: .............................. 10 k
Ω
Output Impedance ...................... LINK OUT: 600
Ω
Controls
LEVEL Control: ......................... INPUT1, 2/3
CH EQ LOW: .......................... ±3 dB at 60 Hz
HIGH: ......................... ±6 dB at 10 kHz
POWER Switch (ON/OFF)
Input/Output Connectors
INPUT 1: ................................. XLR-3-31 / PHONE
(balanced)
INPUT 2/3: .............................. PHONE / RCA-pin
(unbalanced)
Indicators
POWER Indicator: .................... Green LED
LIMITER Indicator: ................... Red LED
Power Consumption .................... 40 W
* 0 dBu=0.775 V
Frequency Response
Horizontal Directivity
Specifications
Dimensions
342
544.5
120
152
2-M8 x 25
298
Tr ipod pole diameter 35-36
* Use of the stand should refer to stand
manufacturer's instructions.
Unit: mm
Performance Graph
Directivity Diagram
6300
8000
10000
3150
4000
5000
6dB / div.
Unit: Hz
