4. Getting Started: About Instruments Nord Stage EX v6.x
Page 12
4. GETTING STARTED
ABOUT INSTRUMENTS
When “Instrument sections” or “Instruments” are referred to in the manual, this is a collective refer-
ence to the Organ, Piano and Synth instruments which can be all be active within a Program.
ABOUT PROGRAMS
A Program in Nord Stage EX basically contains all settings (instruments and effects etc.) when the
Program was saved. A Program can consist of a single instrument or a combination of up to six in-
struments and two Extern sections, which can be assigned to one ore more Keyboard Zones for split
and layered sounds.
Programs also contains settings for both Panel A and B (see “About Panel A & B” on page 14.
For more details about the Program memory architecture see “What is a Program?” on page 19.

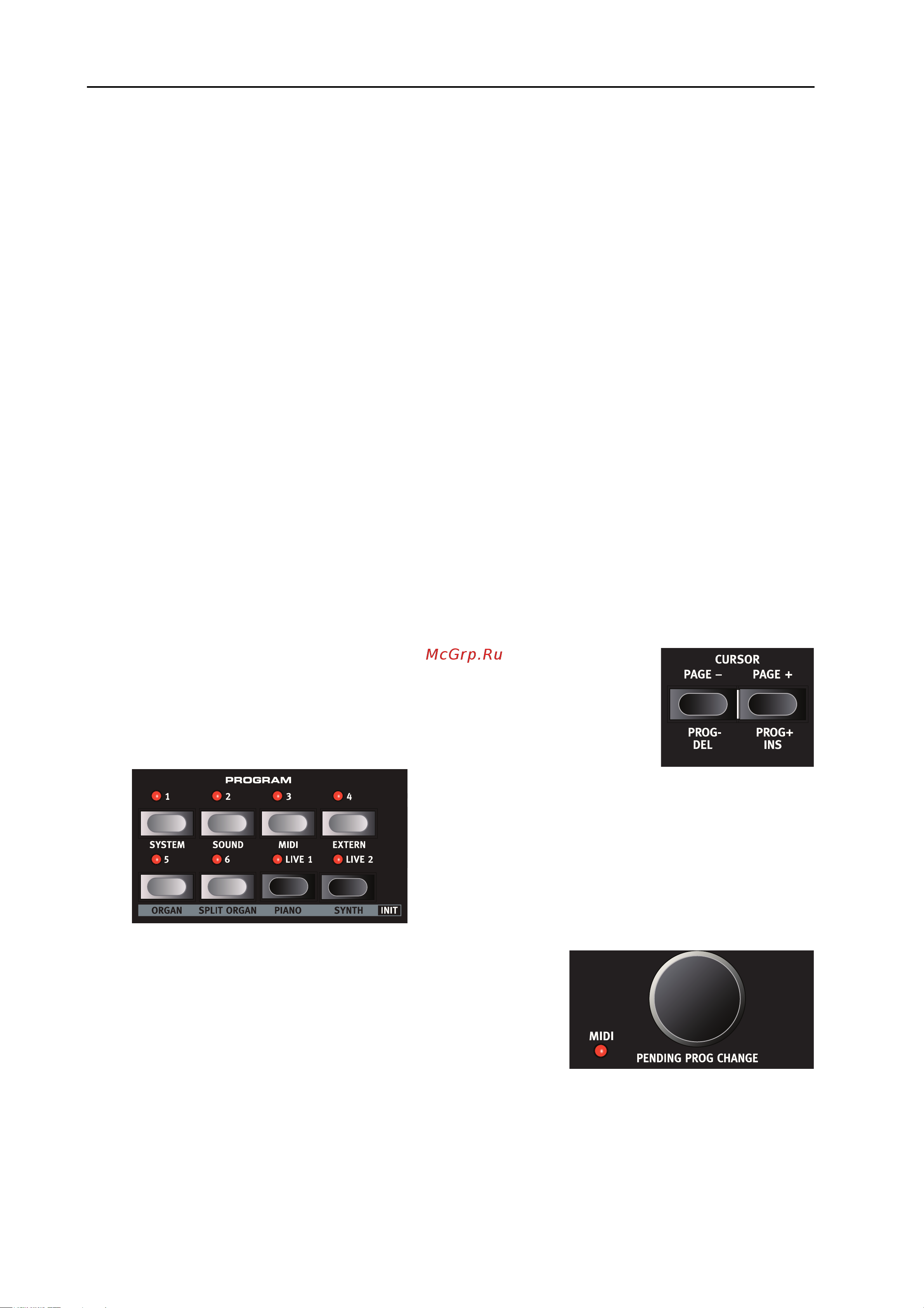

SELECTING PROGRAMS
The Program memory in Nord Stage EX consists of 21 Program Pages, with each Page holding 6 Pro-
grams for a total of 126 Programs. All Programs can be edited and replaced at any time. To select a
Program for playing/editing, proceed as follows:
1. Select a Page (1-21) by pressing the P
AGE -/+ buttons in the Program
section. Hold a P
AGE -/+ to scroll quickly through the Program Pages.
2. Select a Program on the current Page by pressing one of the six P
RO-
GRAM buttons 1 to 6.
• You can also use the V
ALUE DIAL to the right of the DIS-
PLAY to select Programs. By turning the knob you can con-
tinuously scroll between all Programs (on all Pages).
