LINE 6 XD-V35 [5/12] Xd v35
![LINE 6 XD-V35 [5/12] Xd v35](/views2/2009043/page5/bg5.png)
5

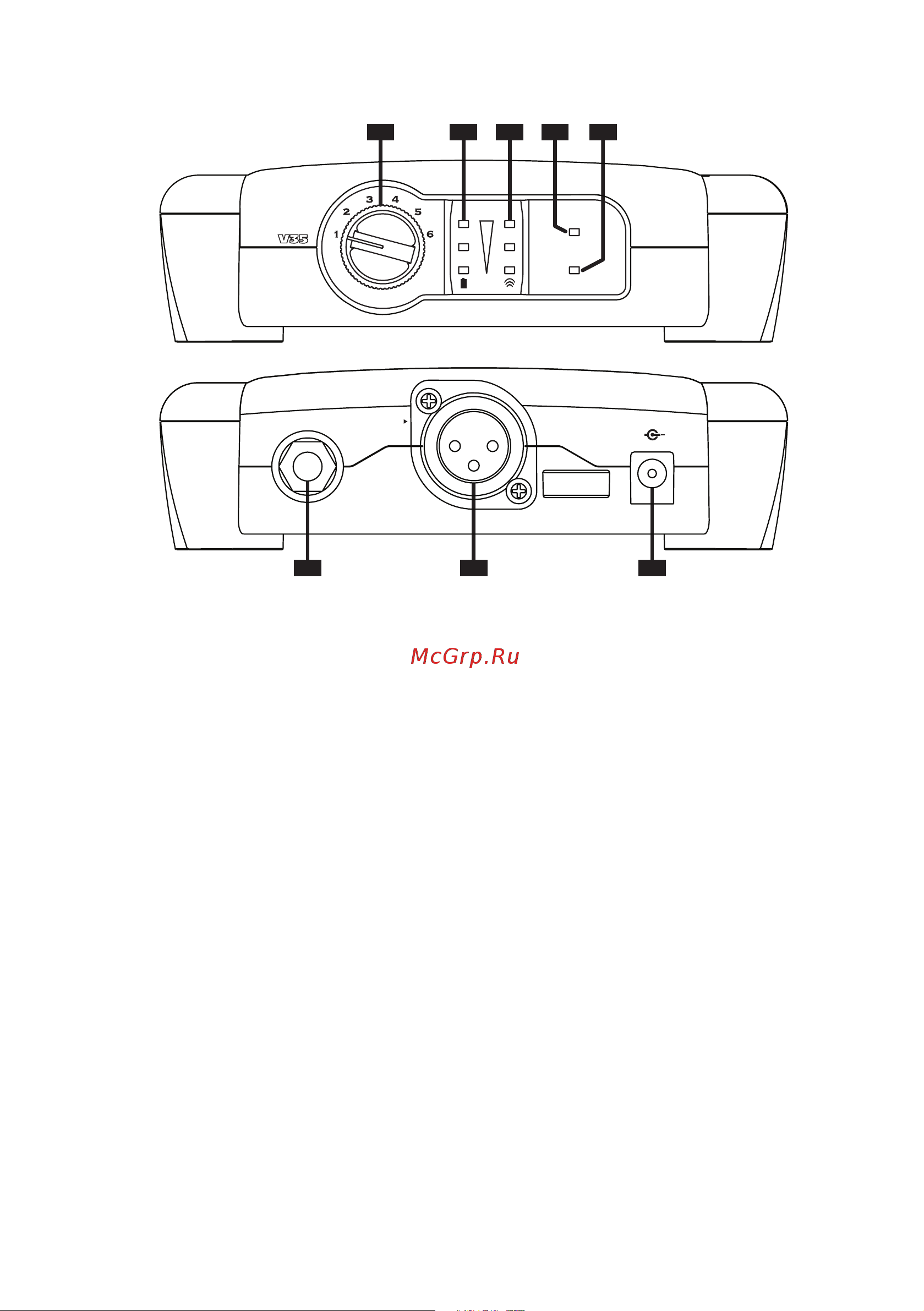

Xd-V35 digital WiReless Quick setuP
Receiver
8
6
7
1
2 3 4
5
+
9Vdc 200mA
BAL
OUT
RXT06
RECEIVER
UNBALANCED
OUT
CHANNEL
trans
status
audio
power
XD-
2.4GHz DIGITAL
WIRELESS SYSTEM
1. 6-Position Channel Select Knob
2. Battery Level Indicator LEDs – Lights green, with all lit indicating full transmitter battery;
bottom LED turns red when 1 hour remains, and flashes red when less than 40 minutes remain.
3. Transmitter Signal Level Indicator LEDs – RF lights green to indicate transmitter signal strength/
quality; with transmitter off, red lights indicate interference on that channel.
4. Audio LED – Green when audio signal present.
5. Power LED – Blue when on.
6. Unbalanced 1/4-Inch Audio Output Connector
7. Balanced XLR Audio Output
8. 9VDC Power Input Connector –
Plug the power supply cable into the receiver and AC power;
receiver will turn on. Turn the rotating
Channel Select knob to the desired channel (must match
transmitter channel). Connect with an audio cable to a mixer or similar. The receiver is ready to
use.
Note: The receiver antenna is internal.
