LINE 6 StageSource L2m [6/20] L2 t l2m
![LINE 6 StageSource L2m [6/20] L2 t l2m](/views2/2009048/page6/bg6.png)
L2t / L2m caLLoutS
1. LED – Thefront-panelLEDglowswhitewhenthespeakerispowered,ashesredwhenthelimitercircuitisactive,andglowsbluewhenreceiving
communicationfromStageScapeM20d.
2. Logo – TheLine6logobadgecanberotated90°.Gentlypulloutward,rotatetomatchthedesiredorientation,andsnapbackintoplace.
3. Handle – Thisrobustcarryinghandledoublesasastand,allowingtheL2t/L2mtobeangledupwardsat30°(seeillustration,belowleft).
4. Endcaps – The heavy-duty endcaps double as carrying handles.
5. Pole Mount and Accelerometer– Thepolemountaccommodatesstandard35mmdiameterspeakerpoles.Ifany“backline”modeischosen
(Keyboard,AcousticGuitar,ElectricGuitar),theL2t/L2mthenchecksitsorientation(viatheaccelerometer)andlookstoseeifitisonapole(via
thepolesensor).Ifthespeakerisverticalandnotonapole,theL2t/L2mactivates“virtualtilt-back”,whichoptimizesthespeakertuningtoachieve
anupwardtilttoitsmainaxis.Thishelpstoaimthesoundupwardtowardstheperformer’searswhenthespeakerisplacedontheground.
If the speaker is on a pole, virtual tilt-back is not activated. It is assumed that the speaker is elevated and is being aimed in the desired direction.
6. Suspension Points – TheL2t/L2mhasM10threadedattachmentpointsforsuspendingthespeaker—Twosuspensionpointsonthetop,two
suspension points on the bottom, and one pull-back point on the rear panel, located behind the lower kickstand.
7. Kickstands – Twoback-panelkickstandsipout,allowingtheL2t/L2mtobeangledupwardsat60°(seeillustration,belowright).
8. Side Panel (L2t only) – Thesidepanelcontainsthemusician-centricinputsandcontrolsyou’llusemostoften.
9. Rear Panel – TherearpanelcontainstheP.A.-centricinputs,outputs,andcontrols.

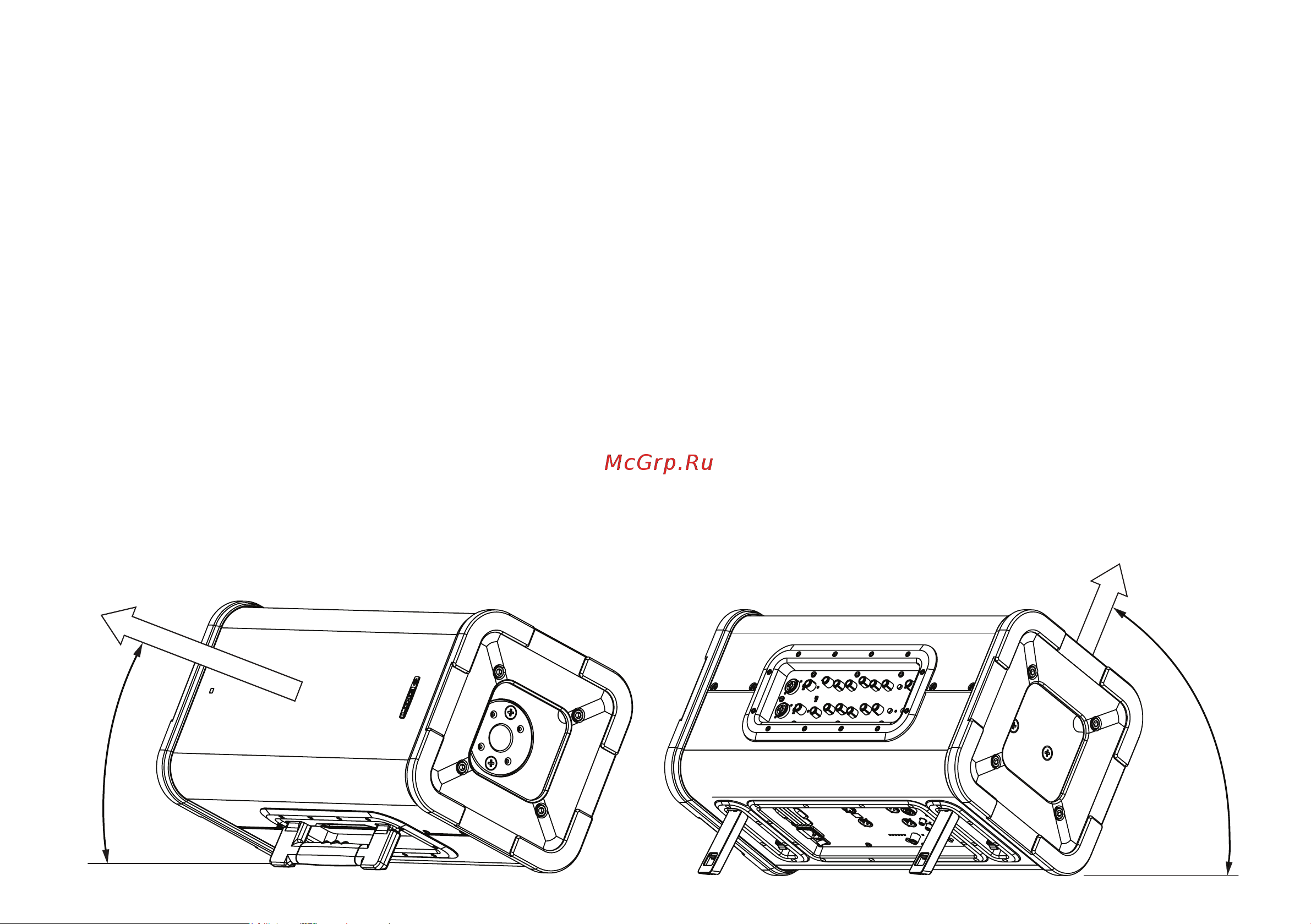

As oor monitor with handle as stand
(30° upward angle)
As oor monitor with kick stands
(60° upward angle)
30°
60°
