Editing
3•4
• For AutoFX your choices are AmpSetFX, which means your FX will change when
you change Amp Models, or Disabled, meaning your FX don’t change when you
change Amp Models. Turn the Presets knob left or right to make your selection.
Setup

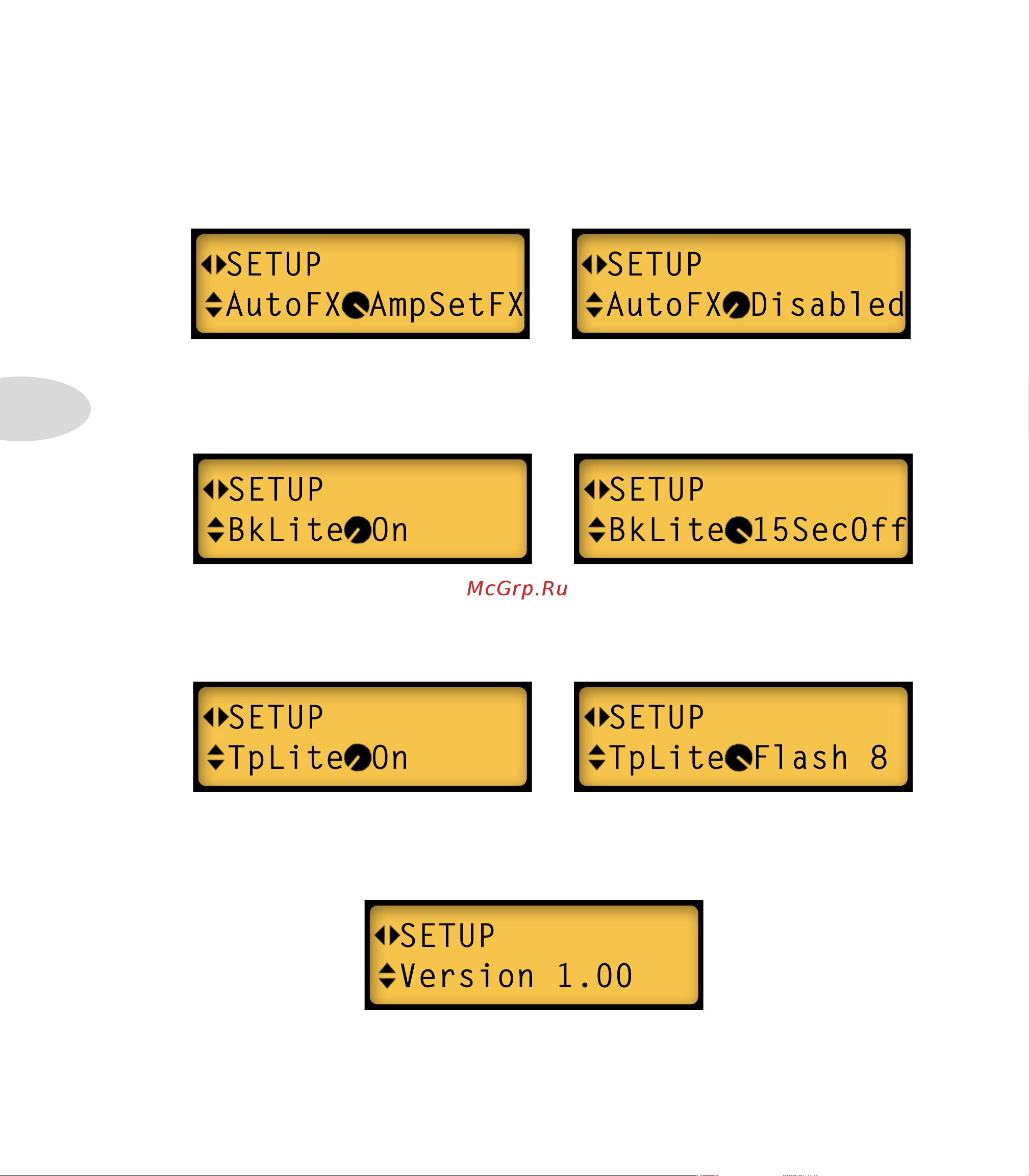

In Setup Mode there are 4 screens: Auto FX, Back Light, Tap Light and Version number.
To edit them, press the Presets knob to enter Edit Mode, then press the left/right arrows
until SETUP is displayed. Press the up/down arrows to display the following in the LCD:
• Press the down arrow to edit BkLite. Your choices are On, meaning the LCD will
always be lit, or 15SecOff, which means the LCD back light will turn off after 15
seconds of inactivity. Turn the Presets knob left or right to make your selection, then
press the down arrow to go to the next screen.
• For TpLite your choices are On, meaning the TAP light will always flash the current
tempo, or Flash 8, which means the TAP light will flash 8 times after the most recent
activity, then it will stay off. Turn the Presets knob to make your selection.
• The fourth Setup screen displays the current Flash Memory Version you’re running
in your Spider IV. This display cannot be edited.
