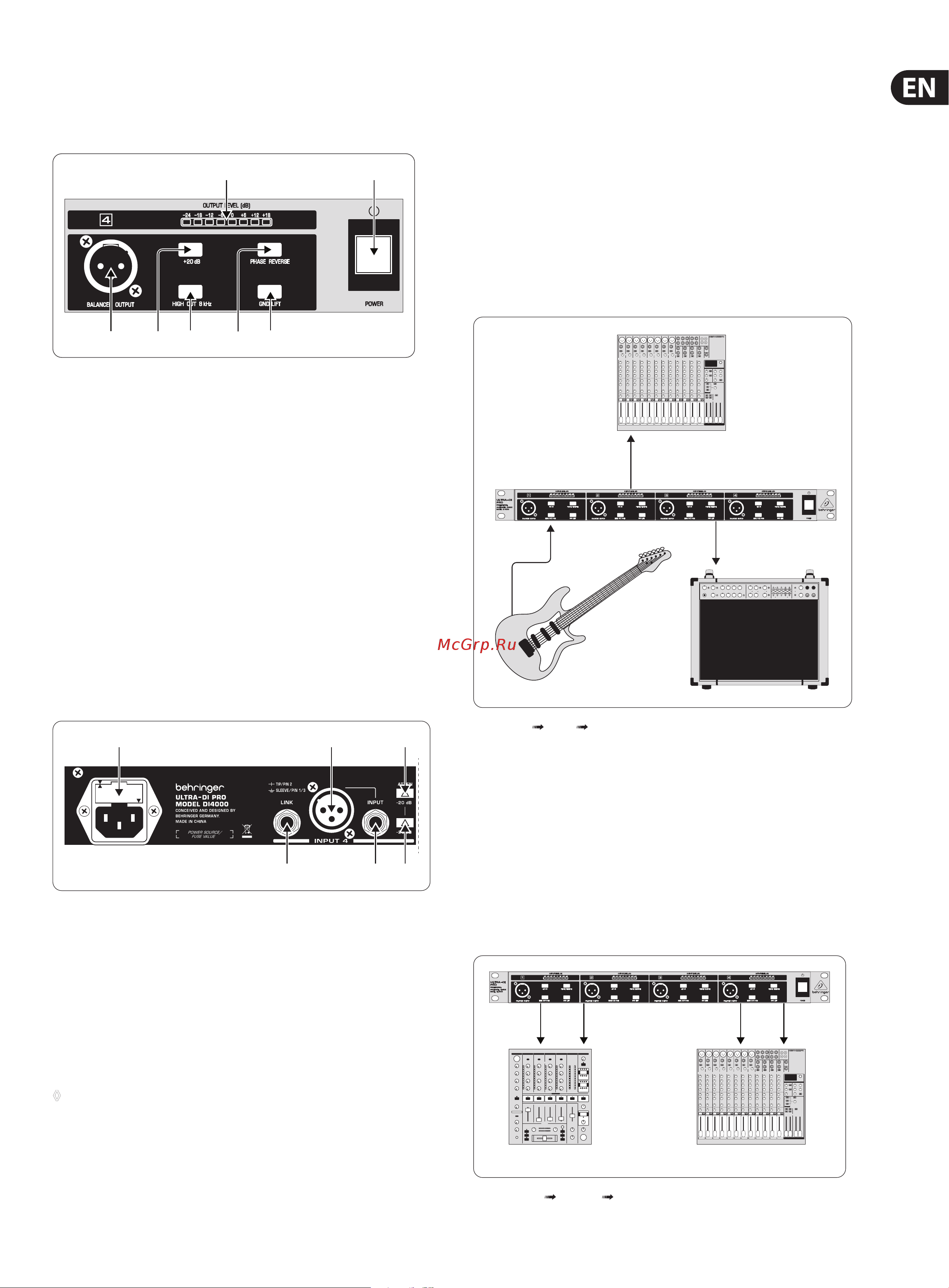

5 ULTRA-DI PRO DI4000 User Manual
1.3 Control elements
The BEHRINGER ULTRA-DI PRO has four identical channels. The control elements
are identical on all channels.
(6) (7)
(2) (4)(1) (3) (5)
Fig. 1.1: Control and display elements on the front panel
(1) OUTPUT. This is the balanced output of the ULTRA-DI PRO. The connection
to the mixing desk should be made with a standard high-quality
balancedcable.
(2) +20 dB gain switch for pre-amplication of low level signals.
(3) Switchable HIGH CUT lters (8 kHz) for guitar applications (6 dB/Oct).
(4) With the PHASE REVERSE switch the input signal is reversed in phase
by180°.
(5) Use the GND LIFT switch to either connect the ground of input and output
or keep them completely separate. Depending on the grounding of the
connected devices linking or disconnecting will reduce hum or prevent
ground loops. GROUND LIFT on means no interconnection.
(6) The OUTPUT LEVEL meter displays the output level of the Ultra-DI PRO in a
range from -24dB to +18dB.
(7) Use the POWER switch to turn on the BEHRINGER ULTRA-DI PRO.
(11)
(12)
(13)
(10)(8) (9)
Fig. 1.2: Rear panel elements of the BEHRINGER Ultra-DI PRO
(8) LINK. This is the unbalanced parallel output of the ULTRA-DI PRO.
Connectthis to the input of the backline or monitor amplier.
(9) INPUT. Connect the source to this ¼" jack to input the signal.
(10) and (13) The -20 dB ATTENUATION switches greatly increase the operating
range of the ULTRA-DI PRO. From the low level signals of a high impedance
guitar to the hot speaker terminals of a PA amplier. Depressingboth will
give 40 dB attenuation.
◊ Only use the ‑20 dB switches if you are sure the Ultra‑DI PRO is
clipping (overloading) and not your mic pre‑amp. Always use as little
attenuation as possible to get the best possible signal‑to‑noise ratio.
(11) FUSE HOLDER/VOLTAGE SELECTOR. Please make sure that the voltage
indicated on the unit matches your local voltage, before you attempt to
connect and operate the VINTAGER AC112. Blown fuses may only be replaced
by fuses of the same type and rating. Some models allow for inserting the
fuse holder in two dierent positions, in order to switch over from 230 V
to 115 V operation, and vice versa. Please note that for 115 V operation
outside Europe, you need to use a fuse of a higher rating (see chapter3
“Installation”). Use the enclosed power cord to connect the unit to themains.
(12) To provide maximum exibility the ULTRA-DI PRO is also tted with an
unbalanced XLRINPUT to connect the source.
2. Applications
2.1 Tapping signal from a (bass) guitar
Microphone Input
Out
DI4000
In Link Out
Fig. 2.1: Guitar DI box Guitar Amp/Mixer
This gure shows the standard application of any Direct Inject box. The signal to
the amplier is unaected, it is just tapped o to be routed to the microphone
input of the mixer. Especially bass guitars benet from this application. It is
dicult to nd a microphone which handles high level low frequencies well and
with a linear frequency response. Using the ULTRA-DI PRO will give you clean and
crisp sound. Connect the ULTRA-DIPRO after any eects devices, so that their
eect will be heard over the PA system or on the recording.
2.2 Converting the output of a keyboard /
DJ-mixer / headphone plug
Out OutIn In
Microphone Inputs Pan left and right
Fig. 2.2: DJ-mixer 2 x DI box mixer
