6 XENYX X1204USB/1204USB User Manual
CLIP-LED
The CLIP LED lights up when the input signal is driven too high. In this case,
turndown the GAIN control and, if necessary, check the setting of the channel EQ.
SOLO
The SOLO switch (X1204USB only) is used to route the channel signal to the
solo bus (Solo In Place) or to the PFL bus (Pre Fader Listen). This enables you to
monitor a channel signal without aecting the main output signal. The signal
you hear is sourced either before (PFL, mono) or after (solo, stereo) both the pan
control and the channel fader (see chapter 2.3.6 “Level meters and monitoring”).
The channel fader determines the level of the channel signal in the main mix
(orsubmix).
2.2 Stereo channels
2.2.1 Channel inputs

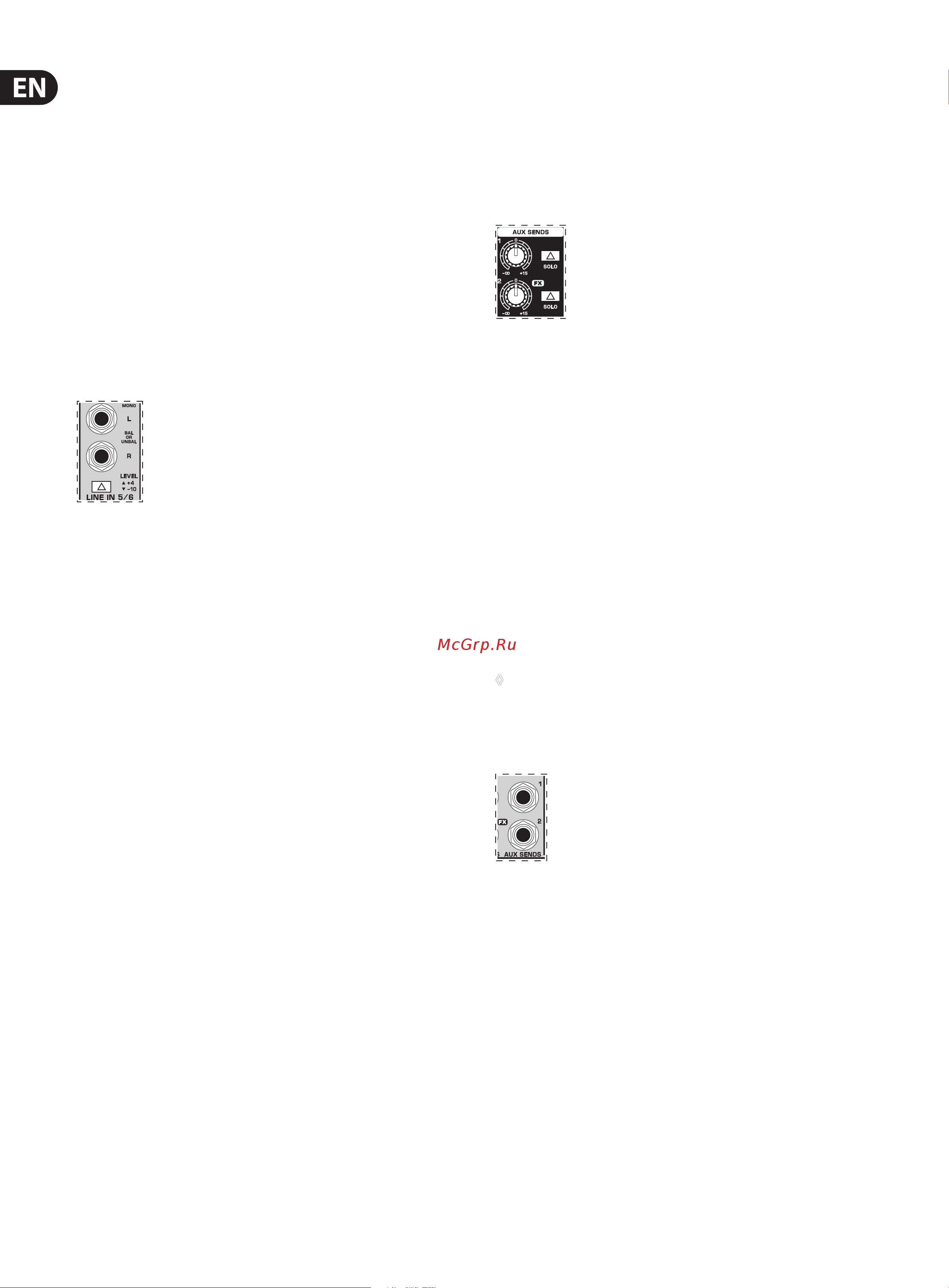

Fig. 2.5: Stereo channel inputs and LEVEL switch
Each stereo channel has two balanced line level inputs on ¼" connectors for left
and right channels. If only the connector marked “L” is used, the channel operates
in mono. Stereo channels are designed to handle typical line level signals.
Both inputs can also be used with unbalanced jacks.
LEVEL
For level matching, the stereo inputs feature a LEVEL switch which selects
between +4 dBu and -10 dBV. At -10 dBV (home-recording level), the input is
more sensitive than at +4 dBu (studio level).
2.2.2 Equalizer stereo channels
The equalizer of the stereo channels is, of course, stereo. The lter characteristics
and crossover frequencies are the same as those of the mono channels. A stereo
equalizer is always preferable to two mono equalizers if frequency correction of a
stereo signal is needed. There is often a discrepancy between the settings of the
left and the right channels when using separate equalizers.
2.2.3 Aux sends stereo channels
In principle, the aux sends of the stereo channels function in just the same way as
those of the mono channels. As aux send paths are always mono, the signal on a
stereo channel is rst summed to mono before it reaches the aux bus.
2.2.4 Routing switch, solo and channel fader
BAL
The function of the BAL(ANCE) control corresponds to the PAN control in the
mono channels.
The balance control determines the relative proportion between the left and
right input signals before both signals are routed to the main stereo mix bus.
The MUTE/ALT 3-4 switch, the MUTE-LED, the CLIP-LED, the SOLO switch and the
channel fader function in the same way as the mono channels.
2.3 Connector panel and main section
Whereas it was useful to trace the signal ow from top to bottom in order to gain
an understanding of the channel strips, we now look at the mixing console from
left to right. The signals are, so to speak, collected from the same point on each of
the channel strips and then routed to the main section all together.
2.3.1 Aux sends 1 and 2
Fig. 2.6: AUX SEND controls of the main section
A channel signal is routed to aux send bus 1 if the AUX 1 control is turned up on
the corresponding channel.
AUX SEND 1 (MON)
The AUX SEND control MON acts as master control for aux send 1 and determines
the level of the summed signal. In the X1204USB, the MON control is called
AUXSEND 1.
AUX SEND 2 (FX)
Similarly, the FX control (AUX SEND 2) determines the level for aux send 2.
SOLO
You can use the SOLO switch (X1204USB only) to separately monitor the aux
sends via the CONTROL ROOM/PHONES outputs and check these with the
levelmeters.
◊ If you want to monitor the signal of just one AUX bus, none of the other
SOLO SWITCHES should be pressed and the MODE switch must be in the
SOLO position (not pressed down).
2.3.2 Aux send connectors 1 and 2
Fig. 2.7: Aux send connectors
AUX SEND 1
If you use aux send 1 pre-fader, you would usually connect the AUX SEND 1
connector to monitors via a power amp (or an active monitor system). If you use
aux send 1 post-fader, proceed as described under aux send 2.
AUX SEND 2
The AUX SEND 2 connector outputs the signal you picked up from the individual
channels using the FX control. You can connect this to the input of an eects
device in order to process the FX bus signal. Once an eects mix is created,
theprocessed signal can then be routed from the eects device output back into
the STEREO AUX RETURN connectors.
