JBL PMB Pole Mount Bracket [2/3] Pmb for control crv

For Smaller-Diameter Drop Tubes

2B. When using a smaller drop tube, use the pole bushing

when running the wiring down through pole-mount-bracket cap.

This will help to eliminate pole wobble.

3. Slide the clevis pin through the aligned holes in the pole-

mount bracket and drop tube. Secure the clevis pin by inserting

the cotter pin through the hole in the clevis pin.

Pole Bushing

Pole-M ount-B racketC ap

Drop Tube

Pole-M ountBracket

C levis Pin

C otterPin

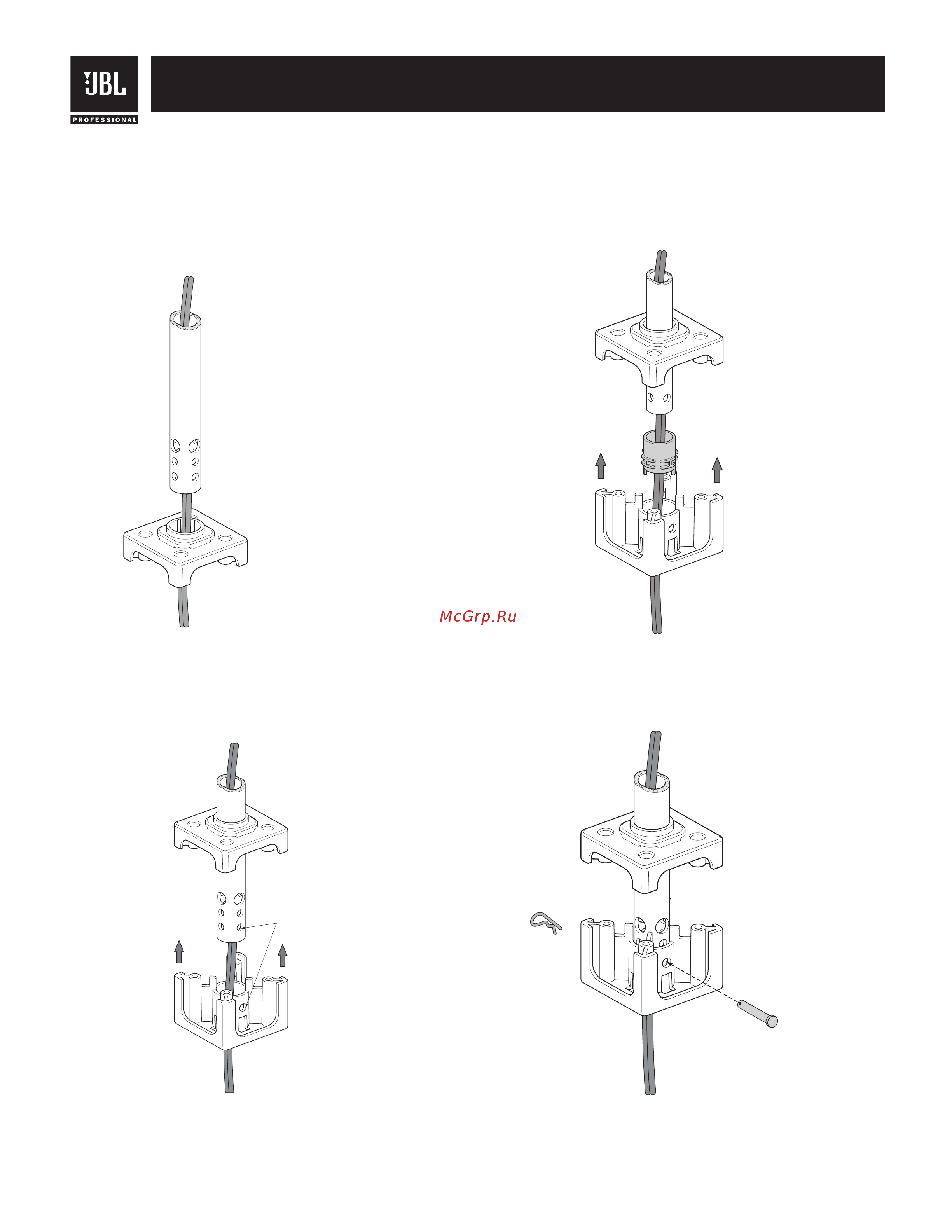

ATTACHING POLE TO POLE-MOUNT BRACKET

For Larger-Diameter Drop Tubes

1. Run the appropriate wiring down through the drop tube. Slide

the drop tube through the pole-mount-bracket cap.

2A. Slide the pole-mount bracket up onto the drop tube,

aligning the pinholes on the bracket with those on the drop

tube.

PMB for CONTROL CRV

Pole-M ount-BracketCap

Drop Tube

Pole-M ountB racketCap

Drop Tube

Pole-M ountBracket

Pinholes
