4. The pole-mount bracket can now hold the weight of the
speakers.
SPEAKER MOUNTING
1. Set the tap selector switches to the desired 70V/100V tap.
THRU position is not advised due to parallel speakers providing
too low of an impedance for most low impedance power
ampliers.
2. Connect the stripped bare wires to the input terminals of the
JBL Control CRV speakers.

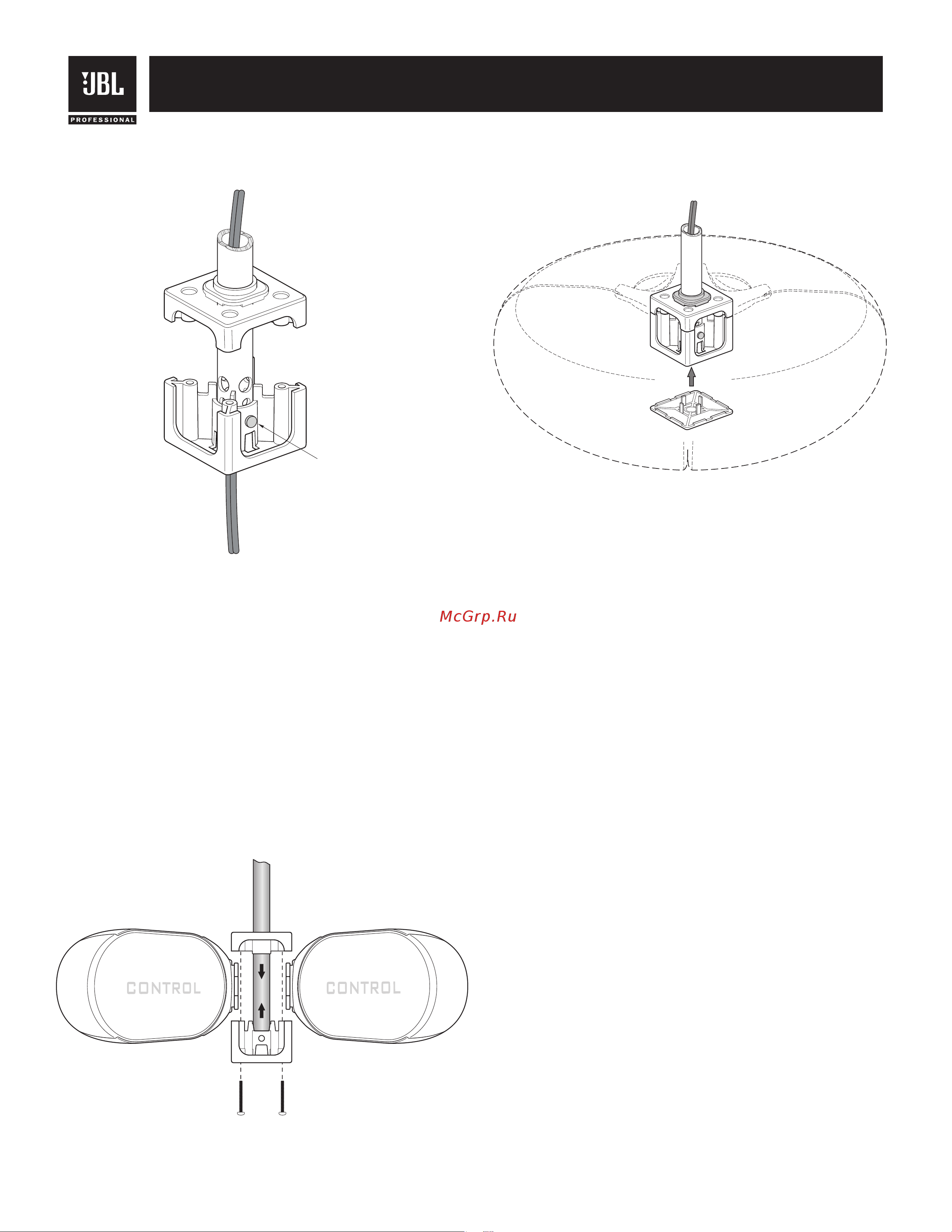

3. After carefully placing all four speakers in the mounting
bracket, lightly jostle the speakers into place so that the pole-
mount-bracket cap will slide down into place. Tighten the pole-
mount-bracket assembly with the four #10-32 x 2” (M5 51 mm)
screws provided.
C levis Pin
Pole-M ount-BracketC ap
Drop Tube
Pole-M ountBracket
PMB for CONTROL CRV
3
4. Place the pole-mount-bracket cover over the bottom visible
mounting bracket by snapping it into place.
#10-32 x 2"Screw s (4)
Drop Tube
Pole-M ount-BracketCap
Pole-M ountBracket
O nly tw o speakers show n here
for clarity.
Pole-M ountB racketC ap
Drop Tube
CONTACTING
JBL PROFESSIONAL
These products are designed and backed by JBL Professional,
the world leader in professional sound reinforcement. For
complete warranty information, to order replacement parts or to
ask for clarications to this manual, contact JBL Professional.
Within the United States:
Applications Department, JBL Professional
8500 Balboa Blvd., PO Box 2200
Northridge, CA 91329 USA
In the USA you may call Monday through Friday 8:00am to
5:00pm Pacic Coast Time (800) 894-8850.
Outside the USA:
Contact the JBL Professional Distributor in your country.
A list of JBL Professional Distributors and US Service Centers
can be obtained from the JBL Professional website at: www.
jblpro.comperformance.
SS PMB 06/09
