SPEAKON OUT A

SPEAKON OUT B

19. CH 4 LINK OUT/DSP OUT SWITCH. Press the switch to use output 18 as an auxiliary XLR balanced output

controlled via the K-Framework software.

20. CH 5/6 AES/EBU INPUT. XLR input connector for two-channel AES/EBU digital audio, accepting sample

rates from 32 kHz – 96 kHz.

21. CH 5/6 AES/EBU OUTPUT. XLR output, providing two-channel digital audio from ch 5/6 AES/EBU input,

at a sample rate of 48 kHz.

22. POWER OUT A. Speakon output to drive passive speakers. 1+/1- provides OUT A1, 2+/2- provides OUT

A2.

23. POWER OUT B. Speakon output to power passive speakers. 1+/1- provides OUT B1, 2+/2- provides OUT B2.

11.3 REMoTE CoNTRoL

CH 5 - 6

24. REMOTE RS485 LINK INPUT. XLR input for

connecting the amplifier from another RS485

device in a K-Framework network. RS485 Link

Input can also be used to connect a computer

running the K-Framework software (requires

K-USB USB-to-RS485 adapter).

25. REMOTE RS485 LINK OUTPUT. XLR output

for connecting additional RS485 devices in a

K-Framework network.

26. REMOTE USB Input. Connects a computer running the K-Framework software, for remote control of

the amplifier. Users can manage an entire network of RS485 devices with one PC connected via USB.

27. EXTENSION CONNECTOR. Multi-pin connector for various K-array extension modules, for wireless

control and audio transmission, memory extension, digital signal encoding and audio reproduction.

28. KA-POT1 CONNECTOR. These two analog GPIO ports allow the user to control same amplifier’s

parameters using the K-POT1 accessory. See Section 14 for further information about these feature.

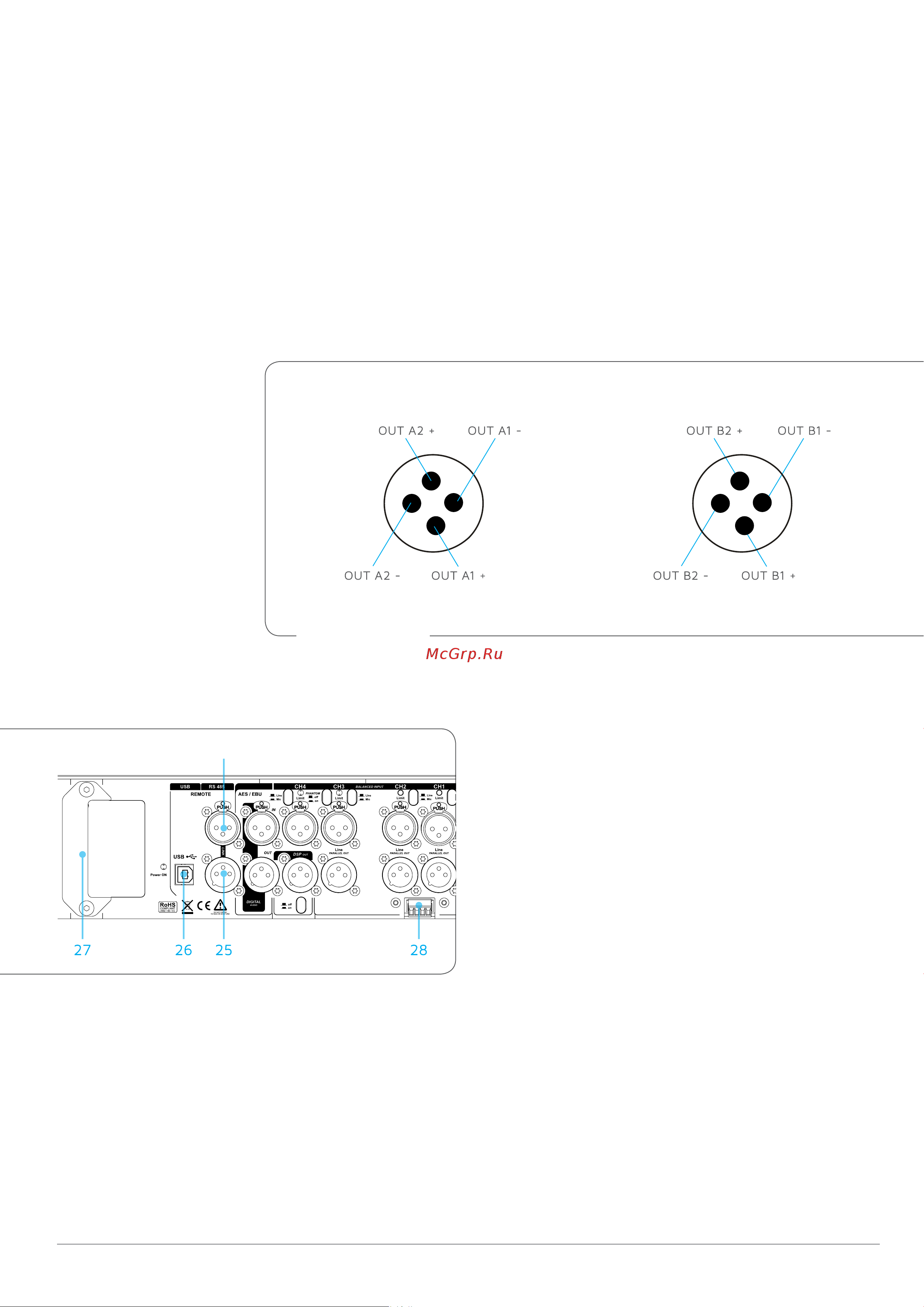

Speakon wiring diagram
