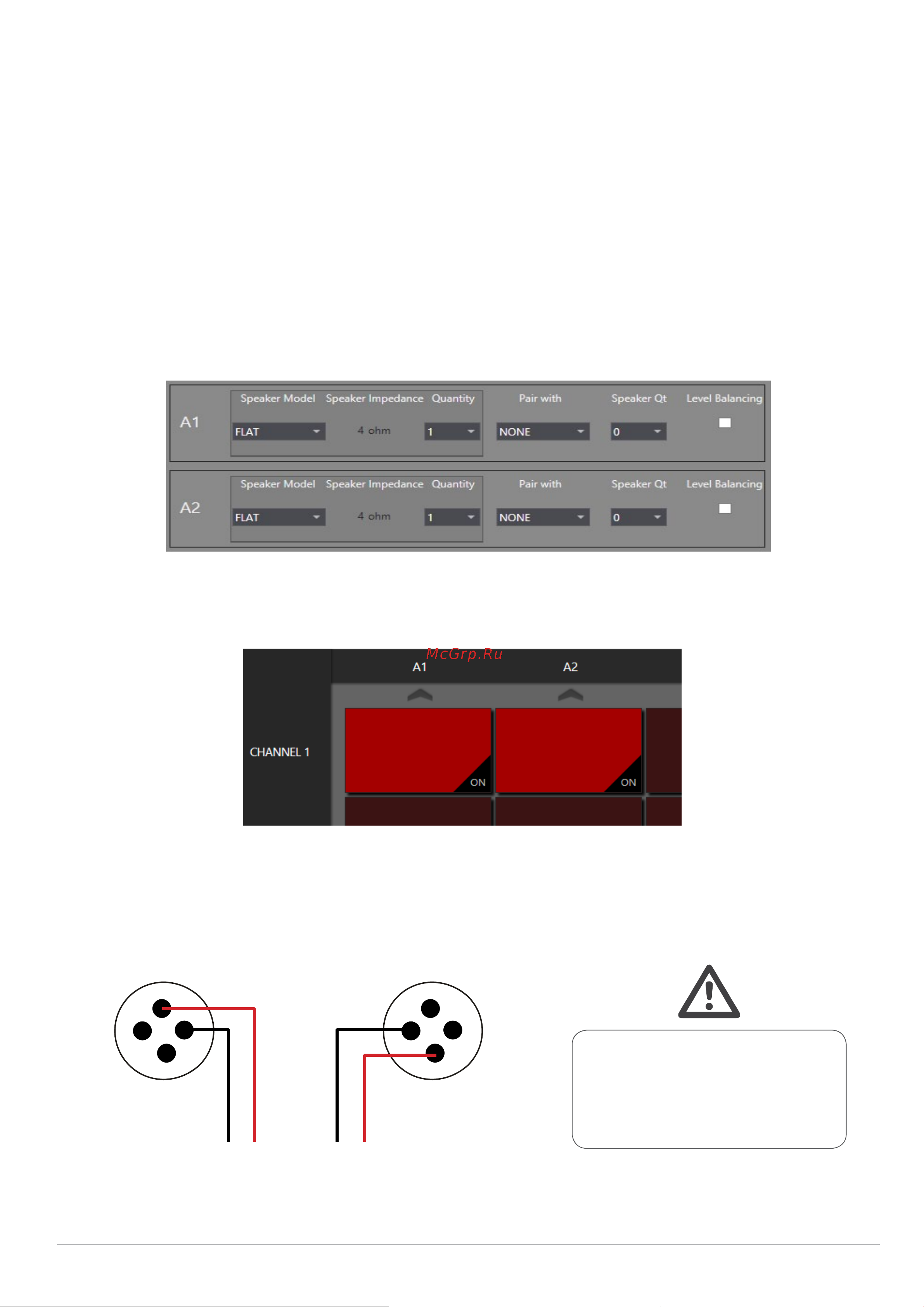

11.4 BRIDGE MoDE

The bridge configuration is optional for end users who want to drive third party loudspeakers using

K-array amplifiers. K-array speakers ARE NOT designed to use the bridge configuration if not specified

on the official user’s manual.

The extra power that the bridge configuration can deliver can damage K-array speakers if not used under

K-array specifications.

To use the bridge configuration, follow the instruction below:

1. In the Output Configuration Page (on the touch screen or via the K-framework software) select the

same preset on both channels (A1 and A2 or B1 and B2).

2. In the Matrix Page, send the same signal to both outputs.

3. On the KA24 take the signal from 2+ (positive) 1- (negative). On the KA84 take the signal from 1+

(positive) 2- (negative).

KA24

KA84

Bridge mode will provide

KA24: 2 x 1000 W @ 8 Ω

KA84: 2 x 4000 W @ 8 Ω
