SPECIFICATIONS:

ARCHITECTS AND ENGINEERS SPECIFICATIONS:

The microphone shall be of the condenser type with a cardioid polar pattern. The microphone

shall operate on 48-52 Volts phantom power and the nominal output impedance shall be equal

to 250 ohms at 1 kHz. The microphone shall have a sensitivity of 24 mV / Pa at 1 kHz. The

microphone shall have a maximum SPL level of ≥138 dB with a THD of 0.5%. The microphone

shall have a steel mesh grill and a body of die cast zinc alloy with dimensions of 24 mm diameter

at the base, 50 mm in diameter at the and 180 mm in length. The microphone shall be the Audix

VX10.

Transducer Type Condenser

Frequency Response 40 Hz - 20 kHz

Polar Pattern Cardioid

Output Impedance 250 ohms

Sensitivity VX10 - 24 mV / Pa @ 1k

VX10-Lo - 4 mV / Pa @ 1k

Equivalent Noise Level 19 dB (A weighted)

Signal to Noise Ratio 75 dB

Off Axis Rejection >20 dB

Maximum SPL ≥138 dB

Dynamic Range 119 dB

Power Requirements 48 - 52v phantom

Connector Switchcraft® male

XLR connector

Polarity Positive voltage on pin

2 relative to pin 3 of

output XLR connector

Housing / Finish Die Cast Zinc

Brass capsule housing/

Black E-coat

Weight 318.6 g / 11.24 ounces

Length 180 mm / 7.1 inches

OPERATION:

The VX10 is a low impedance microphone and should be plugged into a “mic level” input on your

console, mixer, or recording device. The VX10 requires phantom power and will NOT operate

without phantom power voltage (48 Volts recommended) which is available on most professional

mic preamps and mixing devices. If phantom power is not available on your equipment, you will

have to procure a phantom power supply (such as the Audix APS2).

Avoid plugging or unplugging the microphone from a PA system unless the channel is muted or the

volume of the system is turned down. Failure to do so may result in a loud “popping” noise which

could seriously damage the speakers in the PA system.

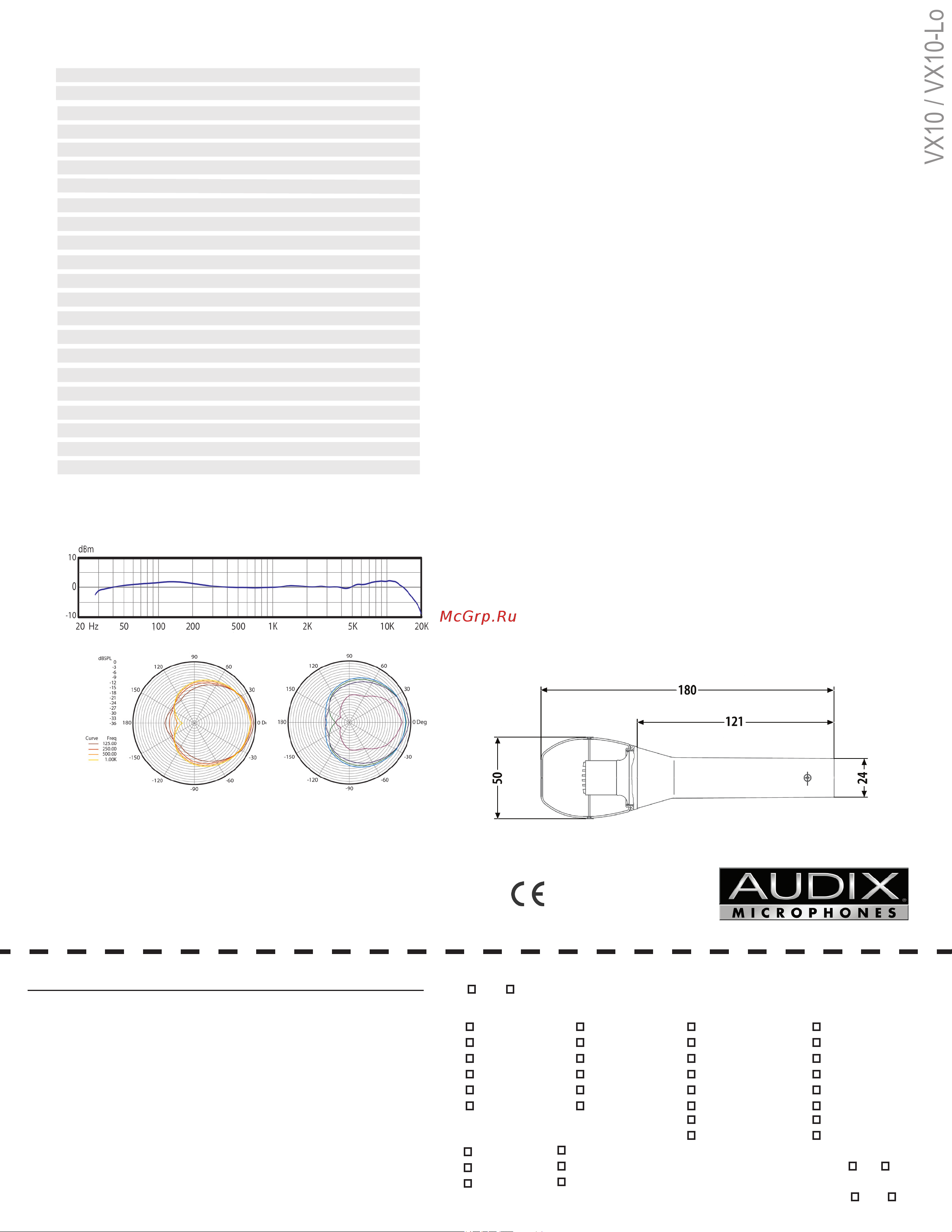

FREQUENCY / POLARS:

USER TIPS:

The VX10, an excellent choice for lead and background vocals, has a cardioid pick-up pattern which

helps to minimize sound from other instruments on stage from “bleeding” into the microphone.

The VX10 is highly sensitive and will accommodate working distances of 1-12 inches from the

performers mouth. Depending on the instrumentation and volume on stage, the vocalist may have

to experiment to nd the optimum working range.

When using stage monitors, avoid pointing the back of the microphone directly into the stage

monitor. Instead, set the microphone at an angle parallel to the oor, putting the angle of the mic on

a dierent plane with the angle of the monitor.

Allow a distance of 2-3 feet between microphones to avoid phase cancellation issues.

RECORDING:

The VX10 technology is derived from the Audix SCX series, which was developed specically

for high quality recording applications. For this reason, the VX10 can be used successfully to

record practically any acoustic instrument. Simply point the microphone towards the sound

source, being careful that the mic is the correct distance in order to avoid distortion.

Because of the smaller diaphragm and cardioid pick-up pattern, close miking techniques may be

employed to minimize the room sound and maximize the sound of the instrument.

*Further miking techniques may be found on our website at www.audixusa.com

DIMENSIONS (mm):

SERVICE AND WARRANTY:

This microphone is under warranty for a period of 3 years from

any and all manufacturing defects. Should your microphone

fail in any way, please contact the Audix Service department

at 503-682-6933. A Return Authorization number is required

before returning any products.

CARE AND MAINTENANCE:

The VX10 & VX10-Lo are manufactured to exacting specs with roadworthy

construction. However, the capsule is highly sensitive and should be handled

with care. Avoid extreme temperatures and be sure to store your microphone

in the pouch provided when not in use. Moisture of any kind can adversely

aect the sound and performance of your microphone.

***All specications subject to change without notice.

www.audixusa.com

503-682-6933 Fax: 503-682-7114

Audix Corporation 9400 SW Barber St. Wilsonville, OR 97070

AU DIX WARRAN TY REGISTR ATION FORM

Please Check all that apply:

Male Female

Age: Occupation: Primary Instruments: Product to be used for:

18 or Under Musician Vocal Pro live sound

19-25 Producer Guitar / Bass Pro recording

26-35 Sound Eng. Drums Home recording

36-45 Radio/TV Keyboard Rehearsal

46-55 Production Brass Installation

55 + Other _______ Woodwinds School

Strings House of Worship

How did you hear about Audix? Other ___________ Other ___________

Magazine Ad Online Ad

On-line Store Friend Do you own other Audix Products? Yes No

Salesman Other __________ Model(s) ________________________________

Have you visited the Audix website? Yes No

Please register your product online at www.audixusa.com or mail this form to:

Audix Microphones P.O. Box 4010 Wilsonville, OR 97070

Name:________________________________ Model:___________________

Company:_____________________________ Serial Number:_____________

Address:______________________________ Store:____________________

City:_________________________________ Store Location:_____________

Prov./State:___________ Zip:_____________ Purchase Date:_____________

Phone: ( )___________________________ Signature:_________________

Email:________________________________ Date:____________________
