ATC SCM12P PRO [5/7] S c m 1 2 i p r o i n s t a l l a t i o n

7:SCM12i Pro Installation

IMPORTANT

The SCM12i Pro is fitted with 4 x M8 mounting points in the

rear face. These are positioned in standard 69.9mm x 127mm/

/4˝ x 5˝ rectangular pattern. These points are fitted with

M8 x 30 Button Head fasteners which should be used when

fixing to your chosen mounting bracket. The pitch of the fixing

points is illustrated in Fig. 5.The fixings are compatible with

(but not limited to) the following widely available mounting

brackets and adapter panels:

Adaptive Technologies

MM-018 Multimount

Pan & Tilt Ceiling Speaker Mount

MM-022-BT Multimount

Pan & Tilt Speaker Wall Mount

MM-060 Multimount

Pan & Tilt Bottom & Rear Speaker Mount

König & Meyer (K&M)

24352 Adapter Panel 1

24481 Speaker Wall Mount (can also be using on ceiling)

24496 Speaker Ceiling Mount

n Ensure that all mounting hardware is rated for loads greater

than 15k

g/33lbs.

n Mounting and/or suspension of any loudspeaker should be

carried out by an experienced professional. Improperly

installed loudspeakers can result in damage, personal injury

and/or liability to the installing contractor.

n The SCM12i is fitted with a safety anchor point, in the form

of a single M8 eyebolt situated at the top rear corner as

illustrated in Fig.6.

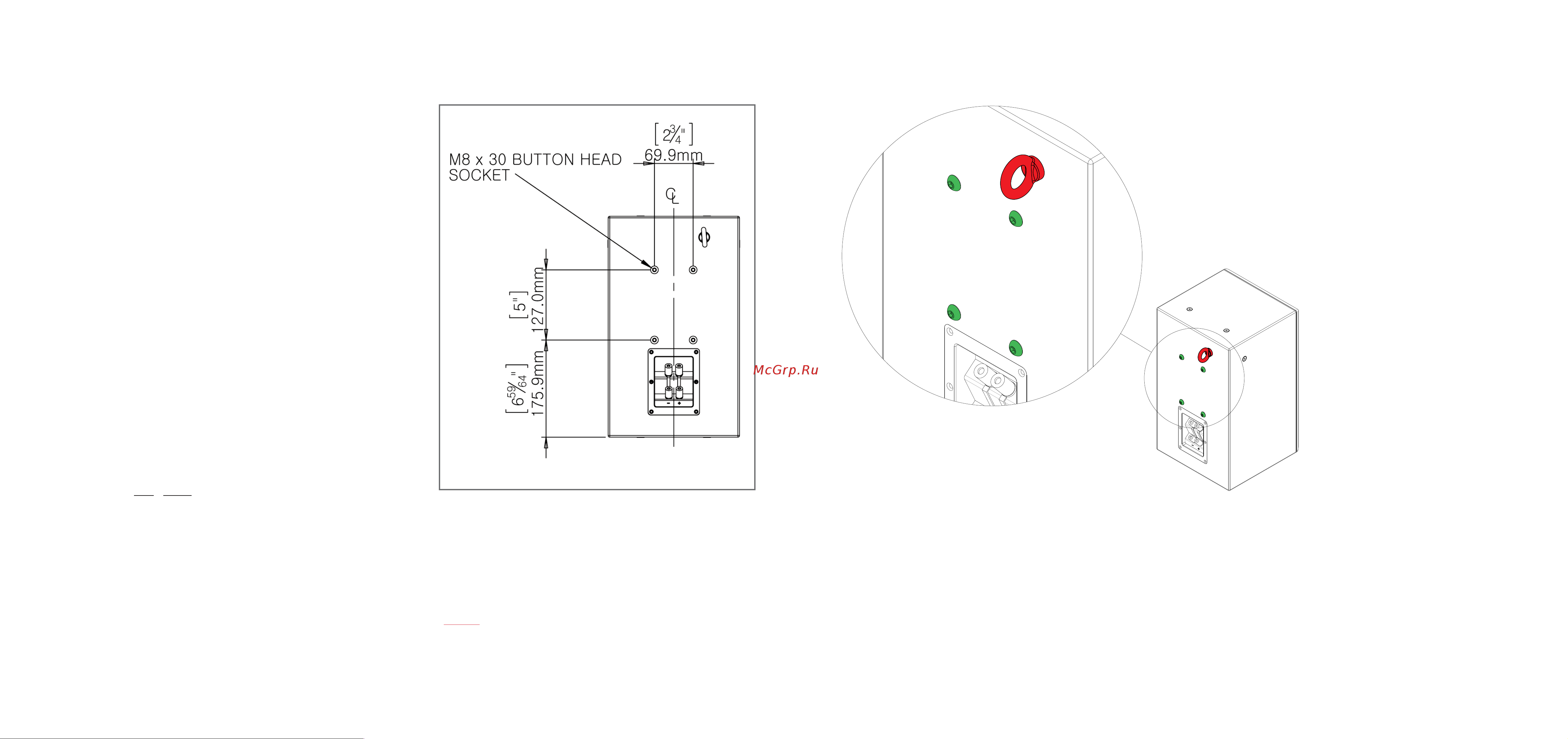

Fig. 5

SCM12i Pro Primary Fixing Point Position

Fig. 6

SCM12i Fixing Points:

Primary Mounting Fixing Points shown in green,

Safety Anchor Point shown in red

In addition to the primary mounting fixings, this eyebolt

MUST

be tethered to an appropriate safety point in all

installations, without exception.
