Routing Tab and Main View options

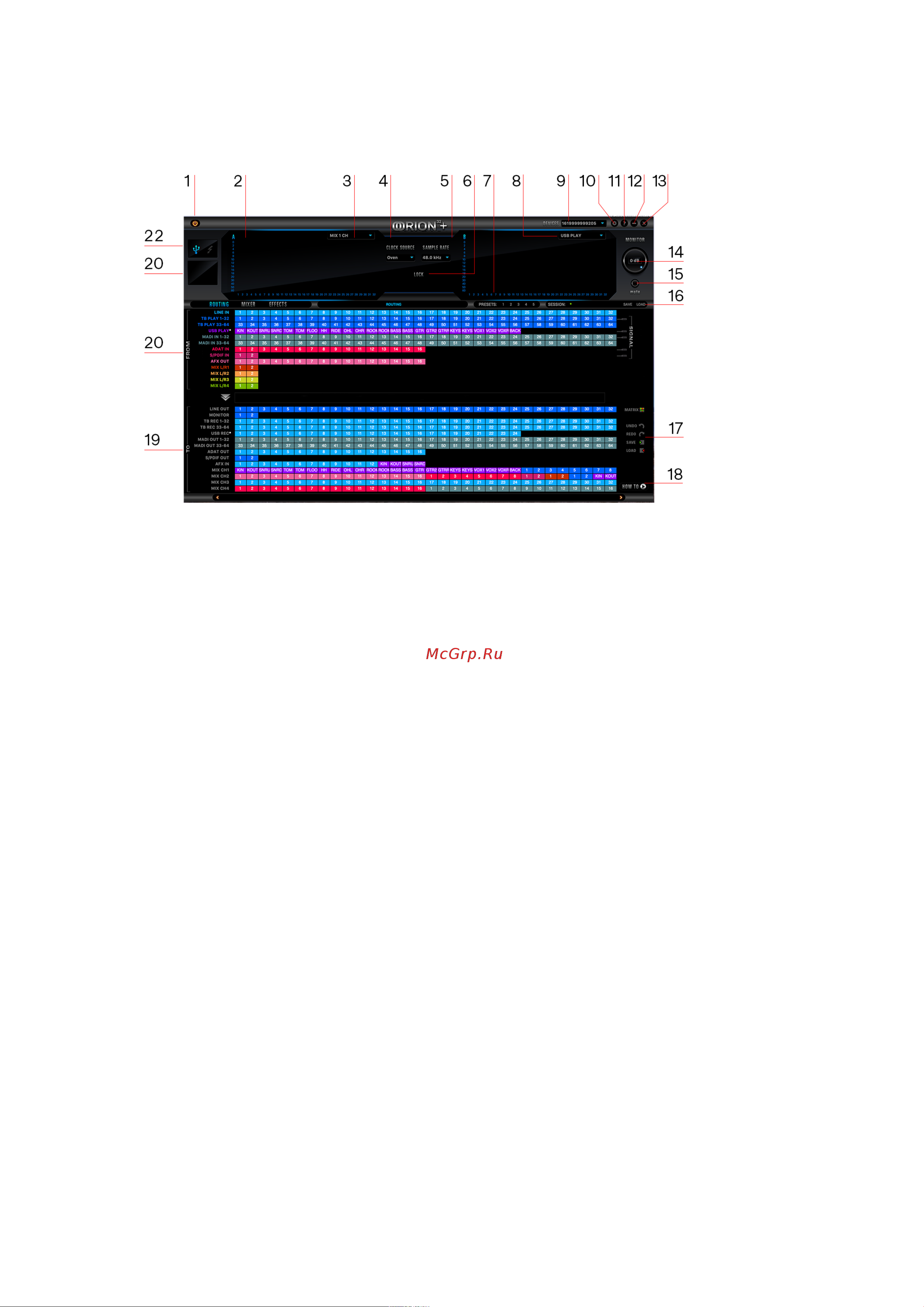

The Universal Panel view sits constantly on the upper half of the Control Panel, allowing

for quick access to the most important features.

Main view:

1. Power/Standby button

2. Levels meter

3. Meter Source display (dropdown tab allows you to select different sources to preview)

4. Clock Source

This dropdown menu lets you select how the Orion32+ | Gen 3 will be synchronized.

- Select Oven/10M for internal sync (with or without Atomic Clock * reference)

- W.C. (Word Clock) to sync the Orion32+ | Gen 3 to an external device through the Word

clock input

- MADI **, ADAT, S/PDIF to sync with incoming digital signals

* Once an Atomic Clock is connected, it replaces ‘Oven’ in the Clock Source dropdown

menu.

** Orion32+ | Gen 3 supports sample rates higher than 48kHz for MADI and ADAT and

also supports S-Mux.

The following tables show what the various options for MADI and ADAT implement in order

to be consistent with the input/output of your other devices connected via MADI or ADAT.

Clock Source MADI Options (with or without the S-Mux option selected in Settings):
