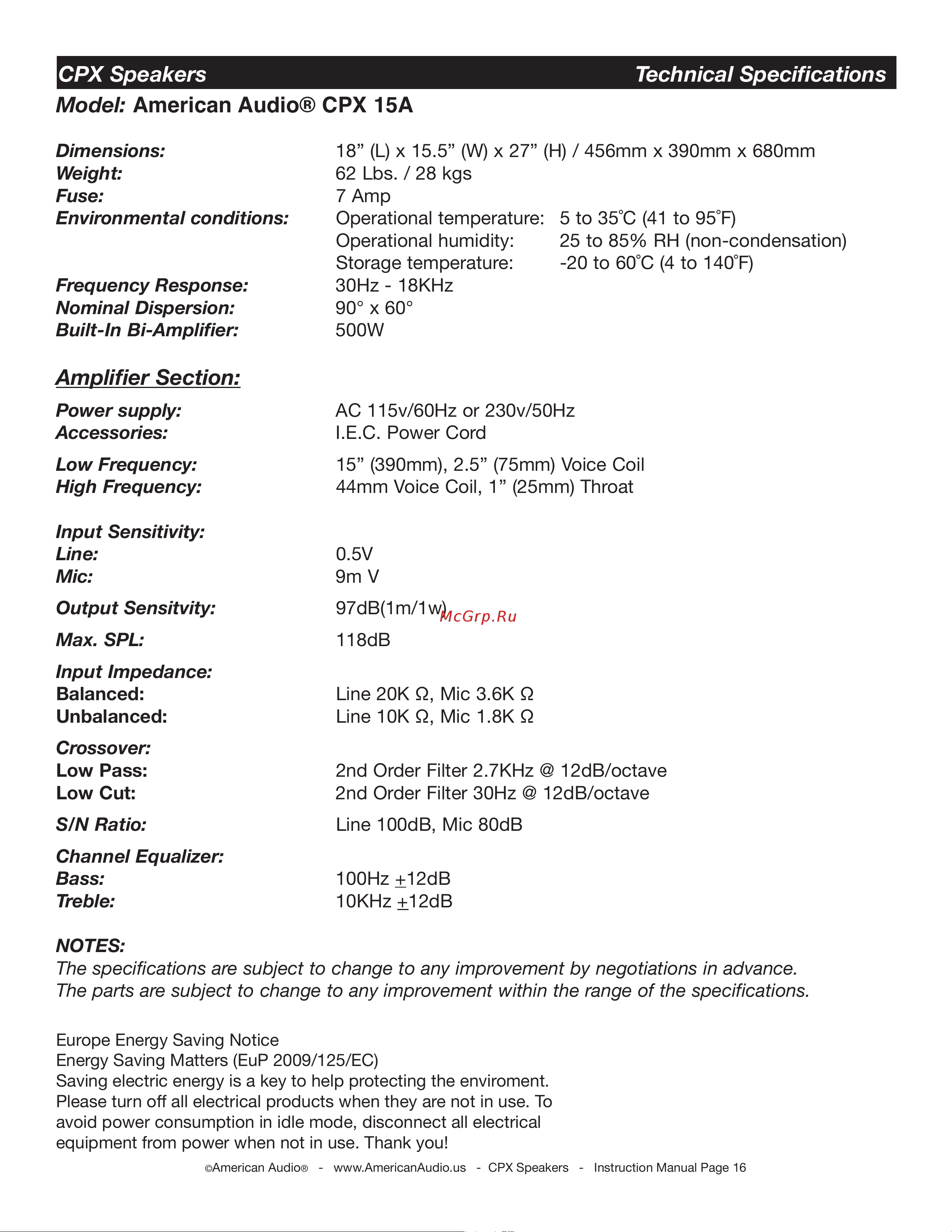

Model: American Audio® CPX 15A

Dimensions: 18” (L) x 15.5” (W) x 27” (H) / 456mm x 390mm x 680mm

Weight: 62 Lbs. / 28 kgs

Fuse: 7 Amp

Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F)

Operational humidity: 25 to 85% RH (non-condensation)

Storage temperature: -20 to 60˚C (4 to 140˚F)

Frequency Response: 30Hz - 18KHz

Nominal Dispersion: 90° x 60°

Built-In Bi-Amplifier: 500W

Amplifier Section:

Power supply: AC 115v/60Hz or 230v/50Hz

Accessories: I.E.C. Power Cord

Low Frequency: 15” (390mm), 2.5” (75mm) Voice Coil

High Frequency: 44mm Voice Coil, 1” (25mm) Throat

Input Sensitivity:

Line: 0.5V

Mic: 9m V

Output Sensitvity: 97dB(1m/1w)

Max. SPL: 118dB

Input Impedance:

Balanced: Line 20K Ω, Mic 3.6K Ω

Unbalanced: Line 10K Ω, Mic 1.8K Ω

Crossover:

Low Pass: 2nd Order Filter 2.7KHz @ 12dB/octave

Low Cut: 2nd Order Filter 30Hz @ 12dB/octave

S/N Ratio: Line 100dB, Mic 80dB

Channel Equalizer:

Bass: 100Hz +12dB

Treble: 10KHz +12dB

NOTES:

The specifications are subject to change to any improvement by negotiations in advance.

The parts are subject to change to any improvement within the range of the specifications.

CPX Speakers Technical Specifications

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!
