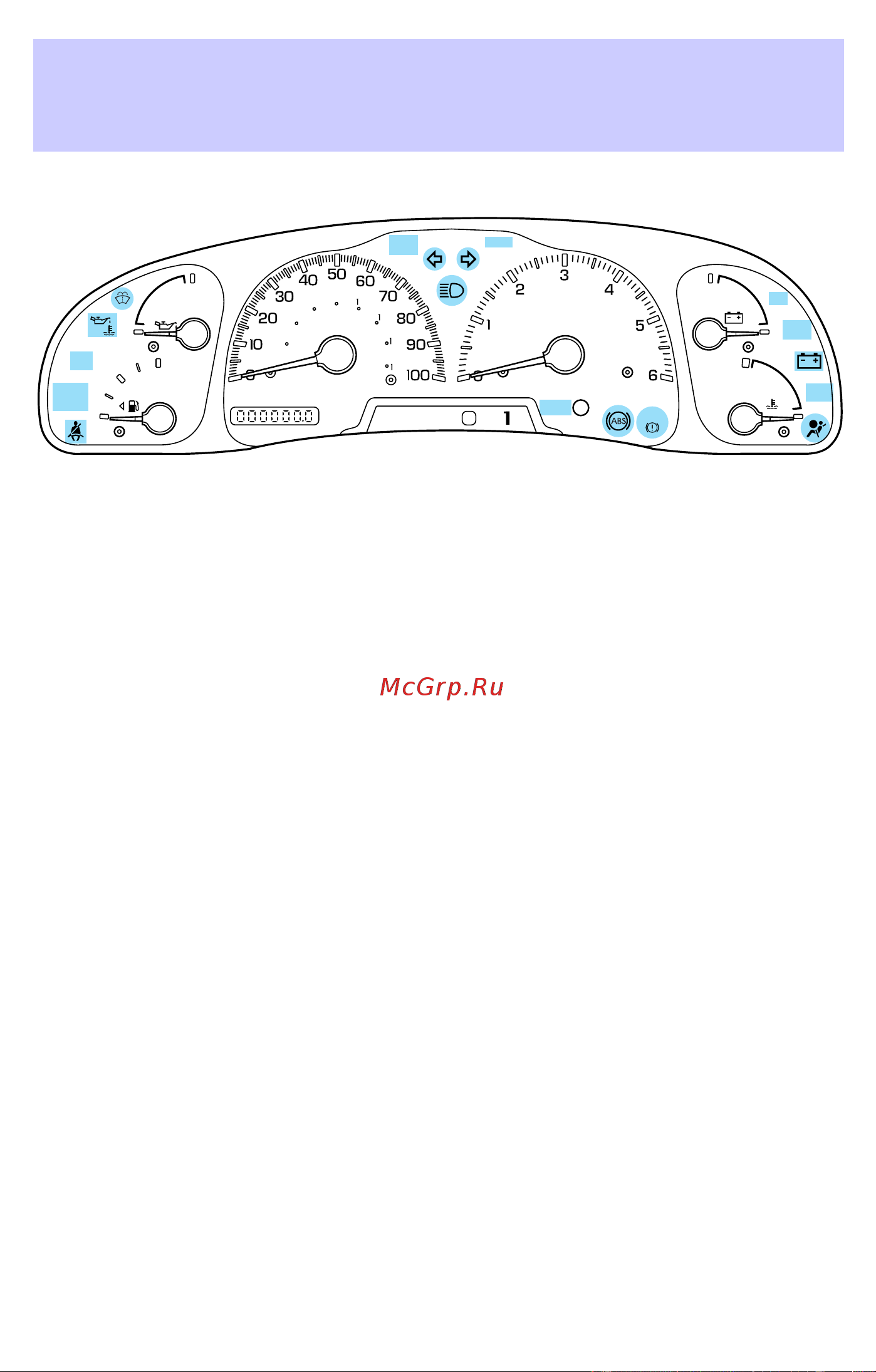

Lincoln Navigator (2002) [10/272] Instrument cluster
![Lincoln Navigator (2002) [10/272] Instrument cluster](/views2/2010825/page10/bga.png)
WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, have
the respective system inspected immediately.
Service engine soon
Illuminates briefly to ensure the
system is functional. If it comes on
after the engine is started, one of
the engine’s emission control
systems may be malfunctioning. The
light may illuminate without a
driveability concern being noted. The vehicle will usually be drivable and
will not require towing.
Light turns on solid:
Temporary malfunctions may cause the light to illuminate. Examples are:
1. The vehicle has run out of fuel.
2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been properly installed and securely
tightened.
These temporary malfunctions can be corrected by filling the fuel tank
with high quality fuel of the recommended octane and/or properly
installing and securely tightening the fuel cap. After three driving cycles
without these or any other temporary malfunctions present, the light
should turn off. (A driving cycle consists of a cold engine startup
L
C
E
L
H
F
MPH
RPMX1000
NAVIGATOR
km/h
km/h
D
PRN
D
2
LOW
FUEL
BRAKE
SELECT
RESET
DOOR
AJAR
4X4
LOW
RANGE
CK
SUSP
SERVICE
ENGINE
SOON
THEFT
20
40
60
80
60
40
20
00
H
H
SERVICE
ENGINE
SOON
Instrument cluster
10
