Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse
Panel Description
24 10A EATC Module, EATC
Blower/Flasher Relay, Climate
Control Selector Switch , Feeds
fuse 7
25 — Not Used
26 10A Right Side Low Beam Headlamp
27 5A Foglamp Relay and Foglamp
Indicator
28 10A Left Side Low Beam Headlamp
29 5A Autolamp Module, Transmission
Overdrive Control Switch
30 30A Passive Anti Theft Transceiver,
Cluster, Ignition Coils, Powertrain
Control Module Relay
31 10A Rear Integrated Control Panel
(Audio), CD Player, Cell Phone
Relay 1 — Interior Lamp Relay
Relay 2 — Battery Saver Relay
Relay 3 — Rear Window Defroster Relay
Relay 4 — One Touch Down Window Relay
Relay 5 — ACC Delay Relay

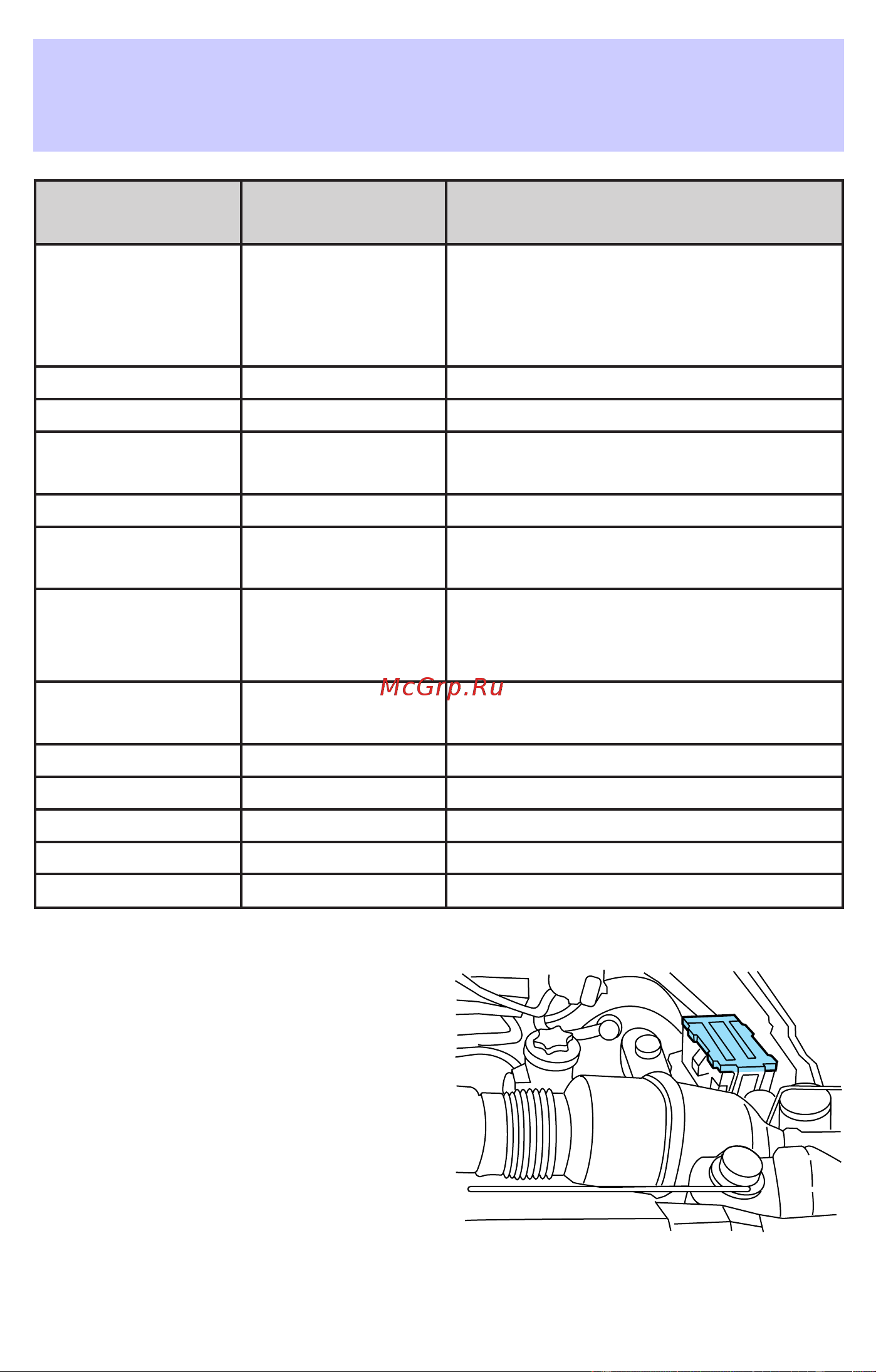

Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
