INSTALLATION

Loudspeakers are to be install by qualied personnel, respecting all safety standards.

Loudspeakers are to be installed securely.

Make sure the support structure (walls / ceilings) has the necessary mechanical

characteristics for the loudspeaker weight, without the risk of a fall that could damage

things or cause an injury.

Use attachments elements suitable for walls / ceilings (e.g. wall plugs for bricks, concrete, etc.).

a) HORIZONTAL MOUNTING WITH U BRACKET

NECESSARY OPTIONAL ACCESSORY:

- AC NC12 H-BR (for the C 5212-64, C 5212-66, C 5212-94, C 5212-96,

C 5212-99, C 7312-64, C 7312-94 models)

- AC NC15 H-BR (for the C 5215-64, C 5215-66, C 5215-94, C 5215-96,

C 5215-99, C 9315-64, C 9315-94 models).

Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8) plus a

central one (max. M10).

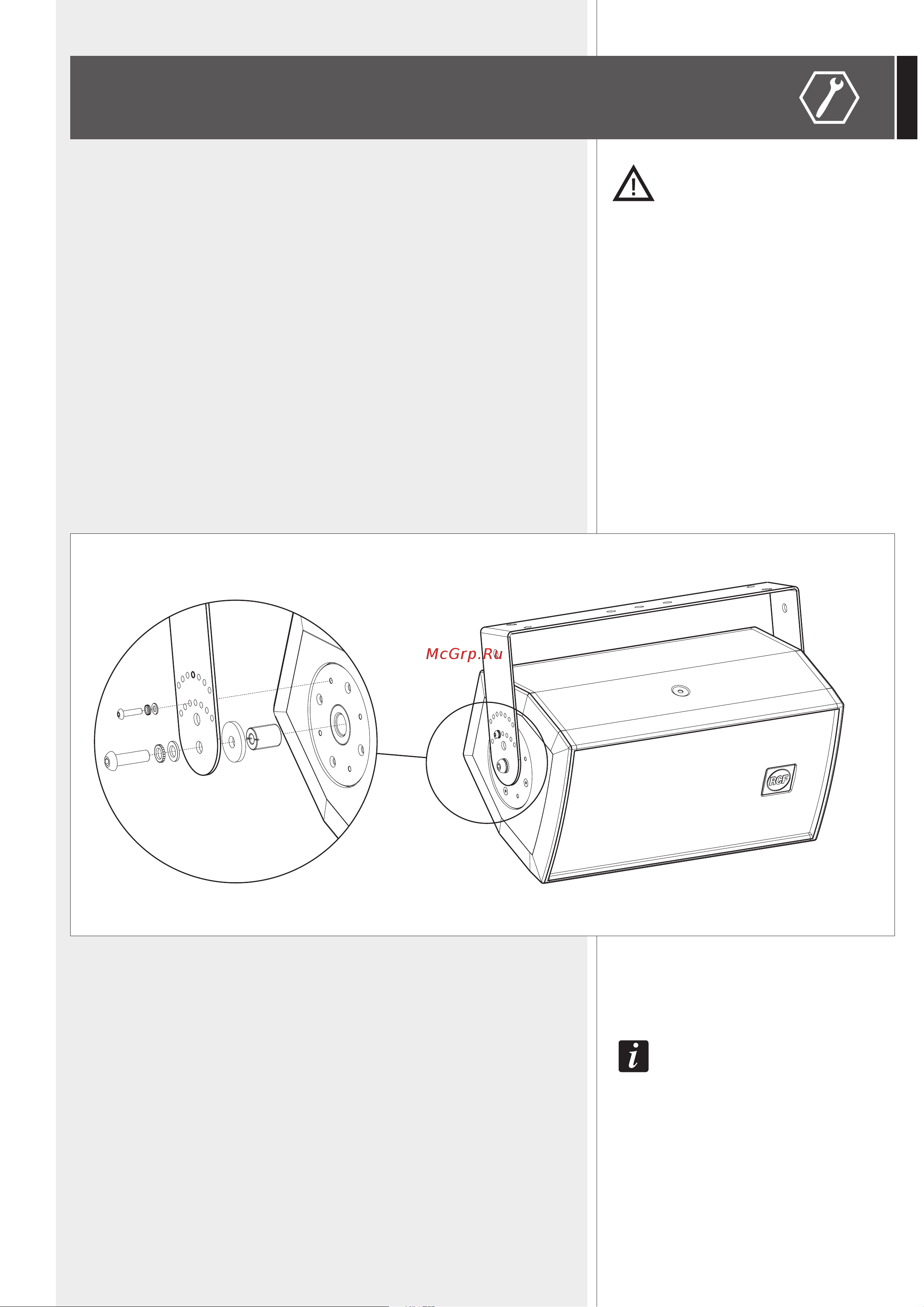

Mount the U bracket to the loudspeaker by tightening the two M10x35 bolts into the two

central holes of the multiplates, as shown in the gure below.

As an alternative, it is possible to install the loudspeaker a bit less prominent, tanks to the U

bracket inner holes. Before tightening the two M10 bolts, adjust the loudspeaker vertical tilt

and then x it through two M5x20 bolts into one of the 7 small holes of the U bracket.

Note: do Not tilt the loudspeaker upwards!

iNstead of simple m10 bolts, it is possible to use the iNcluded kNobs (haviNg m10 bolts).
