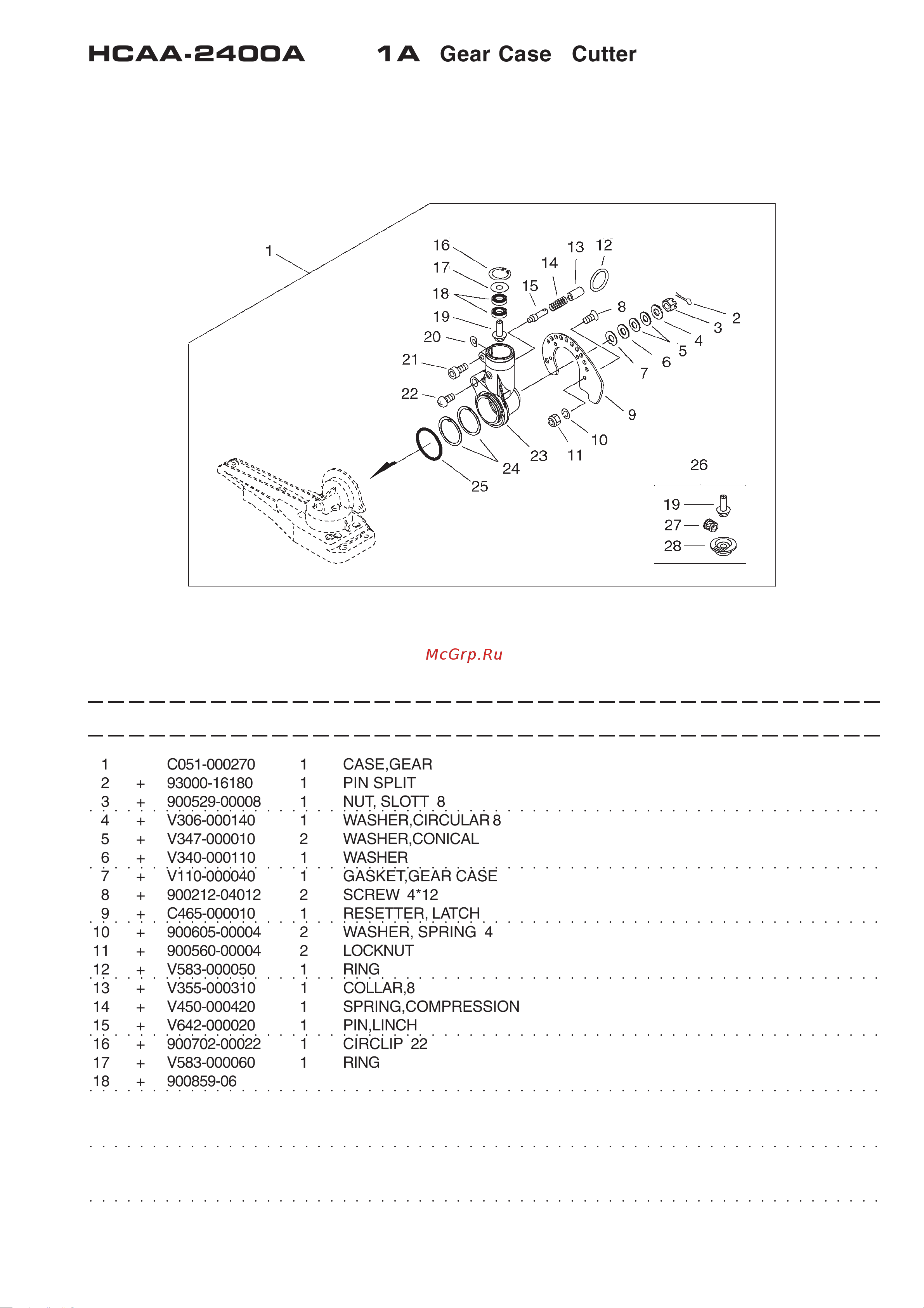

- 1 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
HCAA-2400A 1A Gear Case Cutter
1 C051-000270 1 CASE,GEAR
2 + 93000-16180 1 PIN SPLIT
3 + 900529-00008 1 NUT, SLOTT 8
4 + V306-000140 1 WASHER,CIRCULAR 8
5 + V347-000010 2 WASHER,CONICAL
6 + V340-000110 1 WASHER
7 + V110-000040 1 GASKET,GEAR CASE
8 + 900212-04012 2 SCREW 4*12
9 + C465-000010 1 RESETTER, LATCH
10 + 900605-00004 2 WASHER, SPRING 4
11 + 900560-00004 2 LOCKNUT
12 + V583-000050 1 RING
13 + V355-000310 1 COLLAR,8
14 + V450-000420 1 SPRING,COMPRESSION
15 + V642-000020 1 PIN,LINCH
16 + 900702-00022 1 CIRCLIP 22
17 + V583-000060 1 RING
18 + 900859-06900 2 BEARING, BALL 6900
19 + V651-000330 1 GEAR,BEVEL
20 + V340-000170 1 WASHER
21 + 900162-05025 1 BOLT, H.S. 5*25
22 + 900242-05012 1 SCREW 5*12
23 + C531-000292 1 CASE,GEAR
24 + V340-000120 2 WASHER
25 + 900724-00032 1 O-RING
Содержание
- C051 000270 1 case gear 2 93000 16180 1 pin split 3 900529 00008 1 nut slott 8 4 v306 000140 1 washer circular 8 5 v347 000010 2 washer conical 6 v340 000110 1 washer 7 v110 000040 1 gasket gear case 8 900212 04012 2 screw 4 12 9 c465 000010 1 resetter latch 10 900605 00004 2 washer spring 4 11 900560 00004 2 locknut 12 v583 000050 1 ring 13 v355 000310 1 collar 8 14 v450 000420 1 spring compression 15 v642 000020 1 pin linch 16 900702 00022 1 circlip 22 17 v583 000060 1 ring 18 900859 06900 2 bearing ball 6900 19 v651 000330 1 gear bevel 20 v340 000170 1 washer 21 900162 05025 1 bolt h s 5 25 22 900242 05012 1 screw 5 12 23 c531 000292 1 case gear 24 v340 000120 2 washer 25 900724 00032 1 o ring 2
- Hcaa 2400a 1a gear case cutter 2
- Key lv part number q ty description remarks 2
- Hcaa 2400a 1b gear case cutter 3
- Key lv part number q ty description remarks 3
- P021 016010 1 bevel gear set 19 v651 000330 1 gear bevel 27 v651 000250 1 gear bevel 28 v651 000260 1 gear bevel 29 351305 12360 1 handle 30 351315 12360 1 grip handle 31 900560 00005 2 nut lock 5 32 900600 00005 2 washer 5 33 900142 05028 2 bolt 5 28 w w sw 34 900105 05008 4 bolt h s 5 8 35 c531 000302 1 case gear 36 880110 10860 2 nipple grease 37 900516 00005 2 nut frange 5 38 v541 000130 2 seal 39 c534 000260 1 shaft gear 40 v307 000150 2 washer circular 10 41 v555 000040 2 bearing needle 10 42 900855 06900 1 bearing ball 6900 43 v583 000040 1 ring 44 900800 06001 1 bearing ball 6001 45 c503 000072 1 holder bearing 46 c532 000140 2 rod connecting 47 c533 000041 1 cam 48 v110 000051 1 gasket gear case 3
- C539 000010 1 lid gearcase 50 900162 04014 6 bolt h s 4 14 51 433022 06460 4 nut 52 699118 04560 5 washer 53 c538 000120 1 guide cutter 54 900212 05020 2 screw 5 20 55 c538 000110 1 guide cutter 56 c538 000100 1 guide cutter 57 x495 000060 1 scabbard blade 58 x425 000220 1 support cutter 59 x411 000350 2 cutter 60 699115 04660 3 bolt 6 61 699115 07760 1 bolt cutter 4
- Hcaa 2400a 1b gear case cutter 4
- Key lv part number q ty description remarks 4
- C051 000140 1 case gear 2 93000 16180 1 pin split 3 900529 00008 1 nut slott 8 4 v306 000140 1 washer circular 8 5 v347 000010 2 washer conical 6 v340 000110 1 washer 7 v110 000040 1 gasket gear case 8 900212 04012 2 screw 4 12 9 c465 000010 1 resetter latch 10 900605 00004 2 washer spring 4 11 900560 00004 2 locknut 12 v583 000050 1 ring 13 v355 000310 1 collar 8 14 v450 000420 1 spring compression 15 v642 000020 1 pin linch 16 900702 00022 1 circlip 22 17 v583 000060 1 ring 18 900859 06900 2 bearing ball 6900 19 v651 000240 1 gear bevel 20 v340 000170 1 washer 21 900162 05025 1 bolt h s 5 25 22 900242 05012 1 screw 5 12 23 c531 000292 1 case gear 24 v340 000120 2 washer 25 900724 00032 1 o ring 5
- Hcaa 2401a 2a gear case cutter 5
- Key lv part number q ty description remarks 5
- Hcaa 2401a 2b gear case cutter 6
- Key lv part number q ty description remarks 6
- P021 010690 1 bevel gear set 19 v651 000240 1 gear bevel 27 v651 000250 1 gear bevel 28 v651 000260 1 gear bevel 29 351305 12360 1 handle 30 351315 12360 1 grip handle 31 900560 00005 2 nut lock 5 32 900600 00005 2 washer 5 33 900142 05028 2 bolt 5 28 w w sw 34 900105 05008 4 bolt h s 5 8 35 c531 000302 1 case gear 36 880110 10860 2 nipple grease 37 900516 00005 2 nut frange 5 38 v541 000130 2 seal 39 c534 000260 1 shaft gear 40 v307 000150 2 washer circular 10 41 v555 000040 2 bearing needle 10 42 900855 06900 1 bearing ball 6900 43 v583 000040 1 ring 44 900800 06001 1 bearing ball 6001 45 c503 000072 1 holder bearing 46 c532 000140 2 rod connecting 47 c533 000041 1 cam 48 v110 000051 1 gasket gear case 6
- C539 000010 1 lid gearcase 50 900162 04014 6 bolt h s 4 14 51 433022 06460 4 nut 52 699118 04560 5 washer 53 c538 000120 1 guide cutter 54 900212 05020 2 screw 5 20 55 c538 000110 1 guide cutter 56 c538 000100 1 guide cutter 57 x495 000060 1 scabbard blade 58 x425 000220 1 support cutter 59 x411 000350 2 cutter 60 699115 04660 3 bolt 6 61 699115 07760 1 bolt cutter 7
- Hcaa 2401a 2b gear case cutter 7
- Key lv part number q ty description remarks 7
- C050 000860 1 pipe main 3 610246 44730 2 stopper 4 c507 000100 1 liner flexible 6 c403 000100 1 grip handle 7 c440 000020 1 guard hand 8 900500 00005 1 nut 5 9 900142 05020 1 bolt 5 20 w w sw 5 c506 000071 1 shaft flexible 10 890617 12361 1 label caution 11 c525 000010 1 cap main pipe 12 c649 000120 1 hook 8
- Hcaa 2401a 3 main pipe 8
- Key lv part number q ty description remarks 8
- C051 000140 1 case gear 2 93000 16180 1 pin split 3 900529 00008 1 nut slott 8 4 v306 000140 1 washer circular 8 5 v347 000010 2 washer conical 6 v340 000110 1 washer 7 v110 000040 1 gasket gear case 8 900212 04012 2 screw 4 12 9 c465 000010 1 resetter latch 10 900605 00004 2 washer spring 4 11 900560 00004 2 locknut 12 v583 000050 1 ring 13 v355 000310 1 collar 8 14 v450 000420 1 spring compression 15 v642 000020 1 pin linch 16 900702 00022 1 circlip 22 17 v583 000060 1 ring 18 900859 06900 2 bearing ball 6900 19 v651 000240 1 gear bevel 20 v340 000170 1 washer 21 900162 05025 1 bolt h s 5 25 22 900242 05012 1 screw 5 12 23 c531 000292 1 case gear 24 v340 000120 2 washer 25 900724 00032 1 o ring 9
- Hcaa 2403a 4a gear case cutter 9
- Key lv part number q ty description remarks 9
- Hcaa 2403a 4b gear case cutter 10
- Key lv part number q ty description remarks 10
- P021 010690 1 bevel gear set 19 v651 000240 1 gear bevel 27 v651 000250 1 gear bevel 28 v651 000260 1 gear bevel 29 351305 12360 1 handle 30 351315 12360 1 grip handle 31 900560 00005 2 nut lock 5 32 900600 00005 2 washer 5 33 900142 05028 2 bolt 5 28 w w sw 34 900105 05008 4 bolt h s 5 8 35 c531 000302 1 case gear 36 880110 10860 2 nipple grease 37 900516 00005 2 nut frange 5 38 v541 000130 2 seal 39 c534 000260 1 shaft gear 40 v307 000150 2 washer circular 10 41 v555 000040 2 bearing needle 10 42 900855 06900 1 bearing ball 6900 43 v583 000040 1 ring 44 900800 06001 1 bearing ball 6001 45 c503 000072 1 holder bearing 46 c532 000140 2 rod connecting 47 c533 000041 1 cam 48 v110 000051 1 gasket gear case 10
- C539 000010 1 lid gearcase 50 900162 04014 6 bolt h s 4 14 51 433022 06460 4 nut 52 699118 04560 5 washer 53 c538 000120 1 guide cutter 54 900212 05020 2 screw 5 20 55 c538 000110 1 guide cutter 56 c538 000100 1 guide cutter 57 x495 000060 1 scabbard blade 58 x425 000220 1 support cutter 59 x411 000350 2 cutter 60 699115 04660 3 bolt 6 61 699115 07760 1 bolt cutter 11
- Hcaa 2403a 4b gear case cutter 11
- Key lv part number q ty description remarks 11
- C051 000280 1 case gear 2 93000 16180 1 pin split 3 900529 00008 1 nut slott 8 4 v306 000140 1 washer circular 8 5 v347 000010 2 washer conical 6 v340 000110 1 washer 7 v110 000040 1 gasket gear case 8 900212 04012 2 screw 4 12 9 c465 000010 1 resetter latch 10 900605 00004 2 washer spring 4 11 900560 00004 2 locknut 12 v583 000050 1 ring 13 v355 000310 1 collar 8 14 v450 000420 1 spring compression 15 v642 000020 1 pin linch 16 900702 00022 1 circlip 22 17 v583 000060 1 ring 18 900859 06900 2 bearing ball 6900 19 v651 000340 1 gear bevel 20 v340 000170 1 washer 21 900162 05025 1 bolt h s 5 25 22 900242 05012 1 screw 5 12 23 c531 000292 1 case gear 24 v340 000120 2 washer 25 900724 00032 1 o ring 12
- Hcaa 2404a 5a gear case cutter 12
- Key lv part number q ty description remarks 12
- Hcaa 2404a 5b gear case cutter 13
- Key lv part number q ty description remarks 13
- P021 016000 1 bevel gear set 19 v651 000340 1 gear bevel 27 v651 000250 1 gear bevel 28 v651 000260 1 gear bevel 29 351305 12360 1 handle 30 351315 12360 1 grip handle 31 900560 00005 2 nut lock 5 32 900600 00005 2 washer 5 33 900142 05028 2 bolt 5 28 w w sw 34 900105 05008 4 bolt h s 5 8 35 c531 000302 1 case gear 36 880110 10860 2 nipple grease 37 900516 00005 2 nut frange 5 38 v541 000130 2 seal 39 c534 000260 1 shaft gear 40 v307 000150 2 washer circular 10 41 v555 000040 2 bearing needle 10 42 900855 06900 1 bearing ball 6900 43 v583 000040 1 ring 44 900800 06001 1 bearing ball 6001 45 c503 000072 1 holder bearing 46 c532 000140 2 rod connecting 47 c533 000041 1 cam 48 v110 000051 1 gasket gear case 13
- C539 000010 1 lid gearcase 50 900162 04014 6 bolt h s 4 14 51 433022 06460 4 nut 52 699118 04560 5 washer 53 c538 000120 1 guide cutter 54 900212 05020 2 screw 5 20 55 c538 000110 1 guide cutter 56 c538 000100 1 guide cutter 57 x495 000060 1 scabbard blade 58 x425 000220 1 support cutter 59 x411 000350 2 cutter 60 699115 04660 3 bolt 6 61 699115 07760 1 bolt cutter 14
- Hcaa 2404a 5b gear case cutter 14
- Key lv part number q ty description remarks 14
- Parts number key no parts number key no parts number key no 15
- Parts number key no parts number key no parts number key no 16
