ECHO INCORPORATED ECHO PAS-Садовые ножницы с рег. наклоном (деталировка) [8/17] Hcaa 2401a 3 main pipe
![ECHO INCORPORATED ECHO PAS-Садовые ножницы с рег. наклоном (деталировка) [8/17] Hcaa 2401a 3 main pipe](/views2/2012305/page8/bg8.png)
- 7 -
KEY LV PART NUMBER Q'TY DESCRIPTION REMARKS
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
1 C050-000860 1 PIPE, MAIN
3 + 610246-44730 2 STOPPER
4 + C507-000100 1 LINER,FLEXIBLE
6 + C403-000100 1 GRIP,HANDLE
7 + C440-000020 1 GUARD,HAND
8 + 900500-00005 1 NUT 5
9 + 900142-05020 1 BOLT 5*20 (W/W,SW)
5 C506-000071 1 SHAFT,FLEXIBLE
10 890617-12361 1 LABEL, CAUTION
11 C525-000010 1 CAP,MAIN PIPE
12 C649-000120 1 HOOK

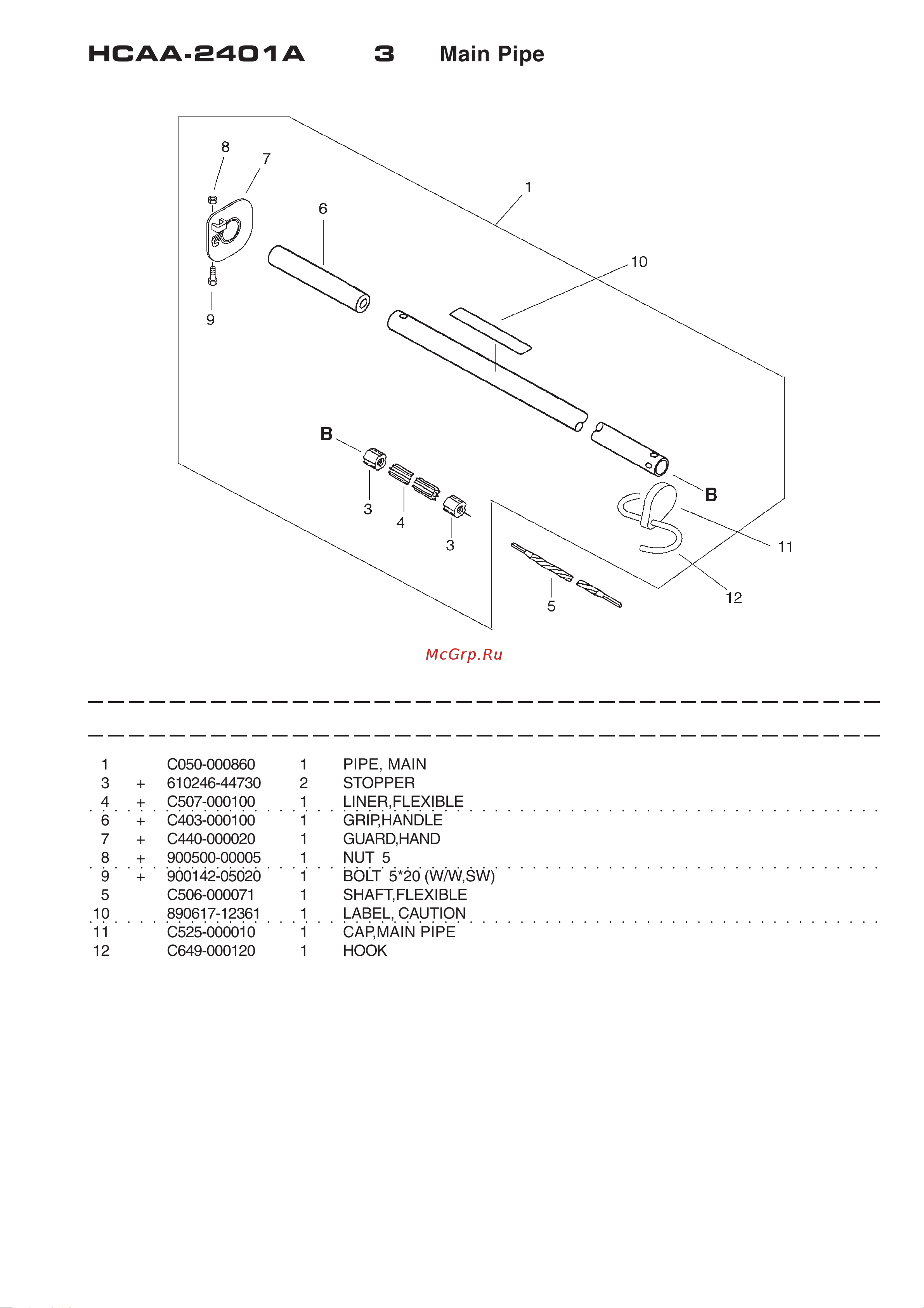

HCAA-2401A 3 Main Pipe
Содержание
- C051 000270 1 case gear 2 93000 16180 1 pin split 3 900529 00008 1 nut slott 8 4 v306 000140 1 washer circular 8 5 v347 000010 2 washer conical 6 v340 000110 1 washer 7 v110 000040 1 gasket gear case 8 900212 04012 2 screw 4 12 9 c465 000010 1 resetter latch 10 900605 00004 2 washer spring 4 11 900560 00004 2 locknut 12 v583 000050 1 ring 13 v355 000310 1 collar 8 14 v450 000420 1 spring compression 15 v642 000020 1 pin linch 16 900702 00022 1 circlip 22 17 v583 000060 1 ring 18 900859 06900 2 bearing ball 6900 19 v651 000330 1 gear bevel 20 v340 000170 1 washer 21 900162 05025 1 bolt h s 5 25 22 900242 05012 1 screw 5 12 23 c531 000292 1 case gear 24 v340 000120 2 washer 25 900724 00032 1 o ring 2
- Hcaa 2400a 1a gear case cutter 2
- Key lv part number q ty description remarks 2
- Hcaa 2400a 1b gear case cutter 3
- Key lv part number q ty description remarks 3
- P021 016010 1 bevel gear set 19 v651 000330 1 gear bevel 27 v651 000250 1 gear bevel 28 v651 000260 1 gear bevel 29 351305 12360 1 handle 30 351315 12360 1 grip handle 31 900560 00005 2 nut lock 5 32 900600 00005 2 washer 5 33 900142 05028 2 bolt 5 28 w w sw 34 900105 05008 4 bolt h s 5 8 35 c531 000302 1 case gear 36 880110 10860 2 nipple grease 37 900516 00005 2 nut frange 5 38 v541 000130 2 seal 39 c534 000260 1 shaft gear 40 v307 000150 2 washer circular 10 41 v555 000040 2 bearing needle 10 42 900855 06900 1 bearing ball 6900 43 v583 000040 1 ring 44 900800 06001 1 bearing ball 6001 45 c503 000072 1 holder bearing 46 c532 000140 2 rod connecting 47 c533 000041 1 cam 48 v110 000051 1 gasket gear case 3
- C539 000010 1 lid gearcase 50 900162 04014 6 bolt h s 4 14 51 433022 06460 4 nut 52 699118 04560 5 washer 53 c538 000120 1 guide cutter 54 900212 05020 2 screw 5 20 55 c538 000110 1 guide cutter 56 c538 000100 1 guide cutter 57 x495 000060 1 scabbard blade 58 x425 000220 1 support cutter 59 x411 000350 2 cutter 60 699115 04660 3 bolt 6 61 699115 07760 1 bolt cutter 4
- Hcaa 2400a 1b gear case cutter 4
- Key lv part number q ty description remarks 4
- C051 000140 1 case gear 2 93000 16180 1 pin split 3 900529 00008 1 nut slott 8 4 v306 000140 1 washer circular 8 5 v347 000010 2 washer conical 6 v340 000110 1 washer 7 v110 000040 1 gasket gear case 8 900212 04012 2 screw 4 12 9 c465 000010 1 resetter latch 10 900605 00004 2 washer spring 4 11 900560 00004 2 locknut 12 v583 000050 1 ring 13 v355 000310 1 collar 8 14 v450 000420 1 spring compression 15 v642 000020 1 pin linch 16 900702 00022 1 circlip 22 17 v583 000060 1 ring 18 900859 06900 2 bearing ball 6900 19 v651 000240 1 gear bevel 20 v340 000170 1 washer 21 900162 05025 1 bolt h s 5 25 22 900242 05012 1 screw 5 12 23 c531 000292 1 case gear 24 v340 000120 2 washer 25 900724 00032 1 o ring 5
- Hcaa 2401a 2a gear case cutter 5
- Key lv part number q ty description remarks 5
- Hcaa 2401a 2b gear case cutter 6
- Key lv part number q ty description remarks 6
- P021 010690 1 bevel gear set 19 v651 000240 1 gear bevel 27 v651 000250 1 gear bevel 28 v651 000260 1 gear bevel 29 351305 12360 1 handle 30 351315 12360 1 grip handle 31 900560 00005 2 nut lock 5 32 900600 00005 2 washer 5 33 900142 05028 2 bolt 5 28 w w sw 34 900105 05008 4 bolt h s 5 8 35 c531 000302 1 case gear 36 880110 10860 2 nipple grease 37 900516 00005 2 nut frange 5 38 v541 000130 2 seal 39 c534 000260 1 shaft gear 40 v307 000150 2 washer circular 10 41 v555 000040 2 bearing needle 10 42 900855 06900 1 bearing ball 6900 43 v583 000040 1 ring 44 900800 06001 1 bearing ball 6001 45 c503 000072 1 holder bearing 46 c532 000140 2 rod connecting 47 c533 000041 1 cam 48 v110 000051 1 gasket gear case 6
- C539 000010 1 lid gearcase 50 900162 04014 6 bolt h s 4 14 51 433022 06460 4 nut 52 699118 04560 5 washer 53 c538 000120 1 guide cutter 54 900212 05020 2 screw 5 20 55 c538 000110 1 guide cutter 56 c538 000100 1 guide cutter 57 x495 000060 1 scabbard blade 58 x425 000220 1 support cutter 59 x411 000350 2 cutter 60 699115 04660 3 bolt 6 61 699115 07760 1 bolt cutter 7
- Hcaa 2401a 2b gear case cutter 7
- Key lv part number q ty description remarks 7
- C050 000860 1 pipe main 3 610246 44730 2 stopper 4 c507 000100 1 liner flexible 6 c403 000100 1 grip handle 7 c440 000020 1 guard hand 8 900500 00005 1 nut 5 9 900142 05020 1 bolt 5 20 w w sw 5 c506 000071 1 shaft flexible 10 890617 12361 1 label caution 11 c525 000010 1 cap main pipe 12 c649 000120 1 hook 8
- Hcaa 2401a 3 main pipe 8
- Key lv part number q ty description remarks 8
- C051 000140 1 case gear 2 93000 16180 1 pin split 3 900529 00008 1 nut slott 8 4 v306 000140 1 washer circular 8 5 v347 000010 2 washer conical 6 v340 000110 1 washer 7 v110 000040 1 gasket gear case 8 900212 04012 2 screw 4 12 9 c465 000010 1 resetter latch 10 900605 00004 2 washer spring 4 11 900560 00004 2 locknut 12 v583 000050 1 ring 13 v355 000310 1 collar 8 14 v450 000420 1 spring compression 15 v642 000020 1 pin linch 16 900702 00022 1 circlip 22 17 v583 000060 1 ring 18 900859 06900 2 bearing ball 6900 19 v651 000240 1 gear bevel 20 v340 000170 1 washer 21 900162 05025 1 bolt h s 5 25 22 900242 05012 1 screw 5 12 23 c531 000292 1 case gear 24 v340 000120 2 washer 25 900724 00032 1 o ring 9
- Hcaa 2403a 4a gear case cutter 9
- Key lv part number q ty description remarks 9
- Hcaa 2403a 4b gear case cutter 10
- Key lv part number q ty description remarks 10
- P021 010690 1 bevel gear set 19 v651 000240 1 gear bevel 27 v651 000250 1 gear bevel 28 v651 000260 1 gear bevel 29 351305 12360 1 handle 30 351315 12360 1 grip handle 31 900560 00005 2 nut lock 5 32 900600 00005 2 washer 5 33 900142 05028 2 bolt 5 28 w w sw 34 900105 05008 4 bolt h s 5 8 35 c531 000302 1 case gear 36 880110 10860 2 nipple grease 37 900516 00005 2 nut frange 5 38 v541 000130 2 seal 39 c534 000260 1 shaft gear 40 v307 000150 2 washer circular 10 41 v555 000040 2 bearing needle 10 42 900855 06900 1 bearing ball 6900 43 v583 000040 1 ring 44 900800 06001 1 bearing ball 6001 45 c503 000072 1 holder bearing 46 c532 000140 2 rod connecting 47 c533 000041 1 cam 48 v110 000051 1 gasket gear case 10
- C539 000010 1 lid gearcase 50 900162 04014 6 bolt h s 4 14 51 433022 06460 4 nut 52 699118 04560 5 washer 53 c538 000120 1 guide cutter 54 900212 05020 2 screw 5 20 55 c538 000110 1 guide cutter 56 c538 000100 1 guide cutter 57 x495 000060 1 scabbard blade 58 x425 000220 1 support cutter 59 x411 000350 2 cutter 60 699115 04660 3 bolt 6 61 699115 07760 1 bolt cutter 11
- Hcaa 2403a 4b gear case cutter 11
- Key lv part number q ty description remarks 11
- C051 000280 1 case gear 2 93000 16180 1 pin split 3 900529 00008 1 nut slott 8 4 v306 000140 1 washer circular 8 5 v347 000010 2 washer conical 6 v340 000110 1 washer 7 v110 000040 1 gasket gear case 8 900212 04012 2 screw 4 12 9 c465 000010 1 resetter latch 10 900605 00004 2 washer spring 4 11 900560 00004 2 locknut 12 v583 000050 1 ring 13 v355 000310 1 collar 8 14 v450 000420 1 spring compression 15 v642 000020 1 pin linch 16 900702 00022 1 circlip 22 17 v583 000060 1 ring 18 900859 06900 2 bearing ball 6900 19 v651 000340 1 gear bevel 20 v340 000170 1 washer 21 900162 05025 1 bolt h s 5 25 22 900242 05012 1 screw 5 12 23 c531 000292 1 case gear 24 v340 000120 2 washer 25 900724 00032 1 o ring 12
- Hcaa 2404a 5a gear case cutter 12
- Key lv part number q ty description remarks 12
- Hcaa 2404a 5b gear case cutter 13
- Key lv part number q ty description remarks 13
- P021 016000 1 bevel gear set 19 v651 000340 1 gear bevel 27 v651 000250 1 gear bevel 28 v651 000260 1 gear bevel 29 351305 12360 1 handle 30 351315 12360 1 grip handle 31 900560 00005 2 nut lock 5 32 900600 00005 2 washer 5 33 900142 05028 2 bolt 5 28 w w sw 34 900105 05008 4 bolt h s 5 8 35 c531 000302 1 case gear 36 880110 10860 2 nipple grease 37 900516 00005 2 nut frange 5 38 v541 000130 2 seal 39 c534 000260 1 shaft gear 40 v307 000150 2 washer circular 10 41 v555 000040 2 bearing needle 10 42 900855 06900 1 bearing ball 6900 43 v583 000040 1 ring 44 900800 06001 1 bearing ball 6001 45 c503 000072 1 holder bearing 46 c532 000140 2 rod connecting 47 c533 000041 1 cam 48 v110 000051 1 gasket gear case 13
- C539 000010 1 lid gearcase 50 900162 04014 6 bolt h s 4 14 51 433022 06460 4 nut 52 699118 04560 5 washer 53 c538 000120 1 guide cutter 54 900212 05020 2 screw 5 20 55 c538 000110 1 guide cutter 56 c538 000100 1 guide cutter 57 x495 000060 1 scabbard blade 58 x425 000220 1 support cutter 59 x411 000350 2 cutter 60 699115 04660 3 bolt 6 61 699115 07760 1 bolt cutter 14
- Hcaa 2404a 5b gear case cutter 14
- Key lv part number q ty description remarks 14
- Parts number key no parts number key no parts number key no 15
- Parts number key no parts number key no parts number key no 16
