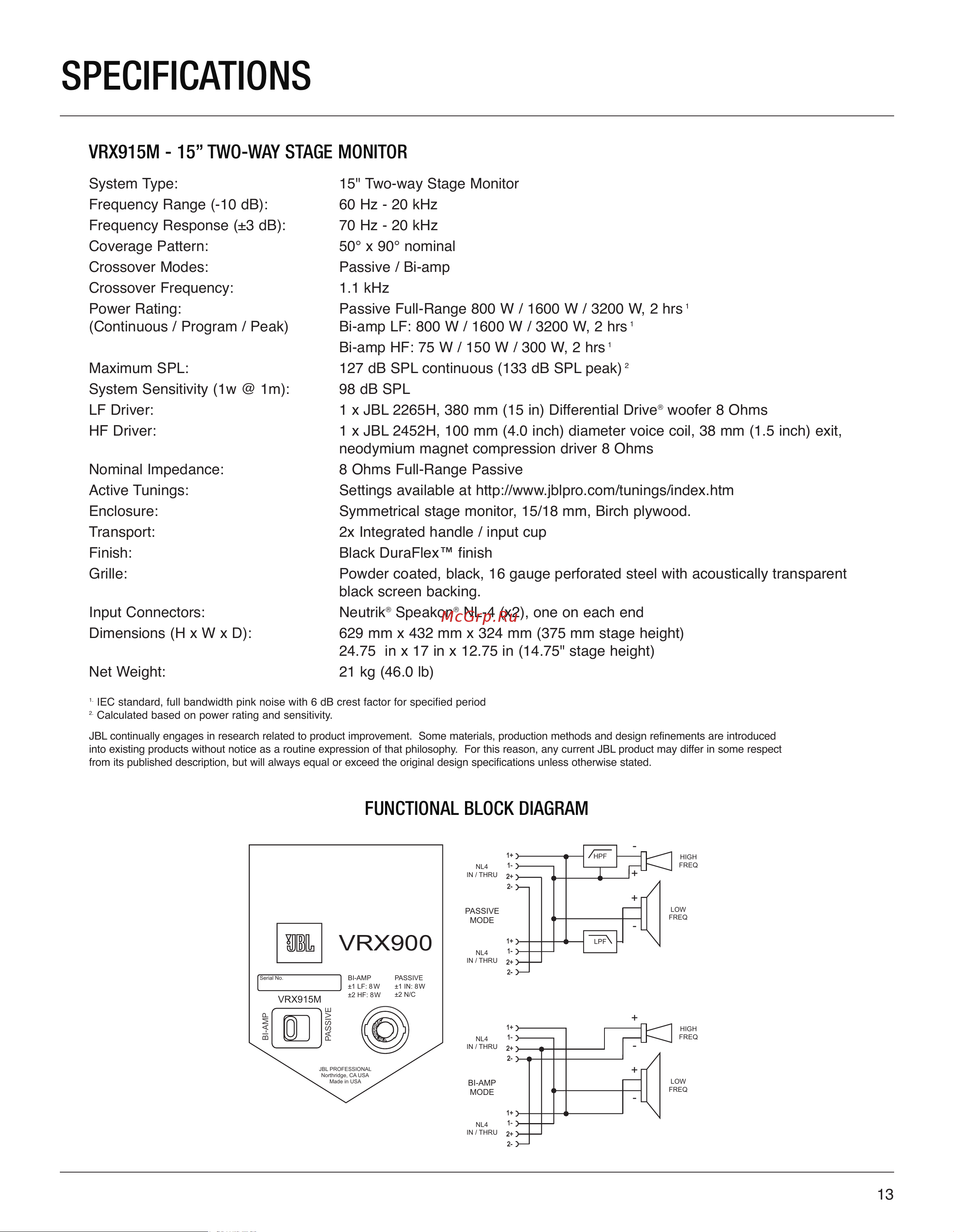

SPECIFICATIONS
VRX915M - 15” TWO-WAY STAGE MONITOR
System Type: 15" Two-way Stage Monitor
Frequency Range (-10 dB): 60 Hz - 20 kHz
Frequency Response (±3 dB): 70 Hz - 20 kHz
Coverage Pattern: 50° x 90° nominal
Crossover Modes: Passive / Bi-amp
Crossover Frequency: 1.1 kHz
Power Rating: Passive Full-Range 800 W / 1600 W / 3200 W, 2 hrs
1
(Continuous / Program / Peak) Bi-amp LF: 800 W / 1600 W / 3200 W, 2 hrs
1
Bi-amp HF: 75 W / 150 W / 300 W, 2 hrs
1
Maximum SPL: 127 dB SPL continuous (133 dB SPL peak)
2
System Sensitivity (1w @ 1m): 98 dB SPL
LF Driver: 1 x JBL 2265H, 380 mm (15 in) Differential Drive
®
woofer 8 Ohms
HF Driver: 1 x JBL 2452H, 100 mm (4.0 inch) diameter voice coil, 38 mm (1.5 inch) exit,
neodymium magnet compression driver 8 Ohms
Nominal Impedance: 8 Ohms Full-Range Passive
Active Tunings: Settings available at http://www.jblpro.com/tunings/index.htm
Enclosure: Symmetrical stage monitor, 15/18 mm, Birch plywood.
Transport: 2x Integrated handle / input cup
Finish: Black DuraFlex™ finish
Grille: Powder coated, black, 16 gauge perforated steel with acoustically transparent
black screen backing.
Input Connectors: Neutrik
®
Speakon
®
NL-4 (x2), one on each end
Dimensions (H x W x D): 629 mm x 432 mm x 324 mm (375 mm stage height)
24.75 in x 17 in x 12.75 in (14.75" stage height)
Net Weight: 21 kg (46.0 lb)
FUNCTIONAL BLOCK DIAGRAM
1.
IEC standard, full bandwidth pink noise with 6 dB crest factor for specified period
2.
Calculated based on power rating and sensitivity.
JBL continually engages in research related to product improvement. Some materials, production methods and design refinements are introduced
into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect
from its published description, but will always equal or exceed the original design specifications unless otherwise stated.
-
+
+
-
HIGH
FREQ
HIGH
FREQ
+
-
+
-
LOW
FREQ
LOW
FREQ
1+
1+
1-
1-
2-
2-
2+
2+
1+
1+
1-
1-
2-
2-
2+
2+
1+
1+
1-
1-
2-
2-
2+
2+
1+
1+
1-
1-
2-
2-
2+
2+
NL4
IN / THRU
NL4
IN / THRU
NL4
IN / THRU
NL4
IN / THRU
HPF
PASSIVE
MODE
BI-AMP
MODE
LPF
Serial No.
VRX915M
BI-AMP
±1 LF: 8
±2 HF: 8
W
W
PASSIVE
±1 IN: 8
±2 N/C
W
JBL PROFESSIONAL
Northridge, CA USA
Made in USA
VRX900
BI-AMP
PASSIVE
13
VRXpassive_UG_081808 copy.qxp 8/18/08 11:37 AM Page 13
