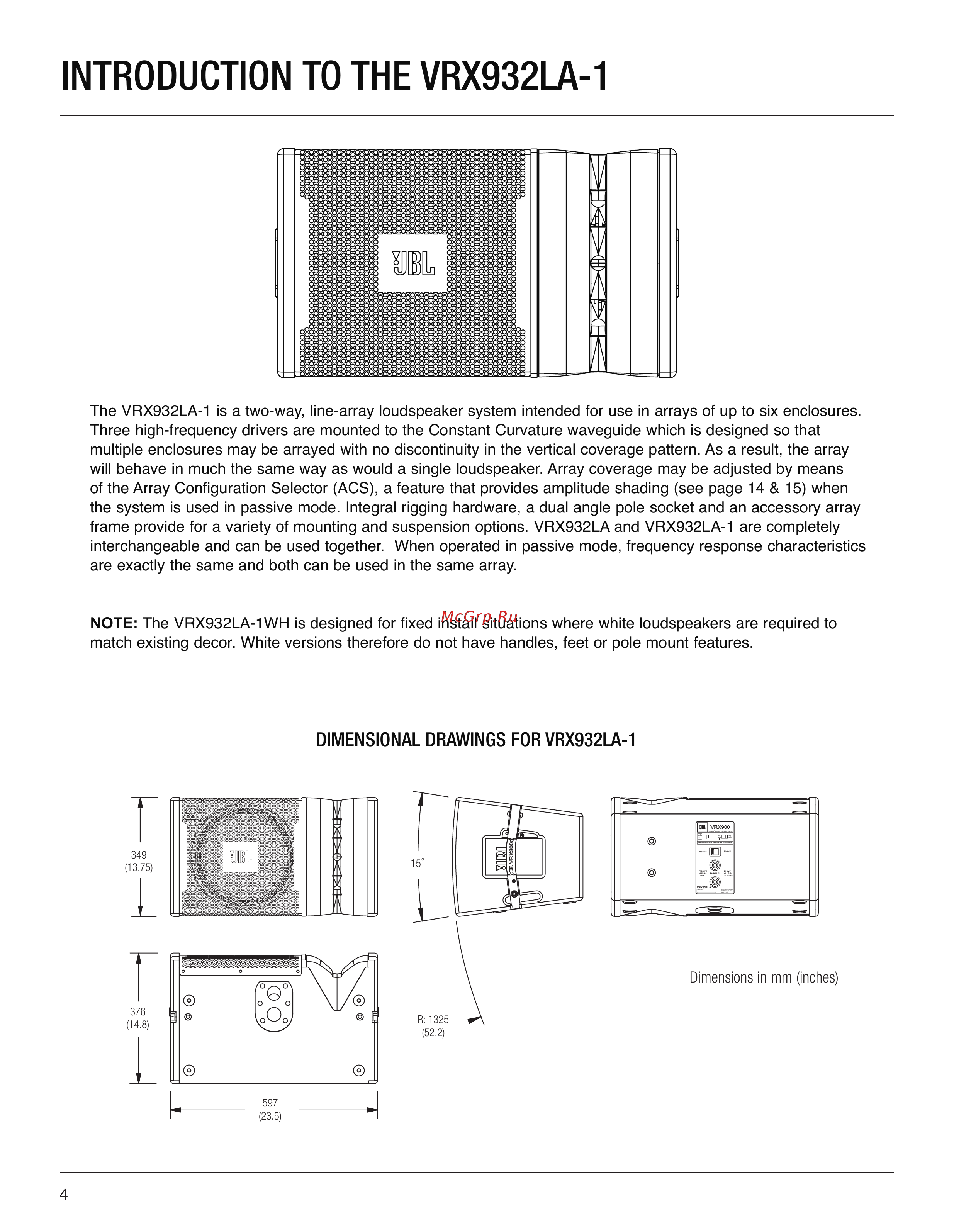

INTRODUCTION TO THE VRX932LA-1
The VRX932LA-1 is a two-way, line-array loudspeaker system intended for use in arrays of up to six enclosures.
Three high-frequency drivers are mounted to the Constant Curvature waveguide which is designed so that
multiple enclosures may be arrayed with no discontinuity in the vertical coverage pattern. As a result, the array
will behave in much the same way as would a single loudspeaker. Array coverage may be adjusted by means
of the Array Configuration Selector (ACS), a feature that provides amplitude shading (see page 14 & 15) when
the system is used in passive mode. Integral rigging hardware, a dual angle pole socket and an accessory array
frame provide for a variety of mounting and suspension options. VRX932LA and VRX932LA-1 are completely
interchangeable and can be used together. When operated in passive mode, frequency response characteristics
are exactly the same and both can be used in the same array.
NOTE: The VRX932LA-1WH is designed for fixed install situations where white loudspeakers are required to
match existing decor. White versions therefore do not have handles, feet or pole mount features.
DIMENSIONAL DRAWINGS FOR VRX932LA-1
JBL PROFESSIONAL
Northridge, CA USA
Made in USA
Serial No.
BI-AMP
PASSIVE
PARALLEL
VRX932LA
BI-AMP
±1 LF: 8
±2 HF: 6
W
W
PASSIVE
±1 IN: 6
±2 N/C
W
Single
Speaker
or
Short
Throw
Mid
Throw
Long
Throw
Array Configuration Selector - HF Output Level
Equipped with Differential Drive
Transducer Technology U.S. PATENT 5,748,760
Dimensions in mm (inches)
349
(13.75)
376
(14.8)
597
(23.5)
R: 1325
(52.2)
15
o
4
VRXpassive_UG_081808 copy.qxp 8/18/08 11:37 AM Page 4
