Chapter 1. 1-7

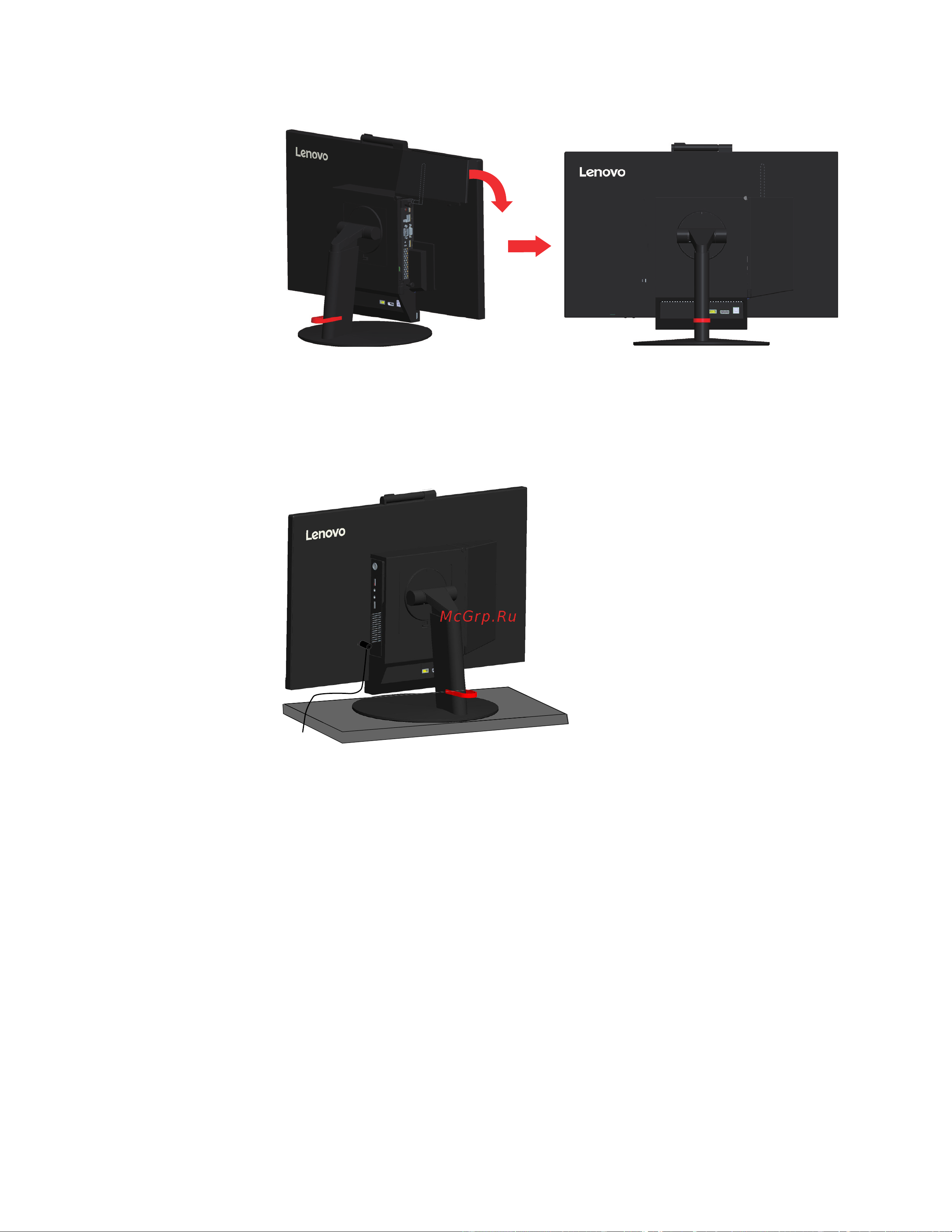

3. Pivot the cable cover as shown to the closed position.

Part 4: Install the Kensington-style cable lock (optional).

With the key of the Kensington-style cable lock, attach the lock to the security-lock slot on the

rear panel of your computer as shown. The lock secures your monitor to a desk, table, or other

non-permanent fixture. It also blockV the Tiny so that the Tiny cannot be removed from the

monitor
