Placement and Mounting

Placement

A If your TV is placed on a table, you can place the

unit on the table directly in front of the TV stand,

centered with the TV screen.

B If your TV is attached to a wall, you can mount

the unit on the wall directly below the TV screen.

900 mm / 35.4”

Wall Mounting (if using option-B)

Note:

- Installation must be carried out by qualied

personnel only. Incorrect assembly can result in

severe personal injury and property damage (if

you intend to install this product yourself, you

must check for installations such as electrical

wiring and plumbing that may be buried inside

the wall). It is the installer’s responsibility to

verify that the wall will safely support the total

load of the unit and wall brackets.

- Additional tools (not included) are required for

the installation.

- Do not overtighten screws.

- Keep this instruction manual for future reference.

- Use an electronic stud nder to check the wall

type before drilling and mounting.

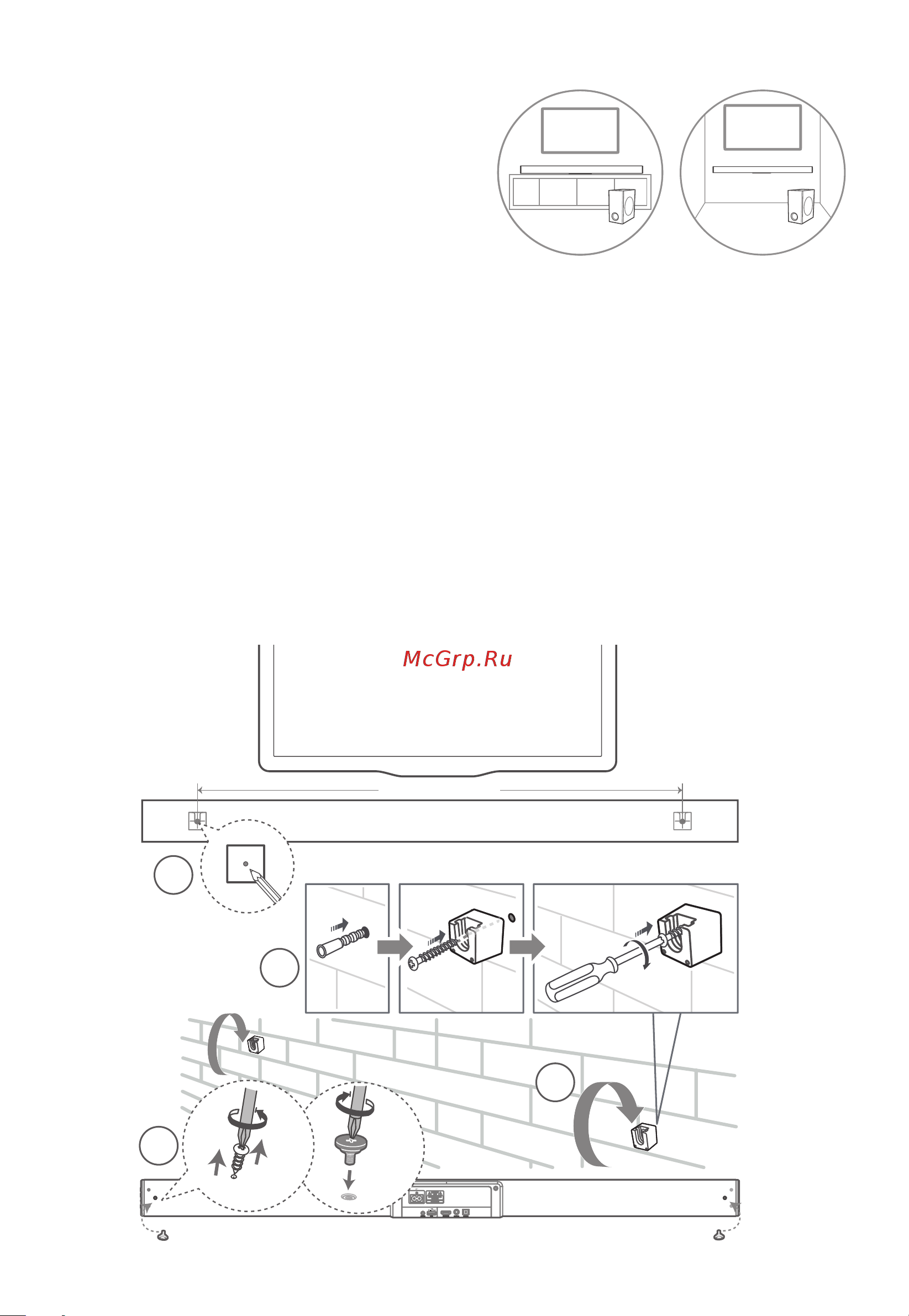

1. Drill 2 parallel holes (Ø 5.5-6 mm each

according to wall type) in the wall. The distance

between the holes should be 900mm.

2. Insert the supplied wall anchors into 2 screw

holes on the wall. Insert the supplied wall

bracket screws through the wall brackets into

the wall anchors. Fix and tighten the screws on

the wall.

3. Remove the screws then install the wall

mounting screws into the back of the unit.

4. Hang the unit on the wall mount brackets.
