Filter and Cyclone Cleaning

Hold the cyclone in one hand, pinch the "UP" logo with the other hand, and take out lter (Figure 5).Do

Not tap the lter in reverse side in case of lter clog(Figure 6).

lean the cyclone metal lter with the attached mini brush(Figure 7).

After cleaning lter, remove the two screws on the cyclone cover with a screwdriver to separate

the cyclone cover from the cyclone to clean the internal air duct. After cleaning, assemble parts

in reverse order. (Figure 8).

After cleaning dust cup ,lter and cyclone, assemble in reverse order. Rotate the dust cup cover

assembly into the dust cup.After hearing a "click" and the dot mark is aligned with the lock

position that is assembled in place.

Notice:

1.Do Not miss the lter!

2.Use water or neutral reagents to clean dust cup and wipe with dry cloths. Do not wash the lter until it is

necessary. Make sure the lter and dust cup are completely dry before another use.

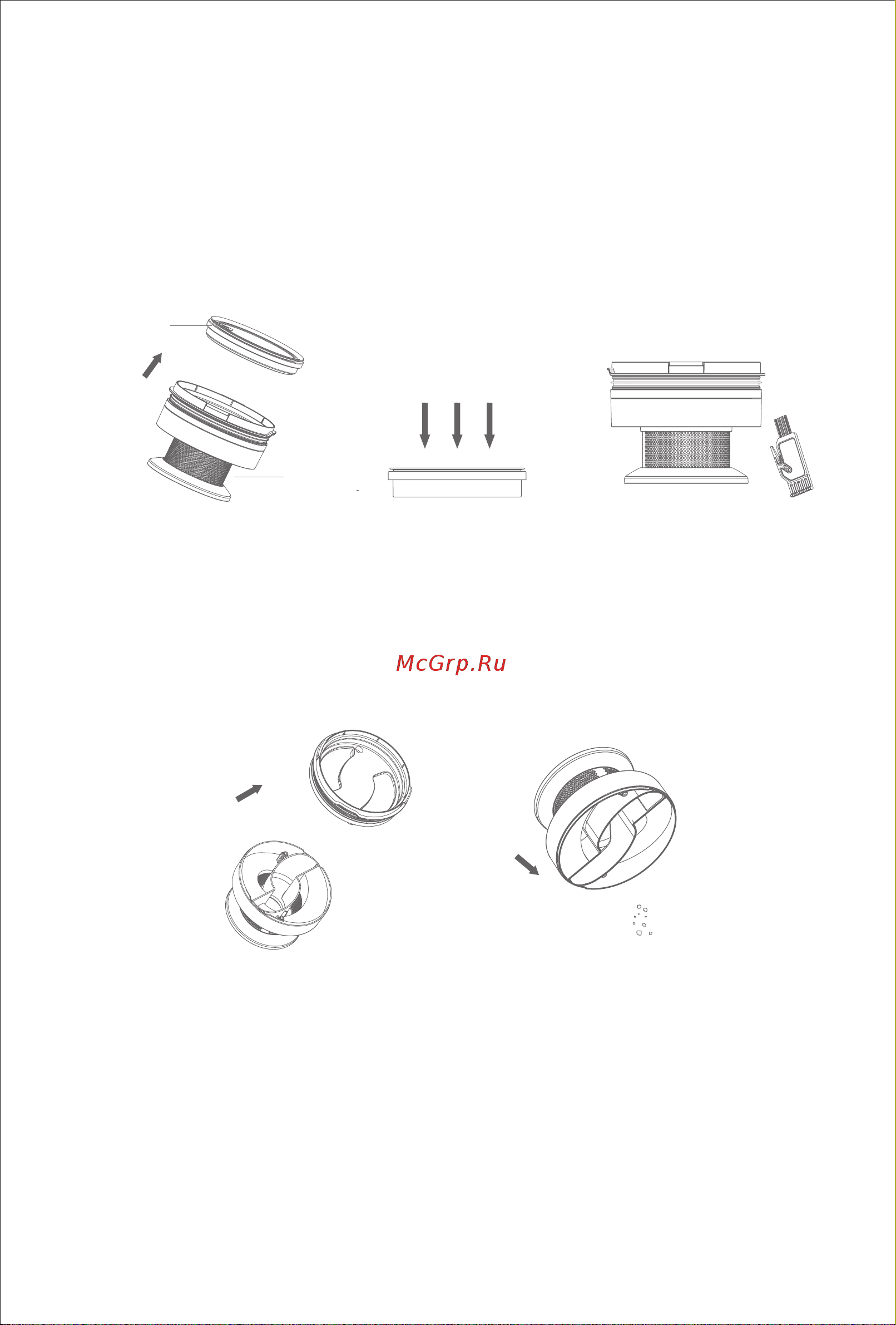

Figure 5

Figure 8

Figure 6 Figure 7

Cyclone

MIF lter
